CONNECTING ROD 2001-2018 KTM HUSQVARNA TC SX 50 PRO
Heavy-duty connecting rod rebuild kit manufactured by Dirt Racing. Features a strategically designed big end with scalloping and vent slots to reduce high-rpm bearing distortion. Crankpins are made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc, and utilize caged needle roller bearings for improved durability at high rpm. This kit includes the connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers. Designed as a direct OEM replacement and factory tested for reliability. Big End Bearing: 16x22x11.75 mm, Big End Bore: 22.00 mm, Big End Width: 11.80 mm, Centre to Centre: 85.00 mm, Pin Diameter: 16.00 mm, Pin Length: 36.00 mm, Small End Bore: 15.00 mm, Washer Thickness: 0.85 mm. Cross-reference OEM Part Numbers: MX-09075, HOTRODS 8135, WOSSNER P2053, PROX 03.6011, 45230015000, P2053.
- SKU
- 56-869.DR
- Brand
- Dirt Racing
- Availability
- Out of Stock
FULL DESCRIPTION

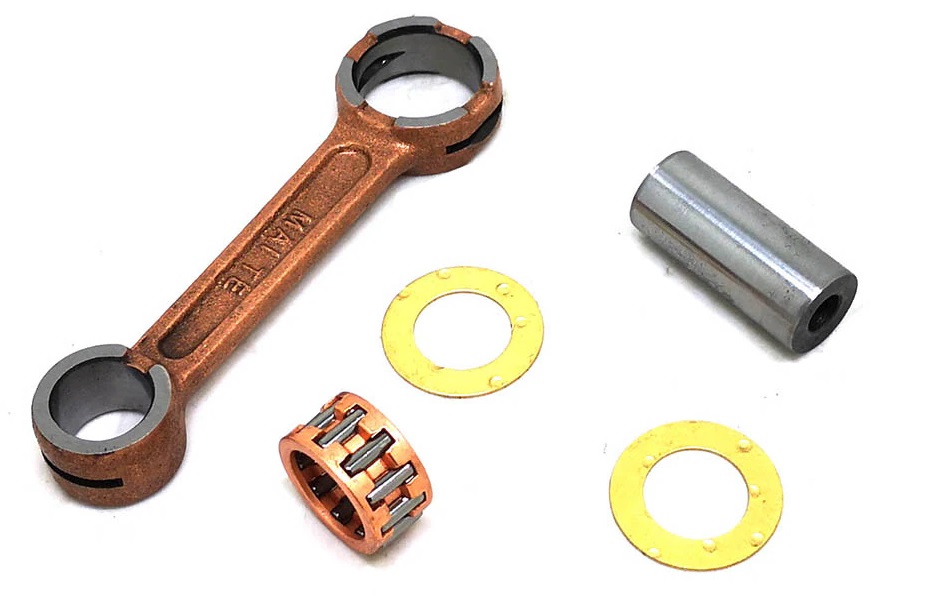

Connecting Rod Rebuild Kit for KTM and Husqvarna 50cc
This heavy-duty connecting rod rebuild kit is engineered for high-performance KTM, Husqvarna, and GasGas 50cc models. Manufactured with robust, high-strength materials, this kit is designed to meet or exceed original equipment manufacturer (OEM) specifications, ensuring reliable performance and extended durability for your engine.
Key Features:
- Optimized Big End Design: Features strategic scalloping and vent slots in the big end to minimize bearing distortion at high revolutions per minute (RPM).
- High-Strength Crankpins: Crankpins are crafted from hot-rolled ASTM 4115 steel, case-hardened to a Rockwell hardness of 58-62 Rc for exceptional toughness.
- Durable Bearings: Utilizes caged needle roller bearings for enhanced durability and sustained performance under high RPM conditions.
- Complete Assembly: The kit includes all essential components for a full connecting rod assembly: connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.
- Direct Replacement: Designed as a direct replacement for your original connecting rod, ensuring straightforward installation.
- Factory Tested: Every kit undergoes factory testing to guarantee reliability and performance.
Approximate Specifications:
- Big End Bearing Dimensions: 16mm x 22mm x 11.75mm
- Big End Bore Diameter: 22.00mm
- Big End Width: 11.80mm
- Centre to Centre Length: 85.00mm
- Crankpin Diameter: 16.00mm
- Crankpin Length: 36.00mm
- Small End Bore Diameter: 15.00mm
- Thrust Washer Thickness: 0.85mm
