CONNECTING ROD 81-84 ATC250, HOT RODS 8160 HONDA ATV, CR179
High-quality connecting rod kit manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength. Features strategically placed side scalloping and vent slots to reduce high RPM bearing race distortion. Double-forged rods improve grain flow and dimensional consistency. Shot-peened and double-honed for enhanced strength under heavy loads. Double-drilled small ends provide improved lubrication and cooling for the wrist pin bearing. Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce wear. Complete kit includes all necessary components for a reliable rebuild. Specifications in mm: Pin Length 56.30, Big End Bore 31.00, Pin Diameter 24.00, Big End Width 16.90, Small End Bore 22.00, Big End Bearing 24x31x17, Small End Width 19.90, Center to Center 125.40, Washer Thickness 1, Small End Bearing 18x22x22. Cross-reference OEM part numbers: Wossner P2043, Vesrah VA-1006, Honda 13201-430-300, 13201-KA4-700, Other CR179. Part Number 56-148.HR. Manufacturer Hot Rods.
- SKU
- 56-148.HR
- Brand
- Hot Rods
- Availability
- In Stock (2)
FULL DESCRIPTION

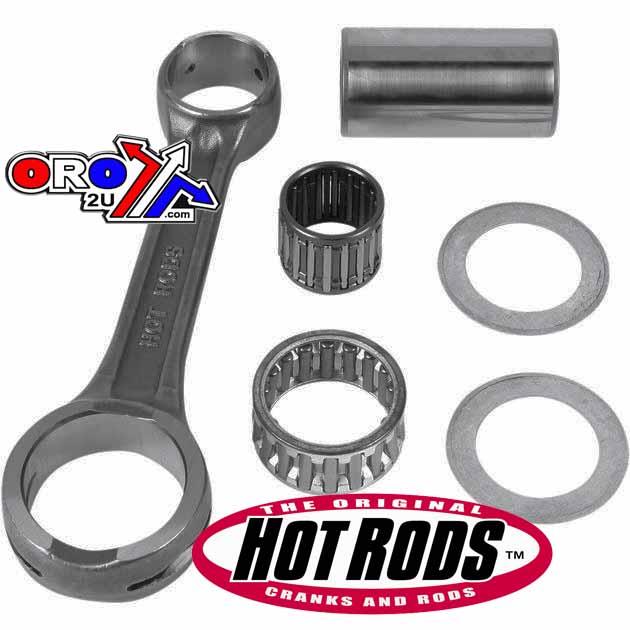

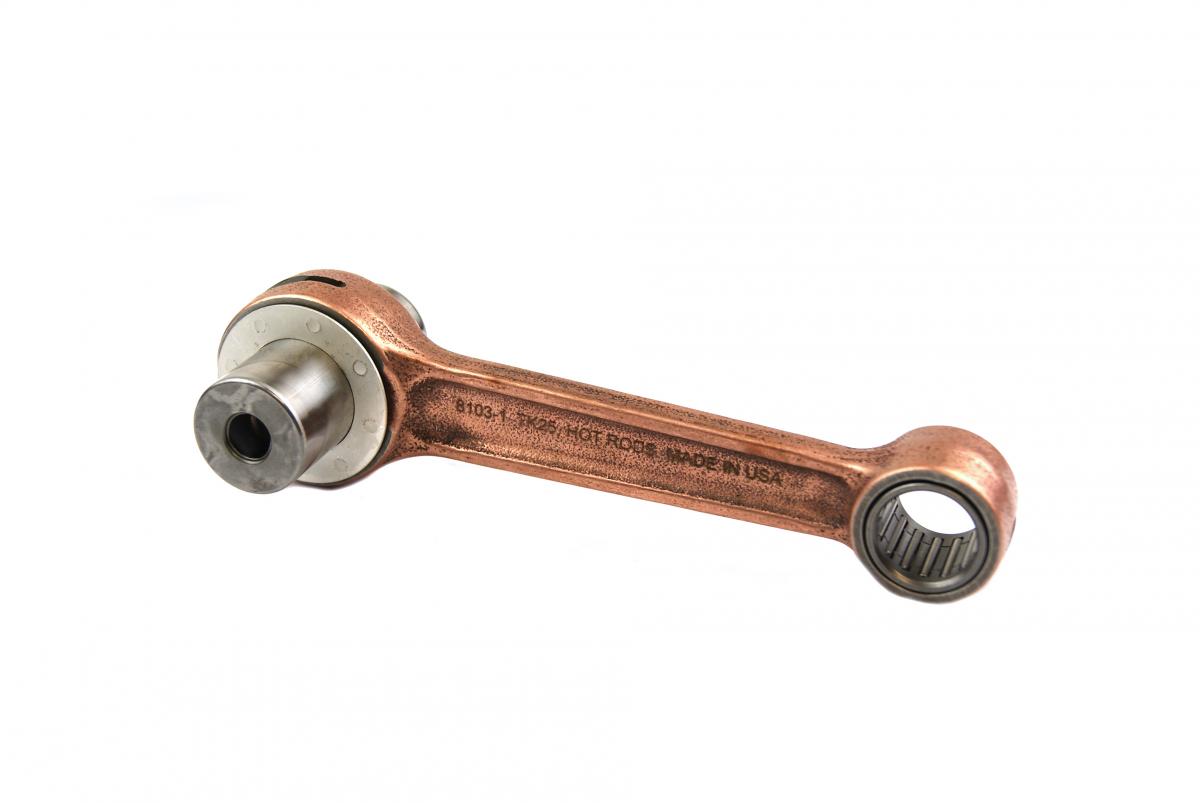

Hot Rods Connecting Rod Kit for Honda ATC250R
Enhance your engine's performance and reliability with this high-quality connecting rod kit from Hot Rods. Engineered to meet or exceed original equipment manufacturer specifications, this kit is an ideal choice for engine rebuilds, providing the confidence and durability you need.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel for exceptional strength.
- Case-hardened to a hardness of 58–62 Rc, ensuring superior durability.
- Features strategically placed side scalloping and vent slots designed to minimize distortion of the bearing race at high RPMs.
- Double-forged rods promote improved grain flow and consistent dimensions for enhanced performance.
- Shot-peened and double-honed treatments further strengthen the rod to withstand heavy loads.
- Double-drilled small ends are incorporated to enhance lubrication and cooling of the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings that boost lubricity and reduce wear.
- This comprehensive kit contains all the essential components required for a dependable engine rebuild.
Technical Specifications (in mm):
- Pin Length: 56.30
- Big End Bore: 31.00
- Pin Diameter: 24.00
- Big End Width: 16.90
- Small End Bore: 22.00
- Big End Bearing: 24x31x17
- Small End Width: 19.90
- Center to Center Length: 125.40
- Washer Thickness: 1
- Small End Bearing: 18x22x22
Cross-Reference Information:
- Wossner Part Number: P2043
- Vesrah Part Number: VA-1006
- Honda OEM Part Numbers: 13201-430-300, 13201-KA4-700
- Other Equivalent: CR179
