CONNECTING ROD KIT 98-19 KX80, HOT RODS 8147 KX80 KX85 KX100
Hot Rods Connecting Rod Kit 56-878.HR. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability. Advanced design includes side scalloping and vent slots to minimize high-rpm bearing race distortion. Double-forged construction improves grain flow and ensures dimensional consistency. Shot-peened and double-honed rods provide superior strength under heavy loads. Double-drilled small ends optimize lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Big End Bearing (mm): 22x28x14. Big End Bore (mm): 28.00. Big End Width (mm): 13.98. Center to Center (mm): 92.00. Pin Diameter (mm): 22.00. Cross-Reference OEM Part Numbers: KAWASAKI: 13032-1230, SUZUKI: K1303-21230, HotRod: 8147. Part Number: 56-878.HR.
- SKU
- 56-878.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION

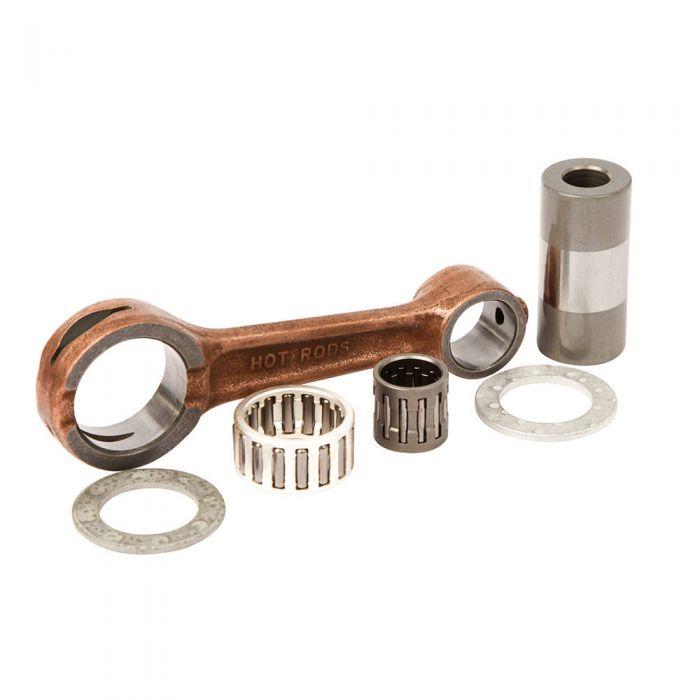

Hot Rods Connecting Rod Kit
This high-quality connecting rod kit is engineered as a durable replacement part for select Kawasaki and Suzuki motorcycles. Manufactured with precision, it is designed to minimize high-rpm bearing race distortion, ensuring reliable performance even under demanding conditions.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and longevity.
- Features advanced side scalloping and vent slots to reduce high-rpm bearing race distortion.
- Double-forged construction enhances grain flow and guarantees dimensional consistency.
- Shot-peened and double-honed rods offer exceptional strength for heavy loads.
- Double-drilled small ends promote optimal lubrication and cooling for the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings to improve lubricity and minimize friction.
- This complete kit contains the rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Big End Bearing (mm): 22x28x14
- Big End Bore (mm): 28.00
- Big End Width (mm): 13.98
- Center to Center (mm): 92.00
- Pin Diameter (mm): 22.00
Cross-Reference OEM Part Numbers:
- KAWASAKI: 13032-1230
- SUZUKI: K1303-21230
- HotRod: 8147
