PISTON KIT 00-02 RM250 66.40 C, WOSSNER 8059DC SUZUKI MX
Wossner piston kit with a 66.42mm bore and 66.36mm actual piston size. Features forged construction for strength and wear resistance, optimal heat dissipation, elliptical design for even thrust load distribution, and helps prevent piston collapse. Manufactured to high standards in Germany. Specifications include a 72.00mm stroke, 249cm³ display volume, 0.06mm clearance, 2-stroke compression ratio, and 38.00mm compression height. Cross-reference OEM part numbers: Piston Kit 8059DC, Lock CW18, Pin WP033, Ring Set RSB6640 x 2, Rod P2026. Part No: 56-W756.C.WO. Weight: 322 grams.
- SKU
- 56-W756.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

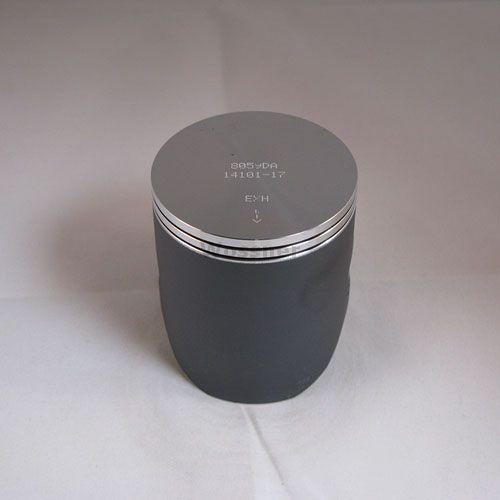

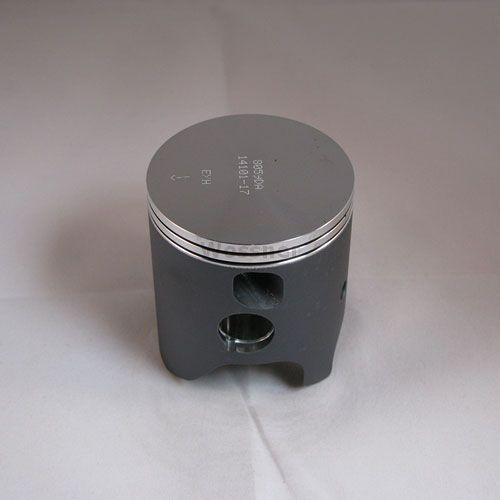

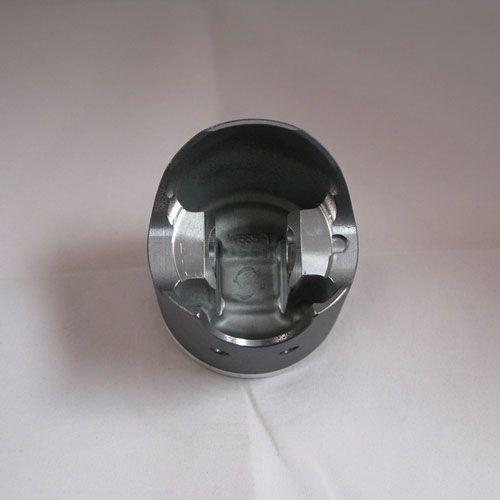

Wossner Forged Piston Kit for Suzuki RM250
Enhance the performance and durability of your Suzuki RM250 with this premium Wossner forged piston kit. Engineered for demanding 2-stroke applications, this kit provides superior strength, exceptional heat dissipation, and a precise fit for optimal engine function.
Key Features:
- Forged Construction: Ensures increased strength and wear resistance for extended engine life.
- Optimized Heat Dissipation: Designed to efficiently transfer heat from the combustion chamber to the cylinder, preventing overheating.
- Elliptical Design: Distributes thrust loads evenly during expansion, reducing localized pressure and preventing piston collapse.
- Precision Engineering: Manufactured to exacting standards in Germany for reliable performance.
Specifications:
- Bore: 66.42 mm
- Actual Piston Size: 66.36 mm
- Stroke: 72.00 mm
- Displacement Volume: 249 cm³
- Clearance: 0.06 mm
- Compression Ratio: 2-stroke (Wossner and OEM compatible)
- Compression Height: 38.00 mm

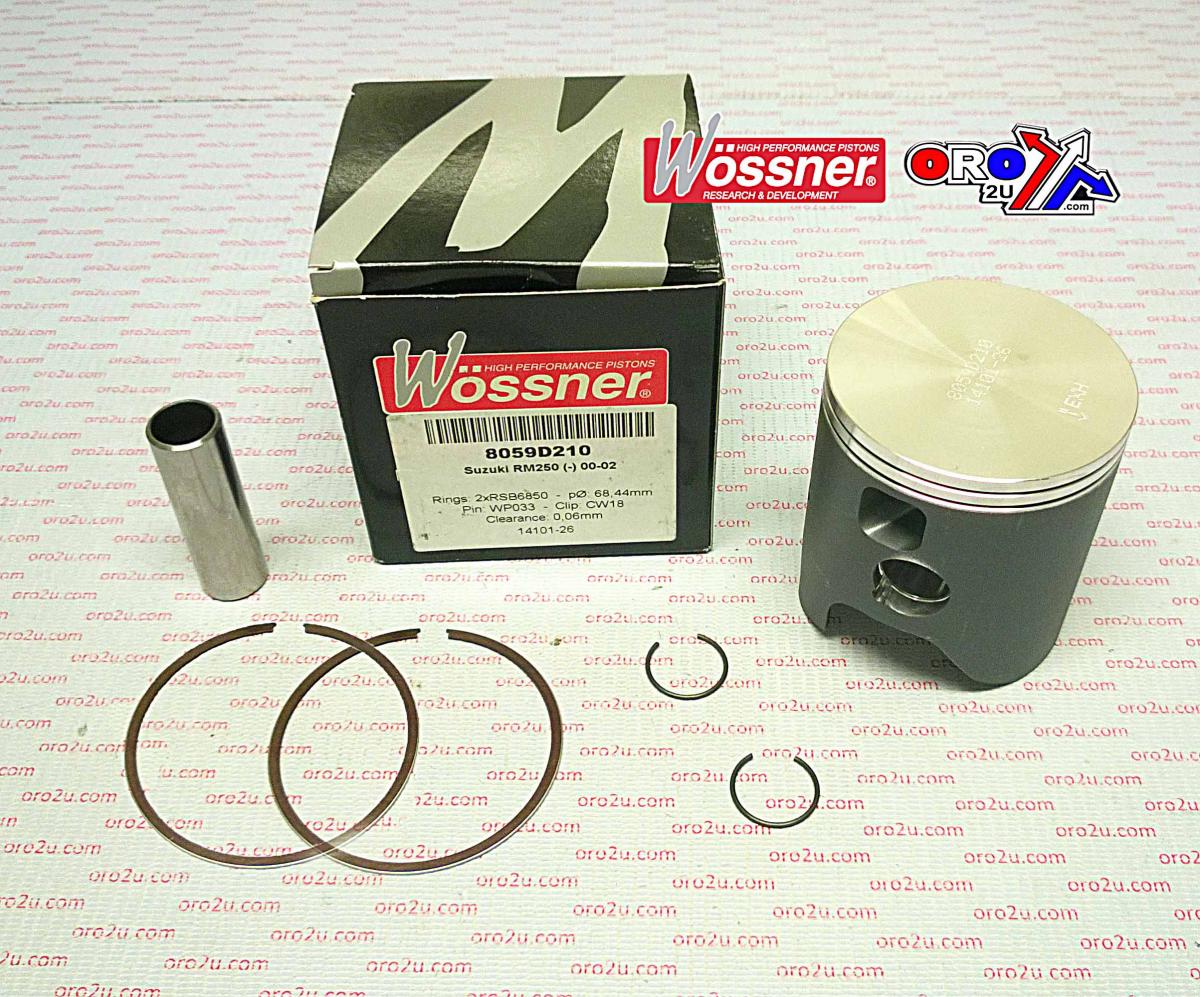

Kit Contents:
- Piston
- Lock (CW18)
- Pin (WP033)
- Ring Set (RSB6640 x 2)
