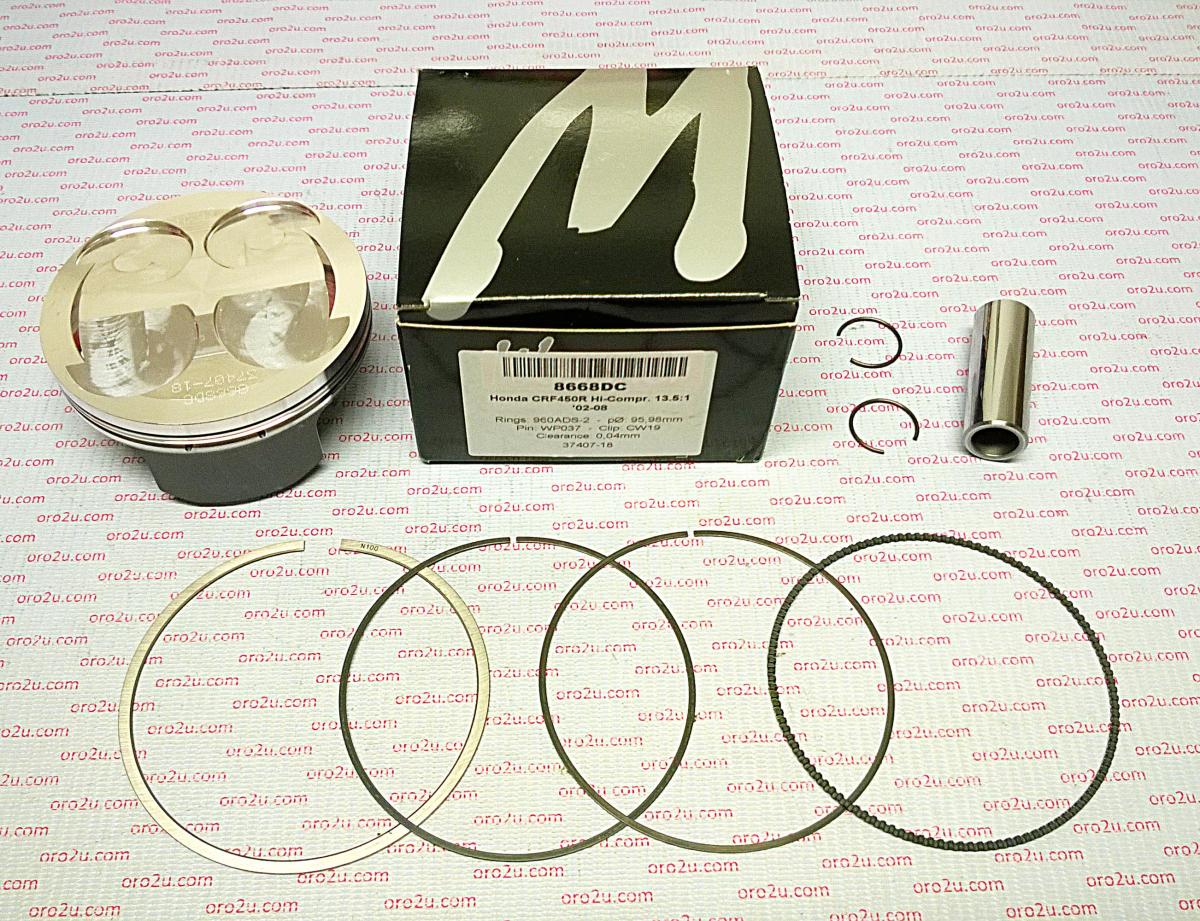

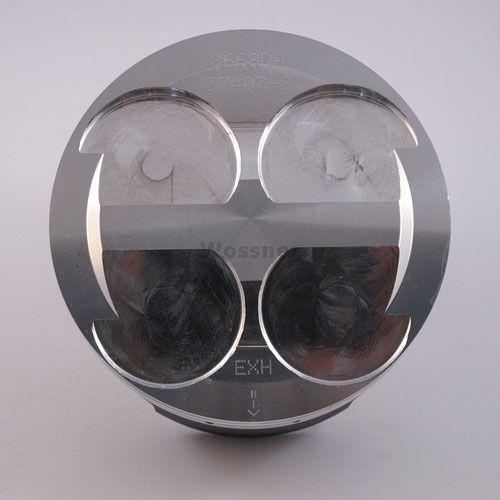

PISTON KIT 02-08 CRF450R HC 96, FORGED WOSSNER 8668DA
Wossner 96.00mm high-compression forged piston kit features an elliptical design for uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. Manufactured in Germany for precision and reliability. Bore Size: 96.00mm, Actual Bore Diameter: 95.96mm, Displacement: 449 cm³, Stroke: 62.10mm, Clearance: 0.04mm, Wossner Compression Ratio: 13.50:1, OEM Compression Ratio: 12.00:1, Dome Volume: +3.50 cm³, Compression Height: 24.00mm. Includes Gasket Part Number D4006 / D4007, Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 960ADS, Rod Part Number P4026. Cross-reference OEM Part Numbers: 4823M09600. Wossner Part No: 8668DA.
- SKU
- 56-W4822.A.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit 96.00mm
Upgrade your engine's performance with the Wossner forged high-compression piston kit. Engineered for superior strength and longevity, this piston is manufactured in Germany to exacting standards. Its advanced design promotes optimal heat transfer for efficient combustion chamber cooling and features an elliptical profile to ensure uniform bearing surfaces, distribute thrust loads evenly, and prevent piston collapse.
Key Features:
- High-compression design for increased engine power output.
- Forged construction for exceptional strength and durability.
- Optimized heat transfer for effective cooling.
- Elliptical design to prevent piston collapse and ensure even load distribution.
- Two-ring design for improved sealing and reduced friction.
- Precision manufacturing in Germany.
Specifications:
- Bore Size: 96.00mm
- Actual Bore Diameter: 95.96mm
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +3.50 cm³
- Compression Height: 24.00mm
