PISTON KIT 03-04 YZF450 98.00, FORGED WOSSNER 8562D300
Wossner forged piston kit with superior strength and heat transfer efficiency. Engineered with an elliptical shape for uniform bearing surfaces under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for high-performance applications. Features forged construction, optimized heat transfer, elliptical design for even thrust load distribution, and German manufacturing. Specifications: Bore Size 97.96mm (+3.00mm oversize = 98mm), Displacement 449 cm³, Stroke 63.40mm, Clearance 0.04mm, Compression Ratio OEM (12.50:1), Dome Volume -9.90 cm³, Compression Height 23.50mm. Included Components: Piston Kit (8562D300), Piston Clip CW18, Piston Pin WP053, Piston Ring 980ADS-2.
- SKU
- 56-W4785_300
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION

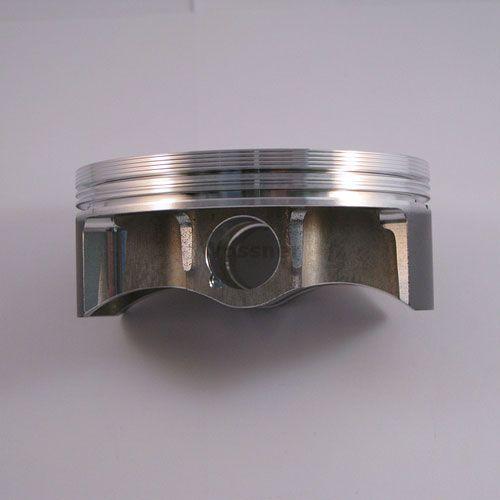

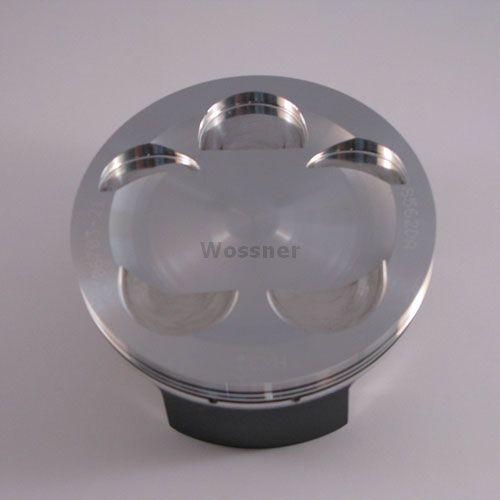

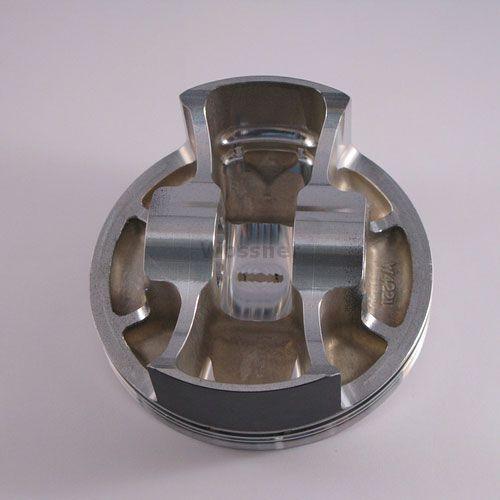

Wossner Forged Piston Kit for High-Performance Engines
Enhance your engine's performance and durability with this Wossner forged piston kit. Engineered in Germany, this kit is designed for superior strength and efficient heat transfer, crucial for demanding applications. The piston features an elliptical shape to ensure uniform bearing surfaces even under extreme heat, effectively reducing localized pressure and preventing piston collapse for reliable operation.
Key Features:
- Forged construction for exceptional durability and strength.
- Optimized heat transfer for improved combustion efficiency.
- Elliptical design promotes even thrust load distribution.
- Precision manufactured in Germany.
Specifications:
- Bore Size: 97.96mm (3.00mm oversize, resulting in 98.00mm)
- Displacement: 449 cm³
- Stroke: 63.40mm
- Clearance: 0.04mm
- Compression Ratio: OEM (12.50:1)
- Dome Volume: -9.90 cm³
- Compression Height: 23.50mm

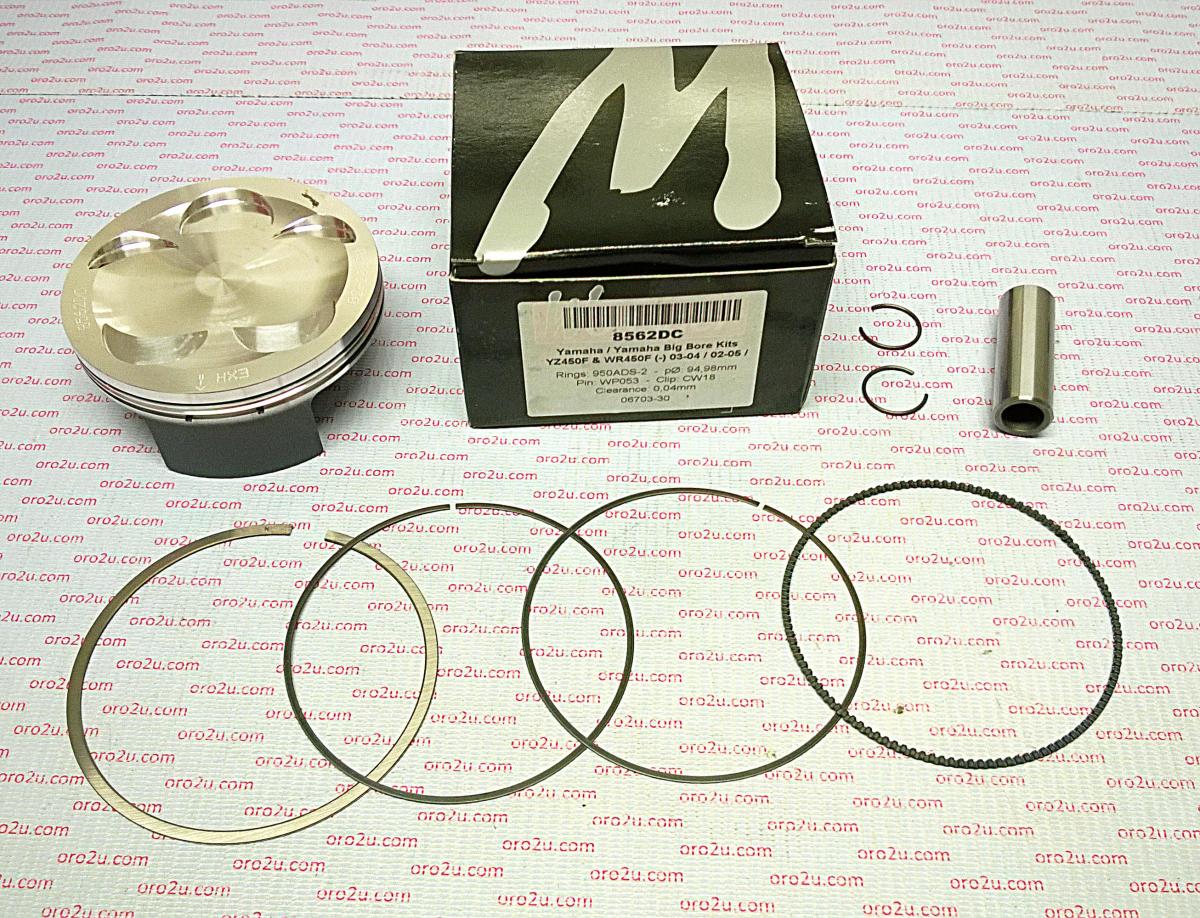

Included Components:
- Piston Kit (Part Number: 8562D300)
- Piston Clip: CW18
- Piston Pin: WP053
- Piston Ring: 980ADS-2
