PISTON KIT 09-15 KTM65 SX 45.0, FORGED WOSSNER 8241DB
Wossner forged piston kit with a 45.01mm bore (44.97mm) for KTM SX65 (2009-2015). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features include forged piston for increased strength and durability, optimized heat transfer for improved performance, elliptical design ensuring uniform bearing surface under heat expansion, and even thrust load distribution to prevent piston collapse. Specifications: Bore Size 45.01mm (44.97mm), Part Number 8241DB, Lock Part Number CW12, Pin Part Number WP091, Ring Set Part Number RSB4500, Displacement 63 cm³, Stroke 40.80mm, Clearance 0.04mm, Compression Ratio 2-stroke, Compression Height 21.60mm. Weight 114g.
- SKU
- 56-W313.B.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION

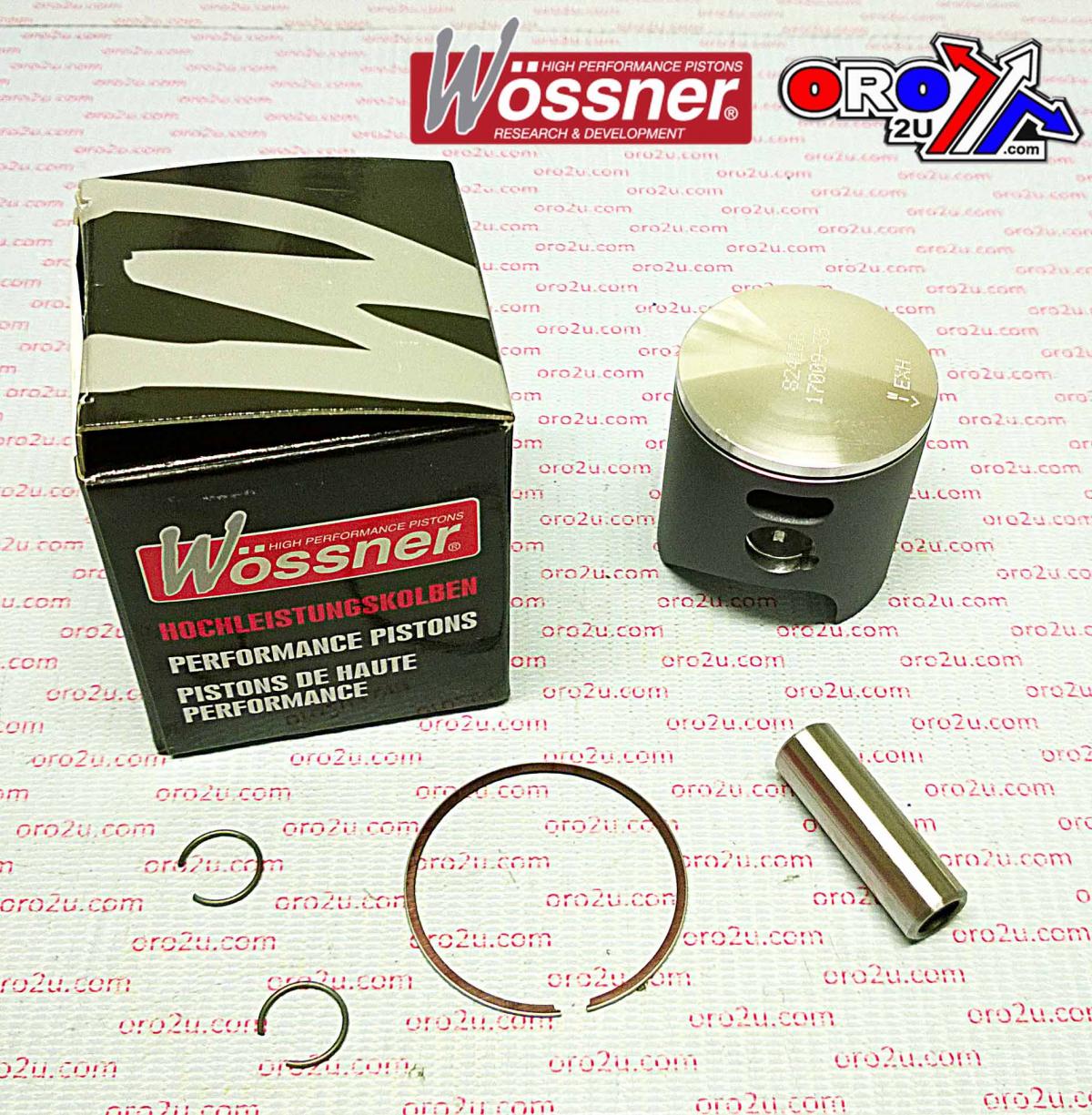

Wossner Forged Piston Kit 8241DB
Upgrade your performance with the Wossner Forged Piston Kit, engineered for superior strength and efficiency. This precision-crafted piston features a 45.01mm bore and is designed to optimize combustion and withstand demanding conditions. Manufactured in Germany, Wossner pistons are known for their exceptional quality and performance enhancement.
Key Features:
- Forged Construction: Provides enhanced strength and durability for longevity.
- Optimized Heat Transfer: Promotes efficient heat dissipation for improved performance.
- Elliptical Design: Ensures uniform bearing surface under thermal expansion, reducing stress.
- Even Thrust Load Distribution: Prevents localized pressure and piston collapse for reliable operation.
- German Engineering: Manufactured to exacting standards for quality and performance.
Specifications:
- Bore Size: 45.01mm (nominal 44.97mm)
- Part Number: 8241DB
- Lock Part Number: CW12
- Pin Part Number: WP091
- Ring Set Part Number: RSB4500
- Displacement: 63 cm³
- Stroke: 40.80mm
- Clearance: 0.04mm
- Compression Height: 21.60mm
- Compression Type: 2-stroke
