PISTON KIT 12-18 CRF150R 66.00, 8861DB WOSSNER
Wossner forged piston kit 8861DB is a +0.01mm oversized piston with a 66.01mm bore (measured at 65.96mm). It features a Teflon-coated skirt and precision-engineered forged construction for excellent durability, thermal performance, and a precise fit for high-revving four-stroke engines. Forged construction provides maximum strength and longevity. The elliptical design ensures even pressure distribution during thermal expansion, and it offers high-efficiency heat transfer from the combustion chamber to cylinder walls. The hard Teflon skirt coating enhances fit and bore conformity, reducing localised stress to prevent piston collapse. Made in Germany. Specifications include a bore of 66.01mm (measured 65.96mm), display volume of 149 cm³, stroke of 43.80mm, clearance of 0.05mm, compression height of 20.60mm, Wossner compression ratio of OEM, OEM compression ratio of 11.70:1, dome volume of -1.40 cm³. Part No. 56-W914.B.WO (Wossner 8861DB). Includes ring set 660XKS, lock P/N CW14, and pin P/N WP058.
- SKU
- 56-W914.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Piston Kit for Honda CRF150R
Upgrade your Honda CRF150R with this high-performance Wossner forged piston kit. Designed for demanding off-road use, this kit offers superior strength, durability, and thermal efficiency for your four-stroke engine.
Key Features:
Precision forged construction for maximum strength and longevity.
Elliptical piston design ensures optimal pressure distribution and reduces stress during thermal expansion.
Engineered for high-efficiency heat transfer, maintaining optimal operating temperatures.
Features a hard Teflon skirt coating for enhanced piston-to-cylinder wall conformity and reduced friction.
Minimizes localized stress points to prevent piston collapse under high loads.
Manufactured in Germany to exacting standards.
Specifications:
Bore Size: 66.01mm (measured at 65.96mm)
Displacement Volume: 149 cm³
Stroke: 43.80mm
Piston Clearance: 0.05mm
Compression Height: 20.60mm
Wossner Compression Ratio: OEM
OEM Compression Ratio: 11.70:1
Dome Volume: -1.40 cm³

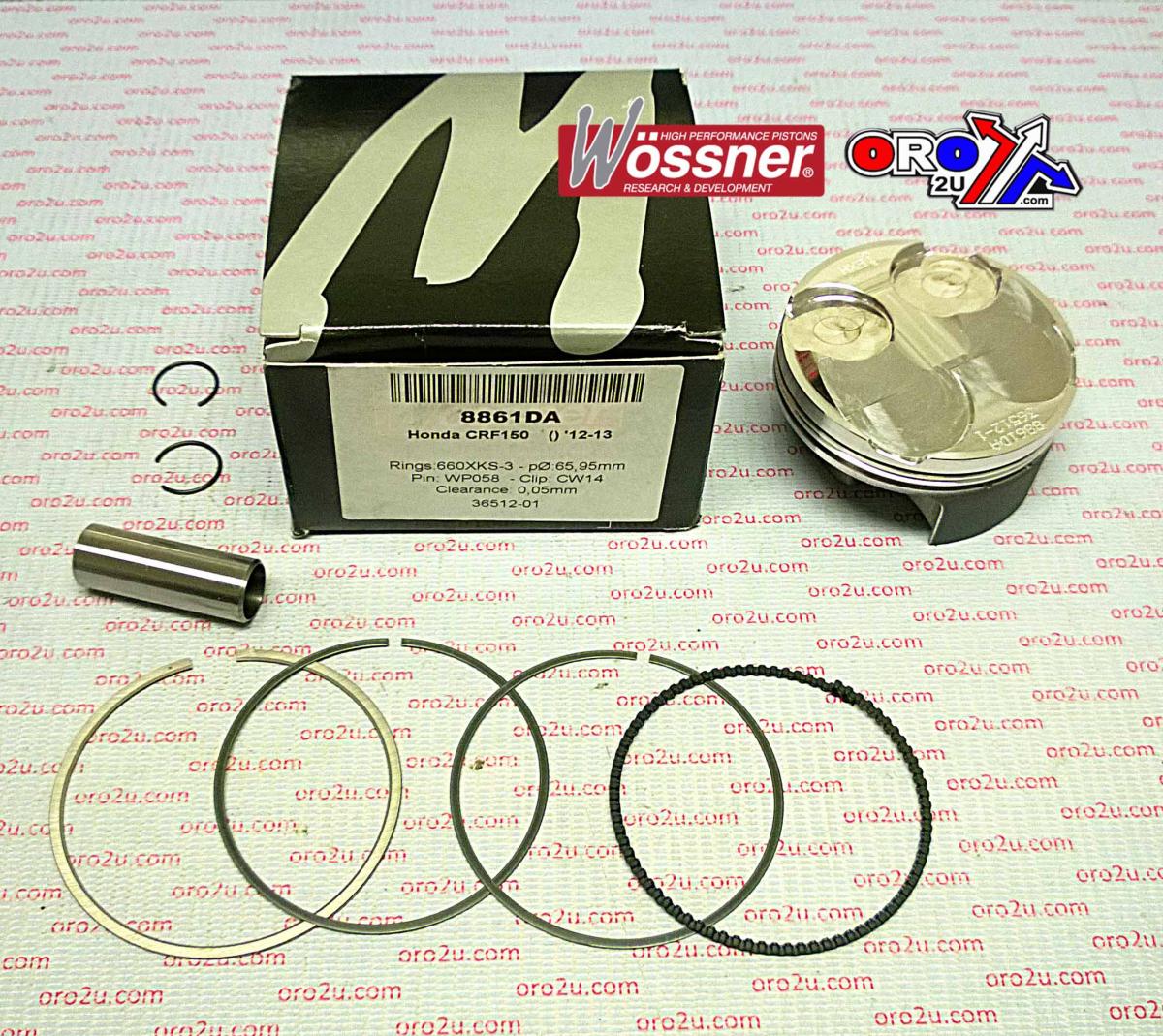

Includes: Ring Set (660XKS), Lock P/N (CW14), Pin P/N (WP058)
