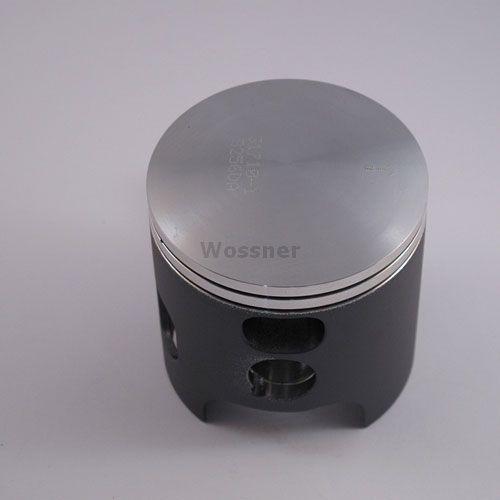

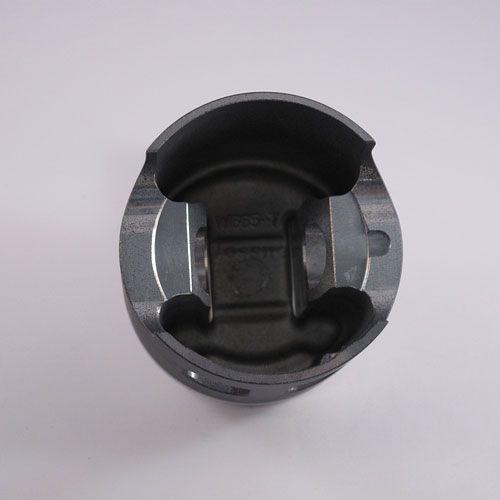

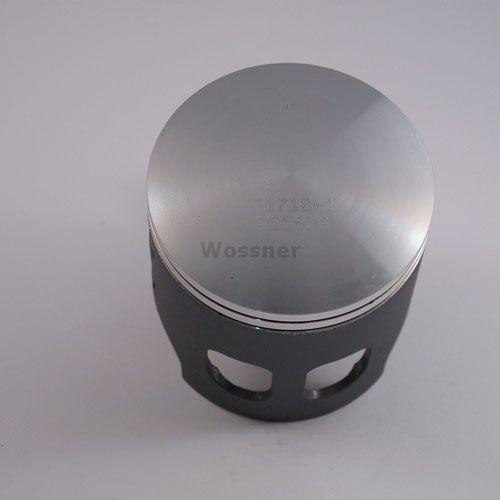

PISTON KIT 82-10 DT175 66.50, FORGED WOSSNER 8256D050

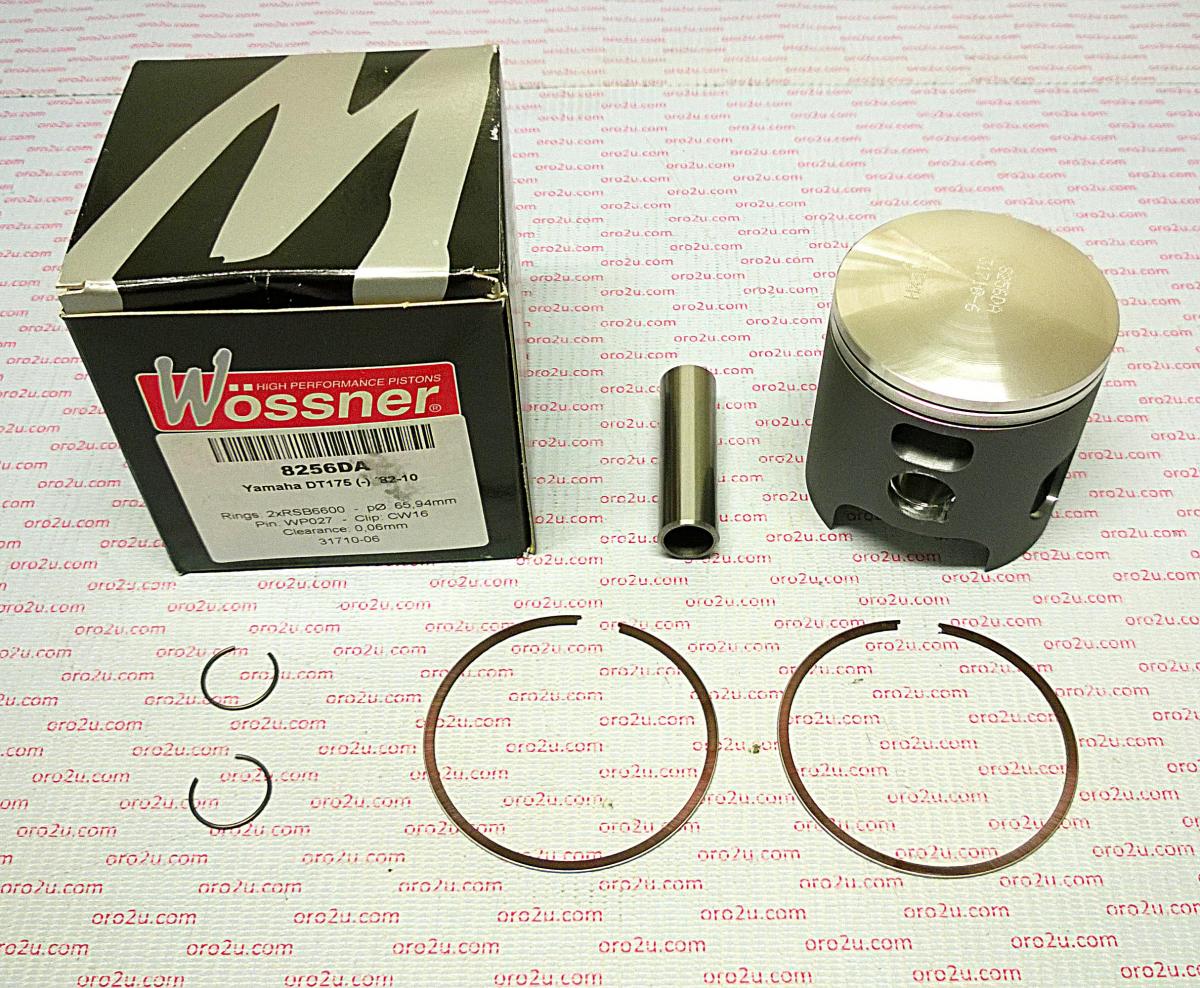

Wossner forged piston kit 8256D050. Bore size 66.50 mm, actual bore 66.44 mm, stroke 50.00 mm, clearance 0.06 mm, compression height 35.00 mm. Designed for 2-stroke engines. Forged construction for enhanced durability and strength. Optimized heat transfer for improved performance. Elliptical design for uniform bearing surface and reduced wear. Made in Germany. Wossner part number 8256D050. Lock part number CW16. Pin part number WP027. Ring set part number RSB6650 x 2.
- SKU
- 56-W375+0.50.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit for Yamaha DT175
This Wossner forged piston kit is engineered for enhanced performance and durability in Yamaha DT175 motorcycles. Manufactured in Germany, it features a robust forged construction for superior strength and efficient heat transfer, crucial for demanding 2-stroke engines. The innovative elliptical design ensures even load distribution across the bearing surface, minimizing localized pressure and reducing the risk of piston collapse for extended engine life.
Key Features
- Forged Construction: Provides exceptional durability and strength over cast pistons.
- Optimized Heat Transfer: Improves engine efficiency and performance.
- Elliptical Design: Creates a uniform bearing surface, reducing wear and preventing piston collapse.
- 2-Stroke Engine Specific: Tailored for the unique demands of 2-stroke powerplants.
- German Engineering: Manufactured to high-quality standards in Germany.
Specifications
- Bore Size: 66.50 mm
- Actual Bore: 66.44 mm
- Stroke: 50.00 mm
- Clearance: 0.06 mm
- Compression Height: 35.00 mm
- Compression Ratio: 2-stroke
Wossner Part Number
- 8256D050
