PISTON KIT 83-87 MTX125 56.00, WOSSNER 8024DA HONDA ROAD

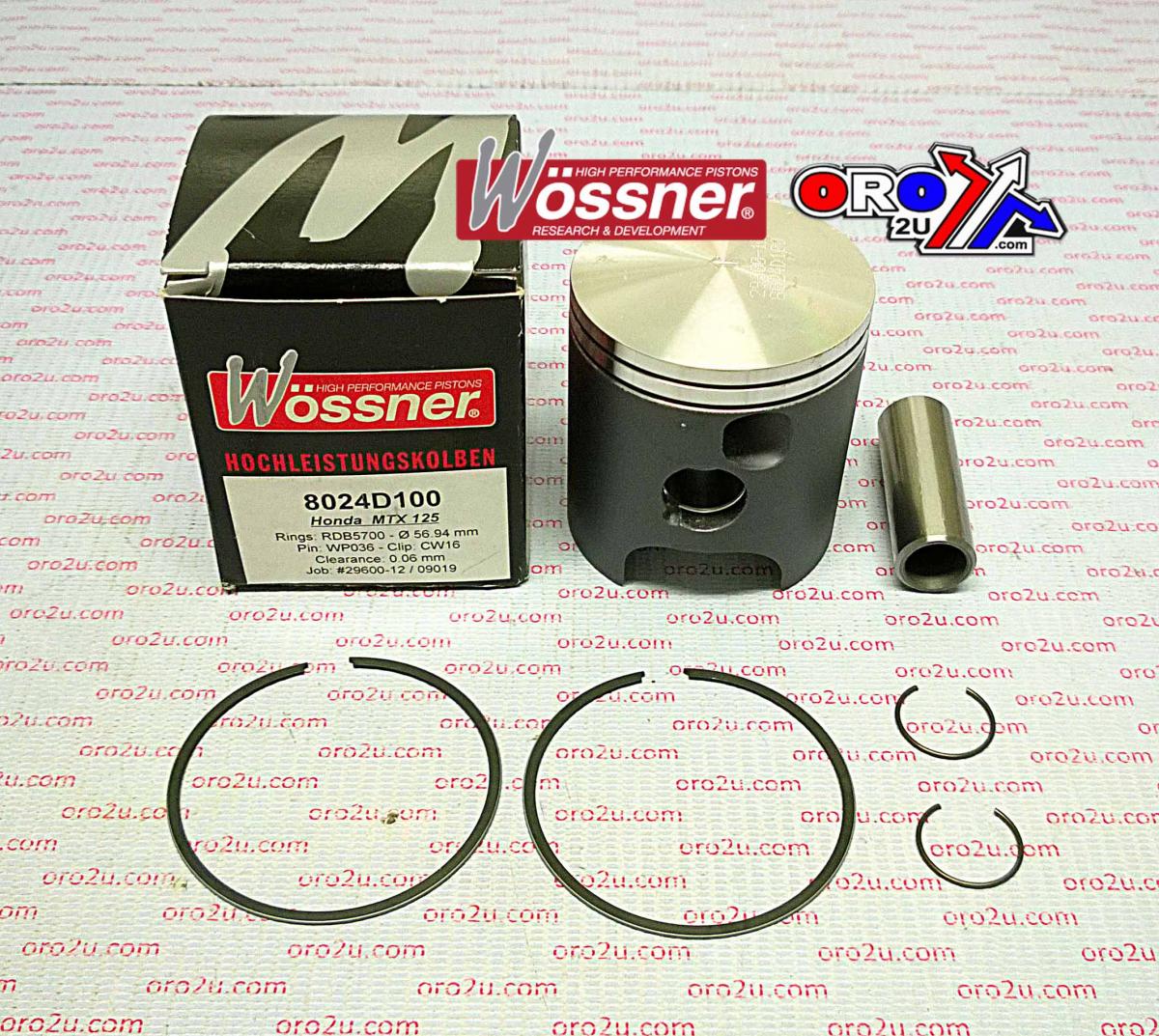

Wossner forged piston kit 8024DA for Honda MBX125 and MTX125 models 1983-1987. Features a 56mm bore (55.94mm measured) with a 50.60mm stroke and 30.40mm compression height. This kit provides superior strength and durability with its forged construction. The elliptical design ensures a uniform bearing surface under thermal expansion, promoting efficient heat transfer and preventing piston collapse by reducing localised pressure. Manufactured in Germany, it meets high standards of design and quality. Specifications include a 0.06mm clearance, 124 cm³ display volume, 2-stroke compression ratio for both Wossner and OEM. Part number 56-W903+000.WO, with lock P/N CW16, pin P/N WP036, and ring set P/N RSB5600 x 2. Cross-references OEM part number 13140-KE1-003.
- SKU
- 56-W903+000.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for Honda MBX125 and MTX125
Upgrade your Honda MBX125 or MTX125 with this high-performance Wossner forged piston kit. Designed for models from 1983 to 1987, this piston kit offers superior strength, durability, and consistent performance, even under demanding conditions. Manufactured with precision in Germany, Wossner pistons are engineered to meet rigorous quality standards.
Key Features:
- Forged Construction: Provides exceptional strength and longevity, resisting deformation and wear.
- Elliptical Design: Ensures a uniform bearing surface, adapting to thermal expansion for optimal performance.
- Efficient Heat Transfer: Facilitates effective heat dissipation from the combustion chamber to the cylinder walls, reducing thermal stress.
- Piston Collapse Prevention: Engineered to prevent piston collapse under high thermal loads, minimizing localized pressure points.
- Precision Manufacturing: Made in Germany, reflecting a commitment to high-quality engineering and materials.
Specifications:
- Bore Size: 56.00mm (Measured: 55.94mm)
- Displacement Volume: 124 cm³
- Stroke: 50.60mm
- Piston Clearance: 0.06mm
- Compression Height: 30.40mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Includes Lock P/N: CW16
- Includes Pin P/N: WP036
- Includes Ring Set P/N: RSB5600 (x2)
Cross-Reference OEM Part Numbers:
- 13140-KE1-003
