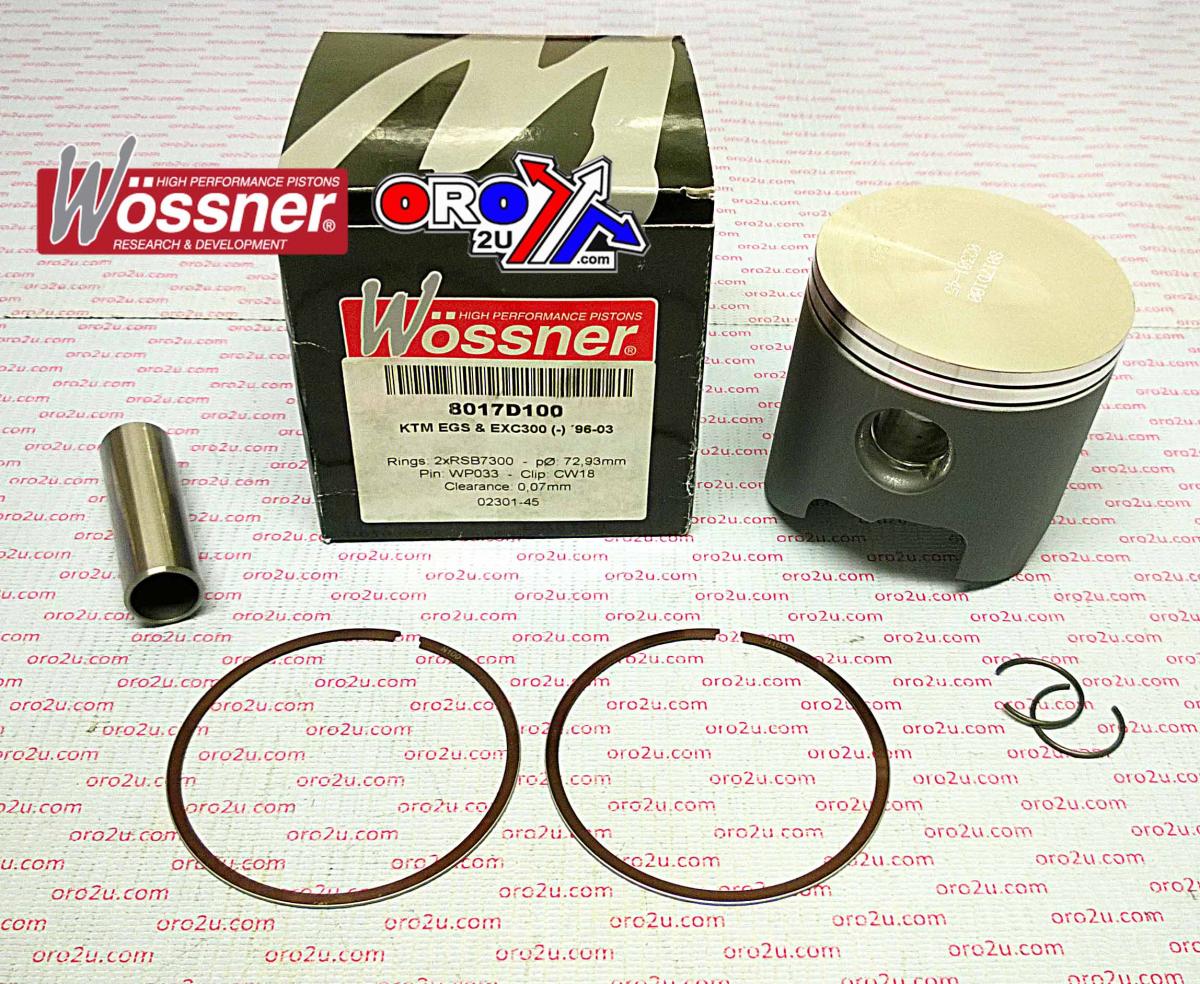

PISTON KIT 96-03 KTM300 73.00, WOSSNER 8017D100 FORGED
Wossner forged piston kit 8017D100 is a +1.00 oversize piston with a 73.00 mm bore and 72.93 mm actual piston diameter. This forged piston is manufactured in Germany for 2-stroke engines and features an elliptical profile for even mechanical load distribution and enhanced heat transfer, minimising piston collapse. Key specifications include a 297 cm³ displacement, 72.00 mm stroke, 0.07 mm clearance, and 26.70 mm compression height. Component part numbers include lock CW18, pin WP033, ring set RSB7300 (x2), and rod P2024.
- SKU
- 56-W712+100.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit +1.00 Oversize 73.00mm
This Wossner forged piston kit is designed for enhanced performance and durability in 2-stroke engines. Engineered in Germany, this +1.00 oversize piston features a 73.00 mm bore and a precise 72.93 mm actual piston diameter. The advanced elliptical profile is key to its design, promoting even mechanical load distribution and superior heat transfer. This construction minimizes the risk of piston collapse, even under demanding high-stress operating conditions.
Key Features:
- Forged construction for exceptional strength and wear resistance.
- Elliptical piston design optimizes bearing surface uniformity and reduces stress points.
- Enhances combustion heat transfer to cylinder walls for improved efficiency.
- Precision manufactured in Germany.
Specifications:
- Bore Size: 73.00 mm
- Actual Piston Diameter: 72.93 mm
- Displacement: 297 cm³
- Stroke: 72.00 mm
- Clearance: 0.07 mm
- Compression Ratio: 2-stroke (Wossner and OEM)
- Compression Height: 26.70 mm
Included Components:
- Piston Kit: 8017D100
- Lock: CW18
- Pin: WP033
- Ring Set: RSB7300 (x2)
- Rod: P2024
