PISTON KIT DR600 DR650 97.00, FORGED WOSSNER 8503D200
Wossner forged piston kit with a 97mm bore. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse. Features forged construction for superior strength and durability, optimized heat transfer to cylinder walls, elliptical design for uniform bearing surface under heat expansion, and increased compression ratio for improved engine performance. Specifications: Bore: 97mm (96.94mm actual), Display: 589 cm³, Stroke: 85.00mm, Clearance: 0.06mm, Wossner Compression Ratio: 10.00:1, OEM Compression Ratio: 8.50:1, Dome Volume: +6.10 cm³, Compression Height: 29.90mm. Piston Part Number: 8503D200.
- SKU
- 56-W4597_200.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

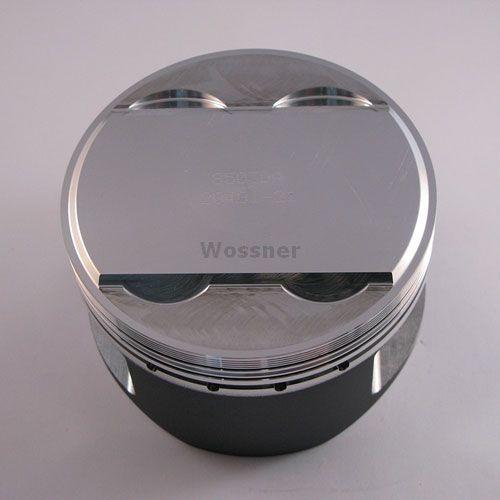

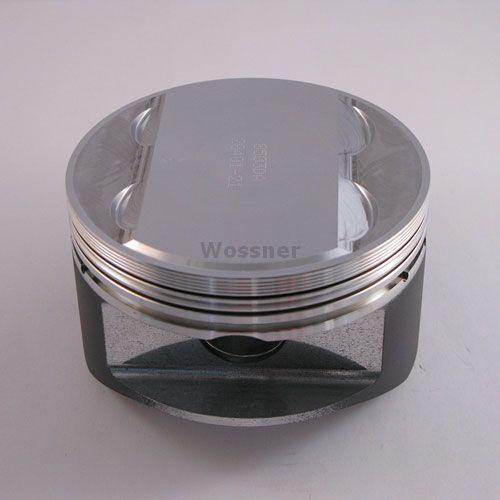

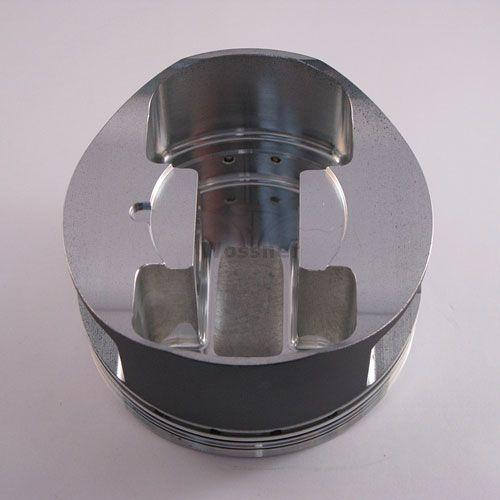

Wossner Forged Piston Kit 97mm Bore
Upgrade your motorcycle's performance with this Wossner forged piston kit. Engineered for enhanced strength, superior heat transfer, and exceptional durability, this high-performance piston is manufactured in Germany to exacting standards. The advanced elliptical design ensures uniform bearing surface distribution, even under extreme heat expansion, effectively reducing localized pressure and preventing piston collapse for a longer lifespan and optimal engine operation.
Key Features:
- Forged construction for maximum strength and longevity.
- Optimized heat transfer capabilities for efficient cooling.
- Elliptical piston design for balanced bearing surface under thermal stress.
- Increased compression ratio for a noticeable boost in engine performance.
- Proudly made in Germany.
Specifications:
- Bore Size: 97mm (actual measurement 96.94mm)
- Displacement: 589 cm³
- Stroke: 85.00mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: 10.00:1
- OEM Compression Ratio: 8.50:1
- Dome Volume: +6.10 cm³
- Compression Height: 29.90mm

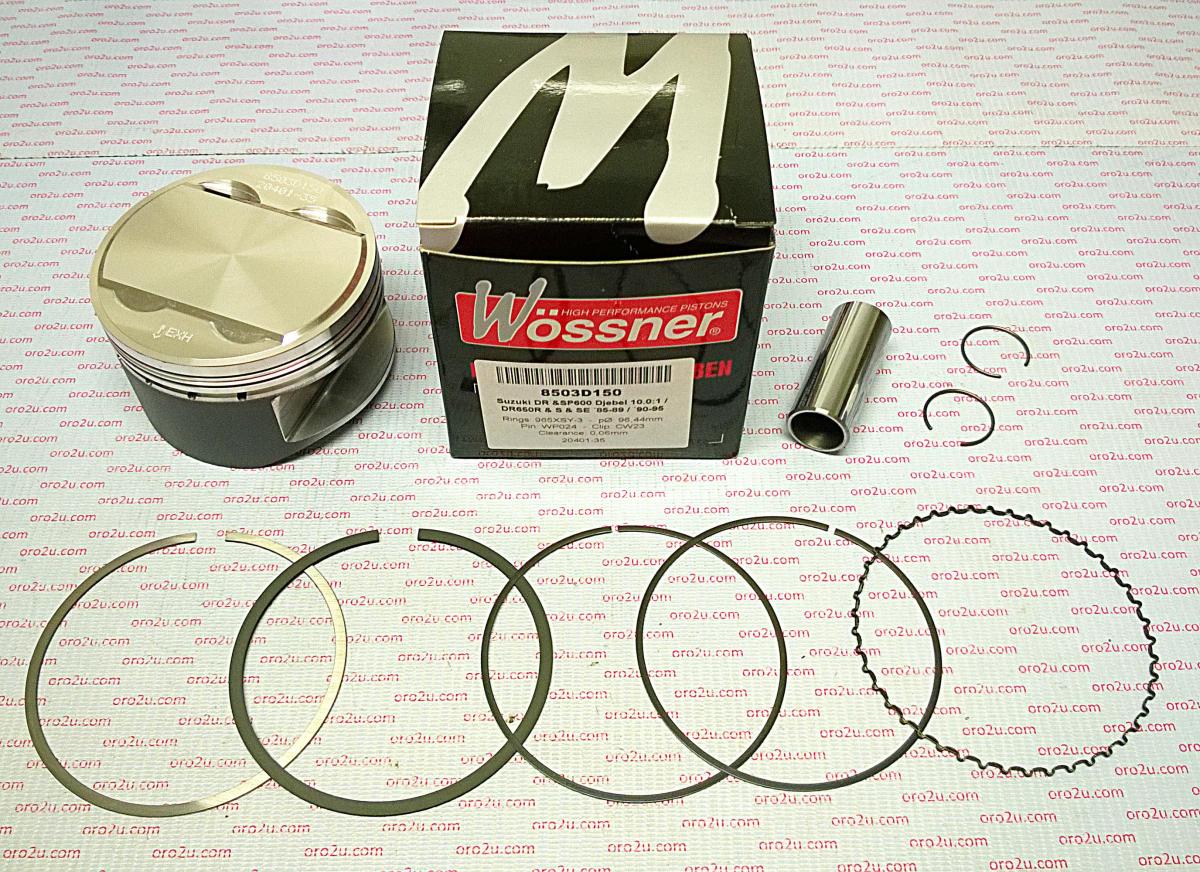

Included Components:
- Wossner Piston Part Number: 8503D200
- Lock Rings: CW23
- Piston Pin: WP024
- Ring Set: 970XSY
