PISTON KIT/3 750 TRIPLE 73.00 WOSSNER K8248D200-3 1972-75
The Wossner K8248D200-3 piston kit features +2.00mm oversize forged pistons with PTFE-coated skirts for Kawasaki 750cc triple-cylinder two-stroke motorcycles from 1972 to 1975. With a 73.00mm bore, this kit is engineered for high durability, optimal heat transfer, and reliable performance in classic high-output engines. The elliptical design ensures even load distribution and consistent thermal expansion, while the 4032 T6 alloy construction allows for precise piston-to-bore tolerances. Made in Germany, this set includes three pistons, piston pins, clips, and rings for installation. Specifications include a measured bore of 72.93mm, display displacement of 747 cm³, stroke of 63.00mm, clearance of 0.07mm, and compression height of 32.00mm. This kit contains 3 pistons. Cross-reference OEM part numbers include Clip: CW16, Piston Pin: WP027, and Ring Set: RSB7300.
- SKU
- 56-W9868.200.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner K8248D200-3 Piston Kit - 73.00mm Oversize
This Wossner K8248D200-3 piston kit provides a +2.00mm oversize forged piston solution designed for high-performance 750cc triple-cylinder two-stroke motorcycles. Engineered for durability and optimal power output, this kit is ideal for classic performance builds.
Key Features
- Forged high-performance pistons featuring PTFE-coated skirts for reduced friction.
- Elliptical piston design promotes even load distribution and consistent thermal expansion.
- Engineered for efficient heat transfer from the combustion chamber to the cylinder walls.
- Constructed from 4032 T6 alloy, ensuring precise piston-to-bore tolerances.
- Complete kit includes piston pins, clips, and rings for straightforward installation.
Specifications
- Bore Size: 73.00mm (+2.00mm oversize)
- Measured Bore: 72.93mm
- Displayed Displacement: 747 cm³
- Stroke: 63.00mm
- Clearance: 0.07mm
- Compression Height: 32.00mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Quantity: Three pistons per kit
- Manufacturing Origin: Germany

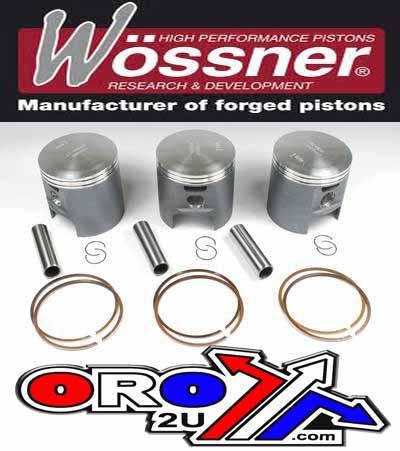

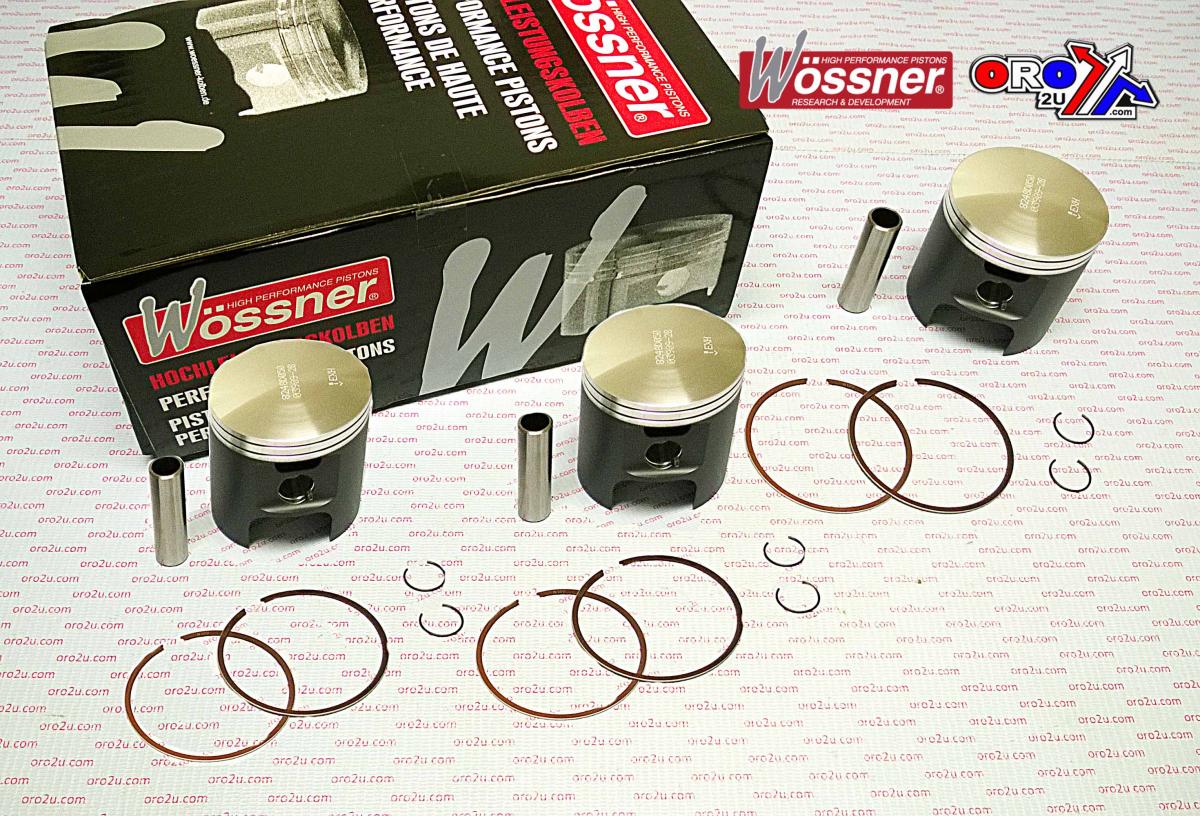

Included Components
- Pistons: 3
- Piston Pins: WP027
- Clips: CW16
- Ring Sets: RSB7300 (2 per piston)
