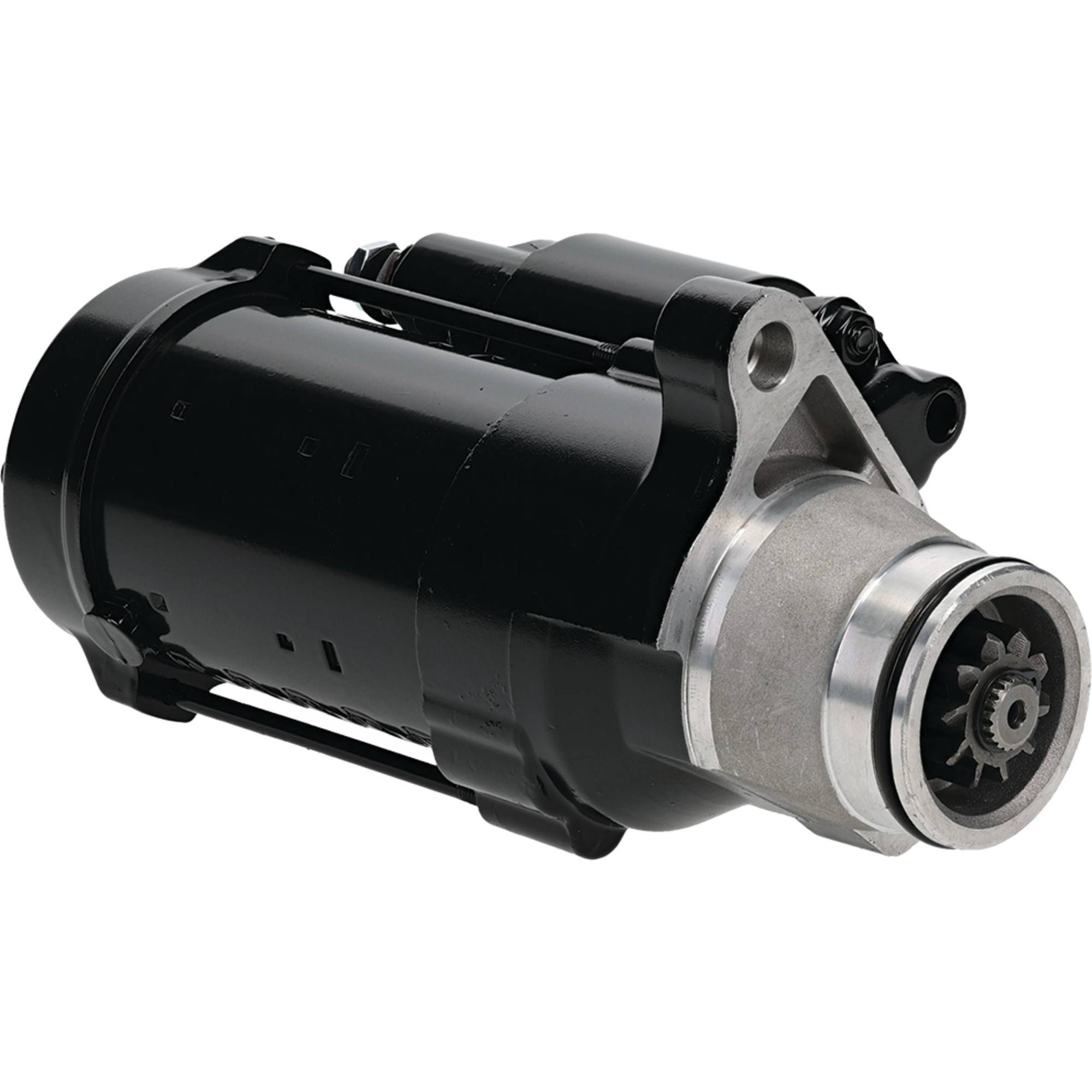

STARTER MOTOR HD 1.4 KW 18-21, HARLEY DAVIDSON, 6 SPEED, ALLBALLS 80-1015
This 1.4 kW starter motor is engineered for Harley-Davidson motorcycles equipped with 6-speed transmissions from model years 2018 to 2024. Featuring a planetary gear reduction system and clockwise rotation, it offers reliable starting performance. Features include: 1.4 kW starter motor, clockwise rotation direction, Planetary Gear Reduction (PLGR) electric starter type, wet clutch seal included, 11.4 mm to 9.6 mm stepped mounting holes with M8-1.25 threads, Spade S terminal for motor studs, and includes a 10-tooth drive gear. Specifications: 12V voltage, 10 teeth, 1.106" (28.100 mm) gear outside diameter, 6.535" (166 mm) length, 19.600 mm mount hole ID (unthreaded), 2.382" (60.500 mm) registry outside diameter, and 13.949" (1100.300 mm) mounting ear distance. Cross-reference OEM Part Number: All Balls 80-1015.
- SKU
- 19-9717.BK.AB
- Brand
- All Balls Racing
- Availability
- In Stock (3)
FULL DESCRIPTION
All Balls Racing 1.4 kW Starter Motor for Harley-Davidson
This high-performance 1.4 kW starter motor is engineered for reliable starting of Harley-Davidson motorcycles equipped with 6-speed transmissions. Designed with a planetary gear reduction system and clockwise rotation, it ensures efficient power delivery and durability.
Key Features:
- 1.4 kW power output for robust starting
- Planetary Gear Reduction (PLGR) electric starter type
- Clockwise rotation direction
- Includes a wet clutch seal for enhanced protection
- Features a spade S terminal for motor studs
- Comes with a 10-tooth drive gear
- Mounting holes are stepped from 11.4 mm to 9.6 mm with M8-1.25 threads
Specifications:
- Voltage: 12V
- Number of Teeth: 10
- Gear Outside Diameter: 1.106 inches (28.100 mm)
- Length: 6.535 inches (166 mm)
- Registry Outside Diameter: 2.382 inches (60.500 mm)
Cross-Reference:
- All Balls 80-1015
