STATOR COIL 1982-2001 KAWASAKI KZ 1000 P POLICE 21003-1040 21003-1327
Alternator stator assembly for Kawasaki KZ1000 Police (KZ1000P) models from 1982 to 2001. Designed as a direct-fit replacement charging coil. Features a direct-fit replacement for the original stator. Specifications: System voltage is 12 V, 3-phase AC. Lamination stack inner diameter is 38 mm, outer diameter is 102 mm, and thickness is 22.5 mm. Lead count and color: 3 yellow leads. Continuity/resistance is typically around 0.9 Ohms +/-20% between any two yellow leads and open circuit from any yellow lead to ground. Cross-reference OEM part numbers: Kawasaki 21003-1040, Kawasaki 21003-1327, Arrowhead AKI4001, Tucker Rocky 463952, Tucker Rocky 46-3952, 7299-2101, HX MG066. Manufacturer: Dirt Racing. Weight: 936 grams.
- SKU
- 44-6354.DR
- Brand
- Dirt Racing
- Availability
- In Stock (20)
FULL DESCRIPTION

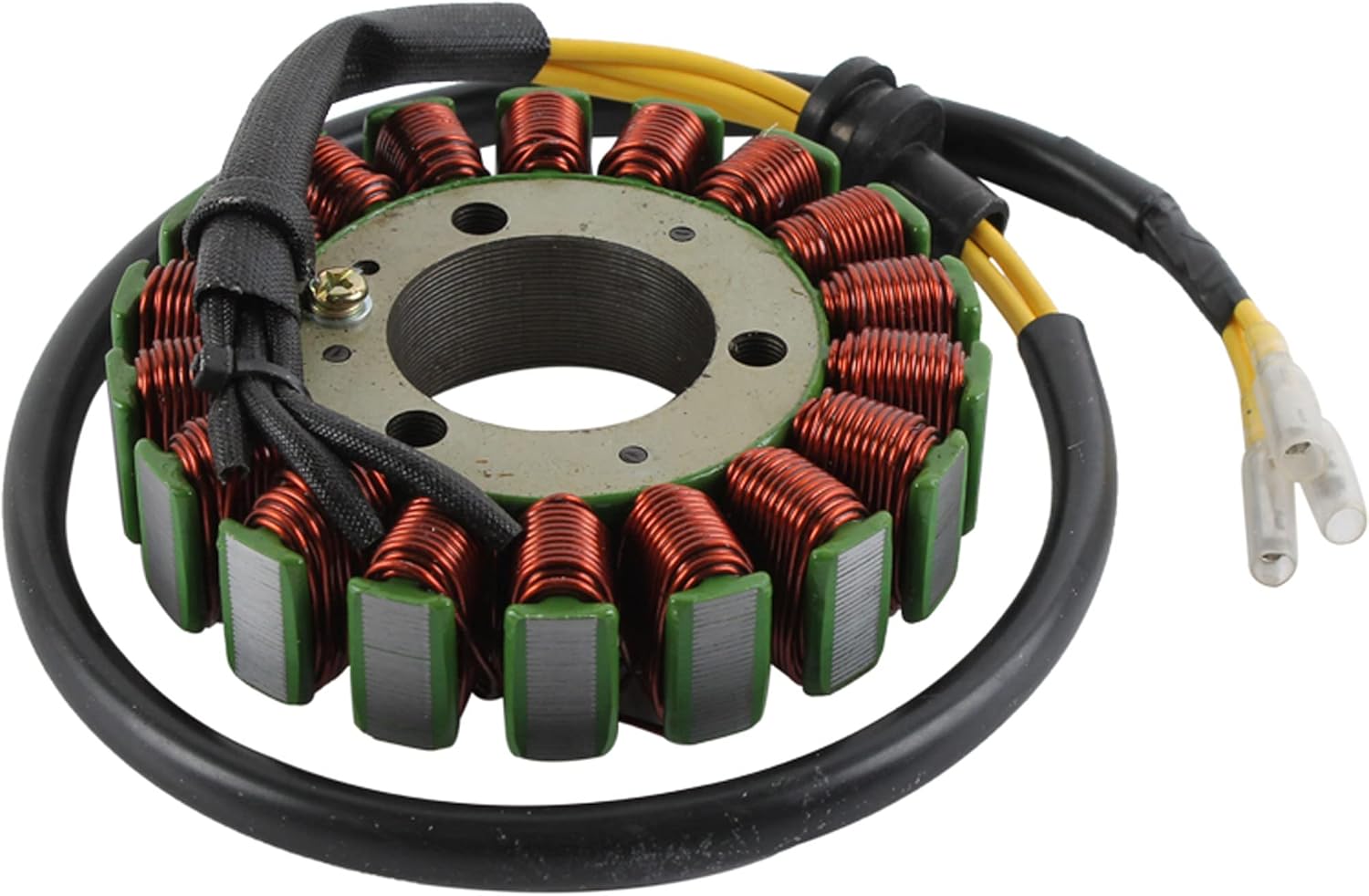

Stator Coil for Kawasaki Motorcycles
This alternator stator assembly is designed as a direct-fit replacement charging coil for select Kawasaki motorcycle models. It provides a reliable solution for restoring or maintaining your vehicle's electrical charging system.
Key Features:
- Direct replacement for original stator assembly.
- Engineered for proven compatibility with specified Kawasaki models.
- Restores essential charging system function.
Specifications:
- System Voltage: 12 V
- Phasing: 3-phase AC
- Lamination Stack Inner Diameter: 38 mm
- Lamination Stack Outer Diameter: 102 mm
- Lamination Stack Thickness: 22.5 mm

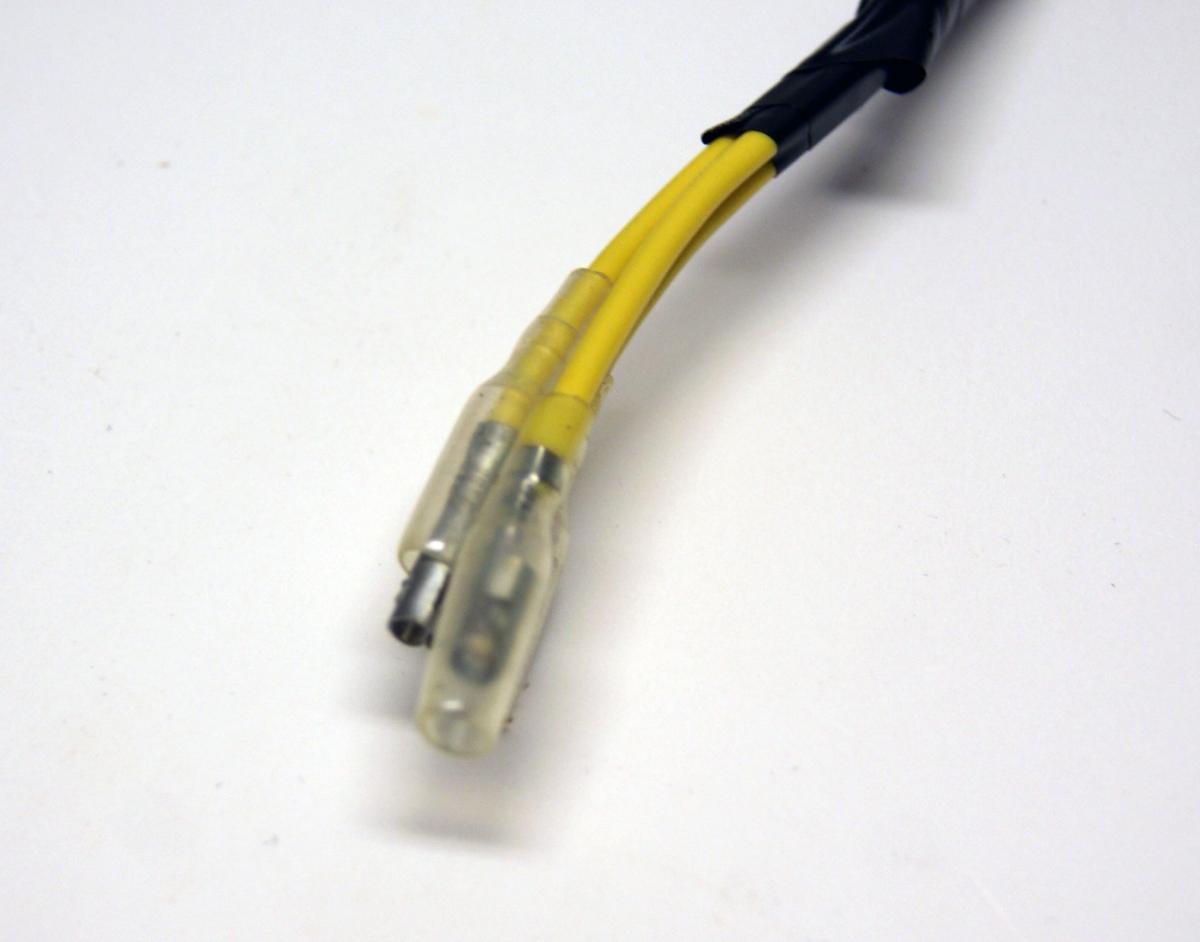

- Lead Count and Color: 3 yellow leads
- Continuity/Resistance: Approximately 0.9 Ohms ±20% between any two yellow leads. Open circuit from any yellow lead to ground.
OEM Part Number Cross-Reference:
- Kawasaki: 21003-1040
- Kawasaki: 21003-1327
