PISTON KIT 89-99 RM125 55.50, WOSSNER 8055D150 SUZUKI MX
Wossner forged piston kit for Suzuki RM125 models 1989-1999 with a 55.50mm bore. This piston offers high strength, superior heat transfer, and uniform load distribution. Its elliptical design minimizes localized stresses under high-temperature conditions, reducing the risk of piston collapse. Manufactured in Germany. Features: forged construction, optimized design for effective combustion chamber heat transfer, elliptical geometry for uniform pressure distribution. Specifications: Bore Size 55.50mm, Actual Piston Size 55.45mm, Display Capacity 123 cm³, Stroke 54.00mm, Clearance 0.05mm, Compression Ratio (Wossner) 2-stroke, Compression Ratio (OEM) 2-stroke, Compression Height 29.50mm. Cross-Reference OEM Part Numbers: Piston Kit 8055D150, Lock CW15, Pin WP032, Ring Set RSB5550.
- SKU
- 56-W641_150.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

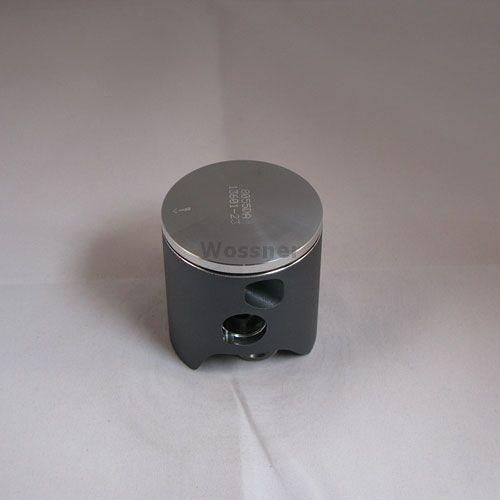

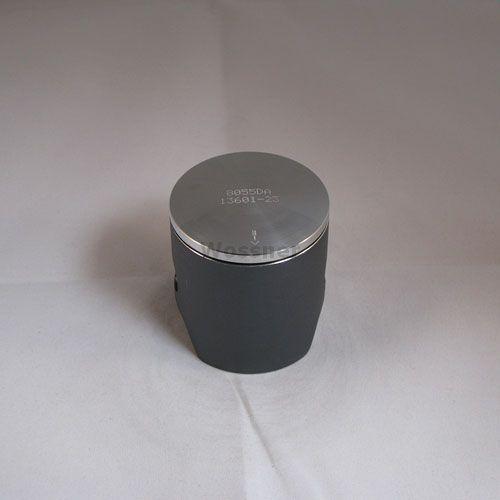

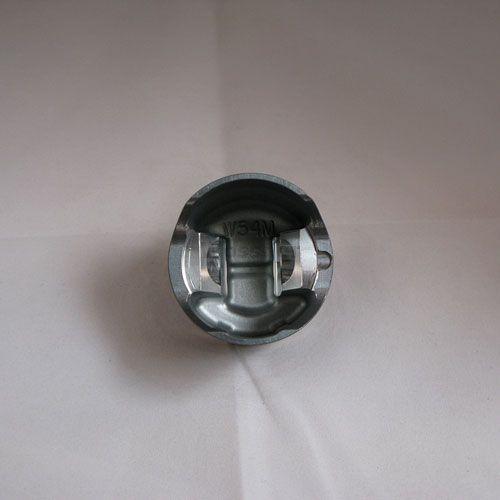

Wossner Forged Piston Kit for Suzuki RM125 (1989-1999)
Upgrade your Suzuki RM125's performance and reliability with this Wossner forged piston kit. Engineered for models from 1989 to 1999, this kit features a 55.50mm bore, ideal for oversize repairs, providing enhanced strength and durability.
Wossner pistons are designed for superior heat transfer and uniform load distribution, minimizing stress under high-temperature operating conditions and reducing the risk of component failure. Precision manufactured in Germany, these pistons offer exceptional quality and performance.
Key Features:
- Forged construction for exceptional strength and longevity.
- Optimized design for efficient combustion chamber heat management.
- Elliptical geometry ensures balanced pressure distribution across the piston surface.
- Manufactured to high standards in Germany.
Specifications:
- Bore Size: 55.50mm
- Actual Piston Size: 55.45mm
- Displacement: 123 cm³
- Stroke: 54.00mm
- Piston Clearance: 0.05mm
- Compression Height: 29.50mm

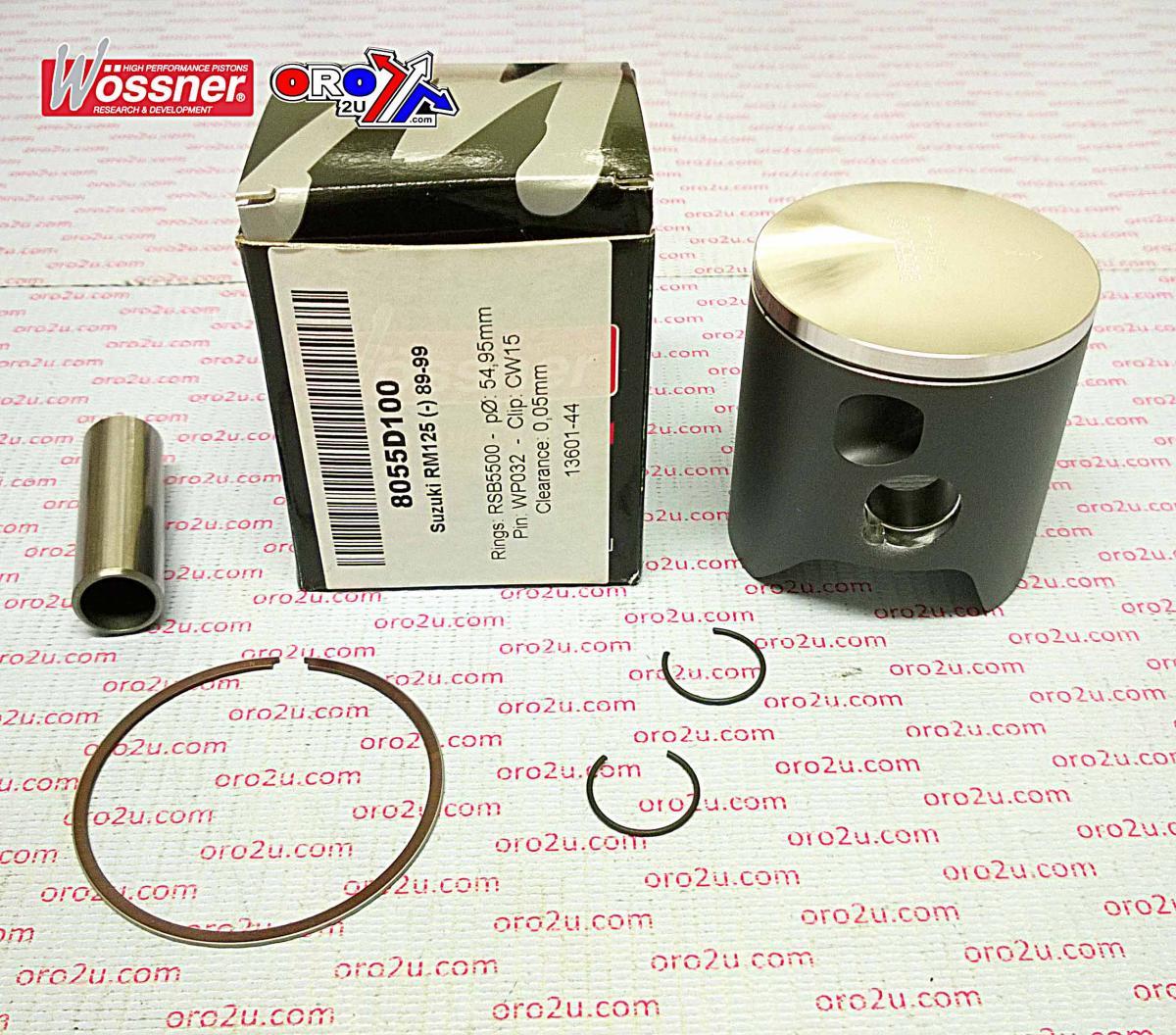

Included Components:
- Piston Kit Reference: 8055D150
- Lock Ring: CW15
- Piston Pin: WP032
- Ring Set: RSB5550
