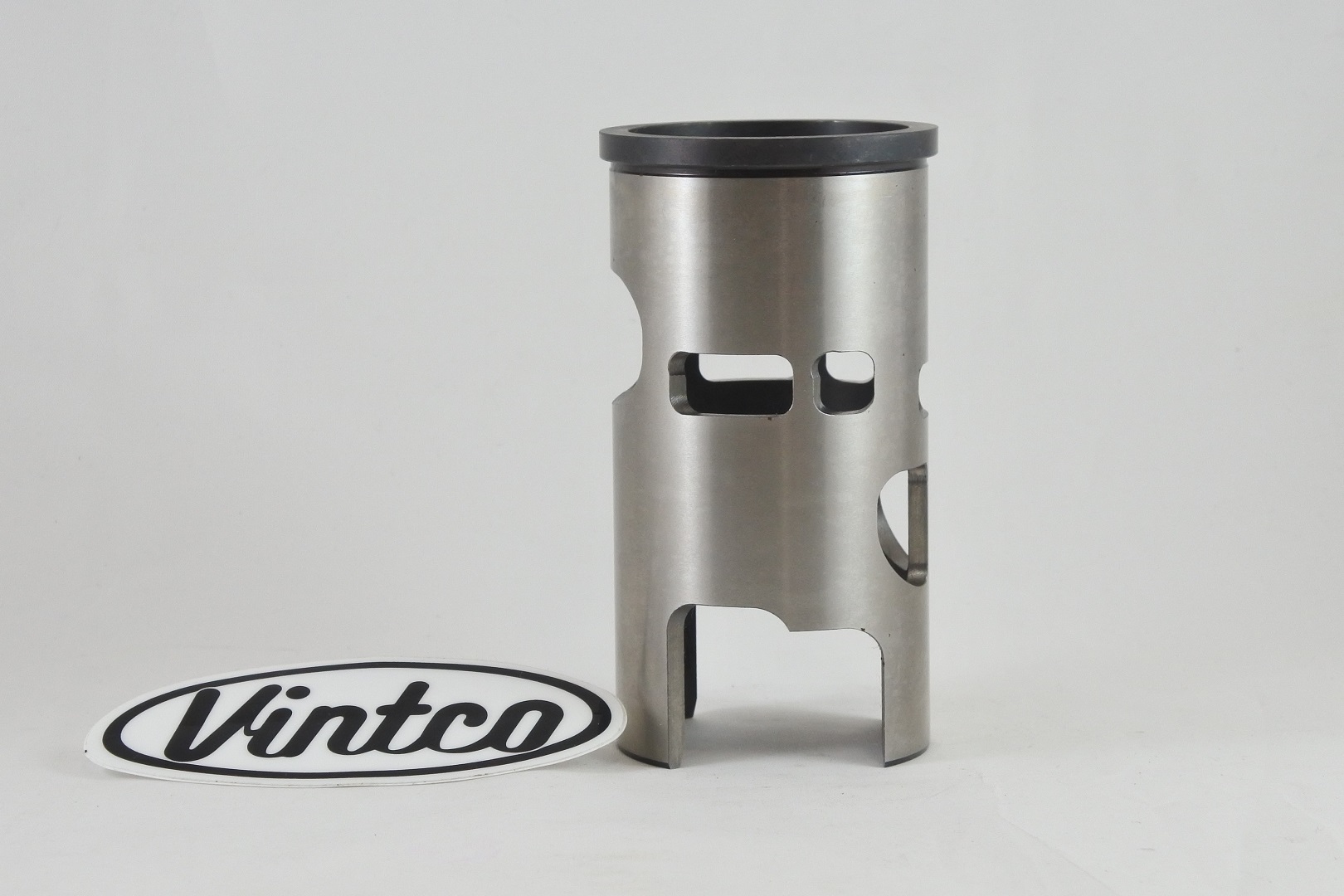

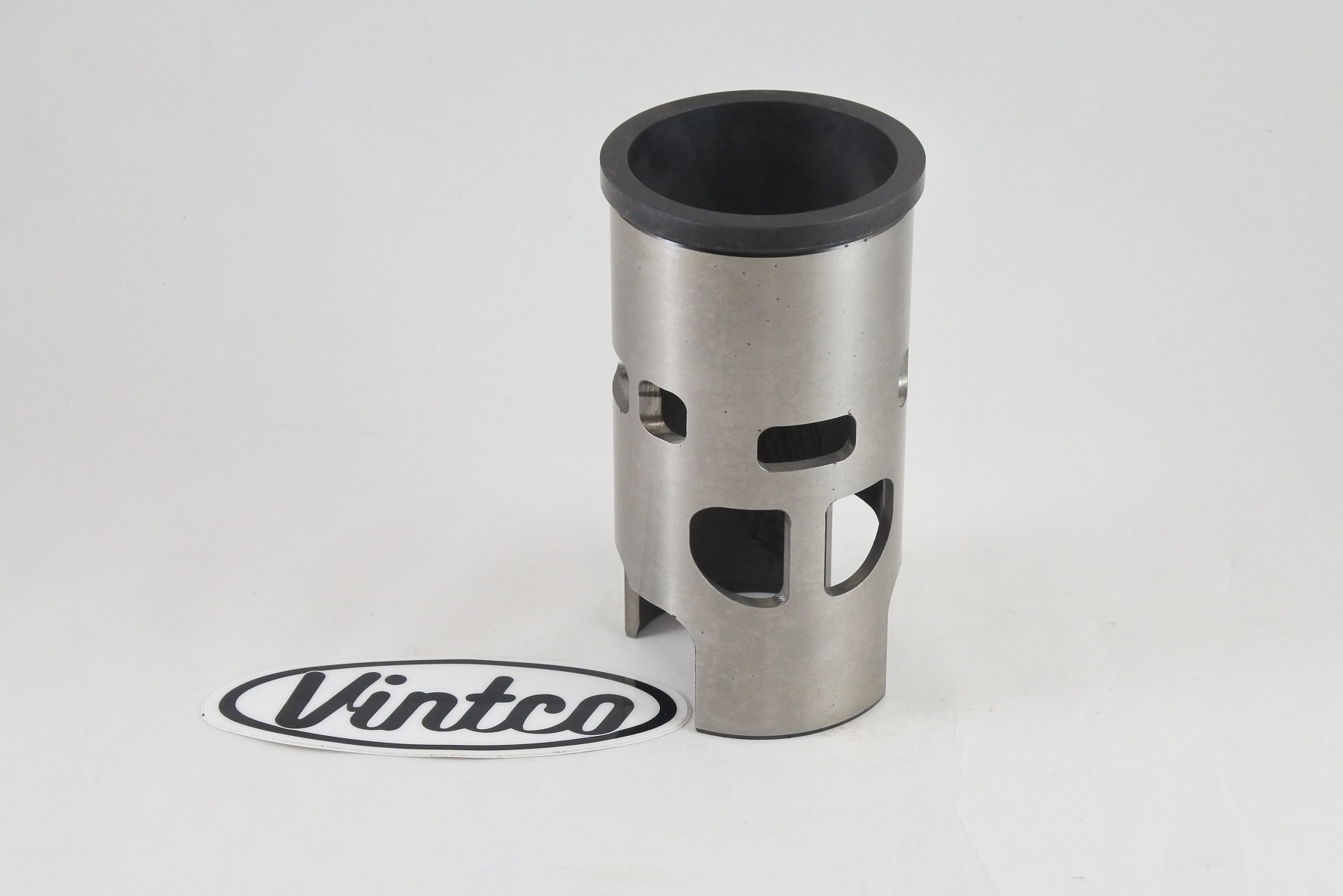

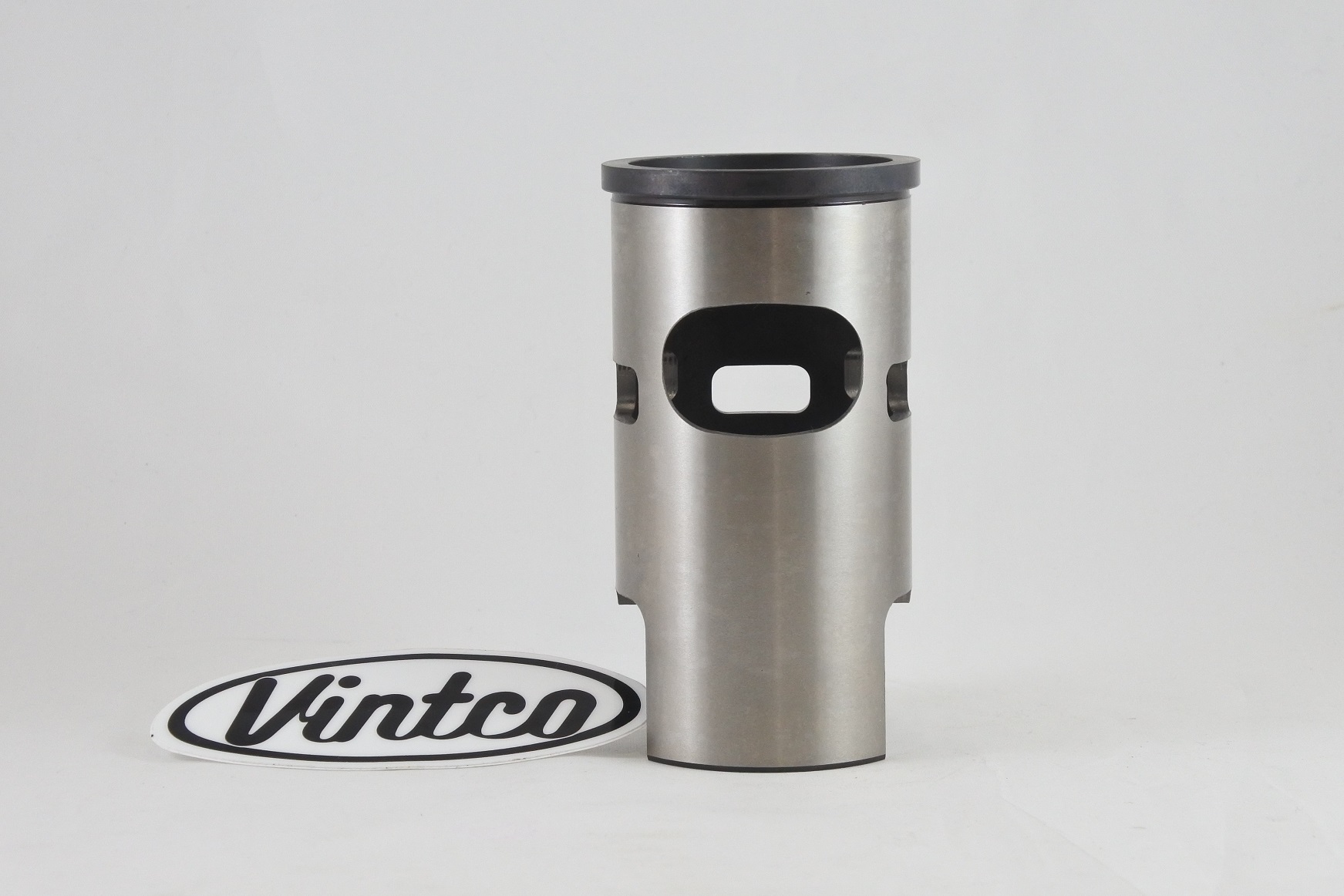

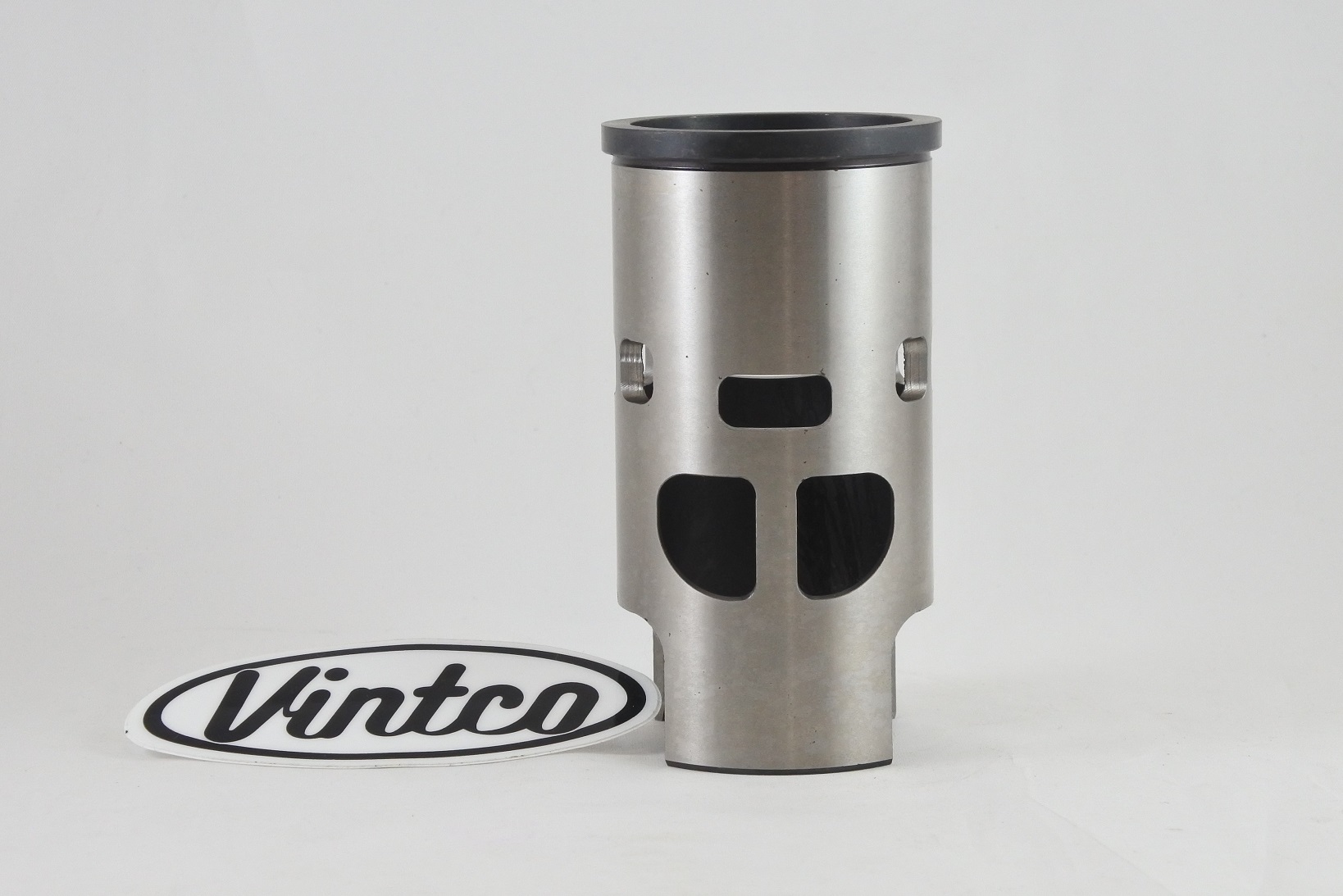

CYLINDER SLEEVE 77-78 SUZUKI RM 125 54mm VINTCO SLS01A
Replacement cast-iron cylinder sleeve for 1977-1978 Suzuki RM125 models. Intended for restoring worn or damaged original cylinders. Made in the USA by Advanced Sleeve for VintCo. Features correctly angled ports to reduce port-matching work. Can be bored and honed to suit the stock-size VintCo piston kit. VintCo Part Number: SLS01A. Compatible piston part number: PSS01-00. Material: Cast iron. Bore: 54 mm. Height: 117.5 mm. Outside diameter: 59.9 mm. Flange outside diameter: 63.5 mm. Flange height: 5.3 mm. Wall thickness: 3.6 mm. Intake: 22.5 mm. Exhaust port location: 25.6 mm. Weight: 420 grams.
- SKU
- VIN-SLS01A
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
VintCo Cylinder Sleeve for Vintage Suzuki RM125
Restore your classic Suzuki RM125 with this high-quality VintCo cast-iron cylinder sleeve. Designed as a direct replacement liner, this sleeve is ideal for situations where the original cylinder is worn or difficult to find. Manufactured in the USA by Advanced Sleeve for VintCo, this sleeve ensures precision and durability for your vintage motorcycle.
Key Features:
- Replacement cast-iron cylinder sleeve specifically for vintage Suzuki RM125 models.
- Perfect for restoring motorcycles with worn or damaged original cylinders.
- Features correctly angled ports to minimize port-matching during installation.
- Designed to be bored and honed to match the stock-size VintCo piston kit for a perfect fit.
- Proudly made in the USA.
- Manufactured for VintCo by Advanced Sleeve, a leader in precision engine components.
Specifications:
- Material: Cast iron
- Bore Size: 54 mm
- Height: 117.5 mm
- Outside Diameter: 59.9 mm
- Flange Outside Diameter: 63.5 mm
- Flange Height: 5.3 mm
- Wall Thickness: 3.6 mm
- Intake Port Dimension: 22.5 mm
- Exhaust Port Location: 25.6 mm
