TOP END PISTON KIT 80-81 HONDA CR R 80 51.5mm 2.0mm OVER VINTCO KTH10-2.0

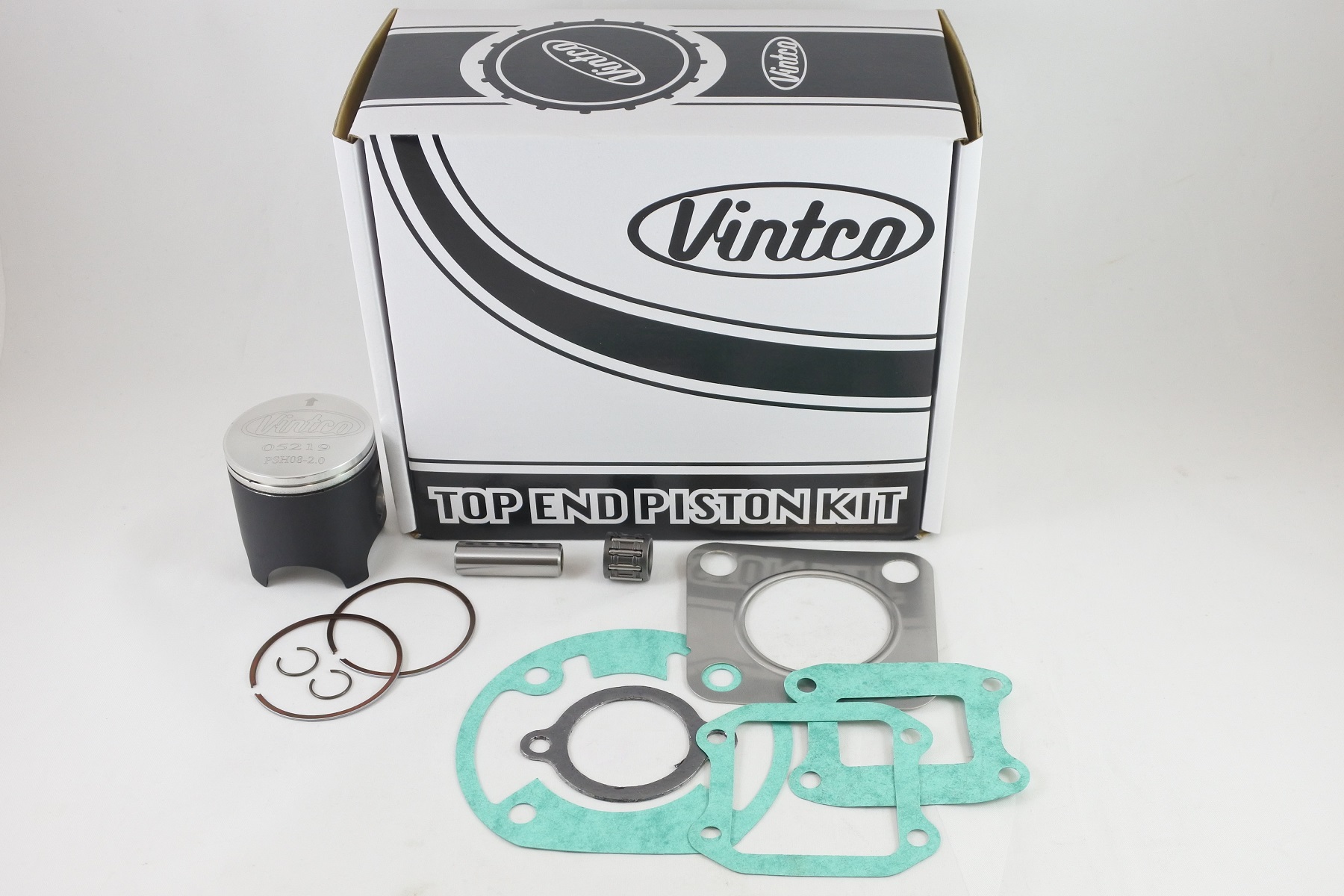

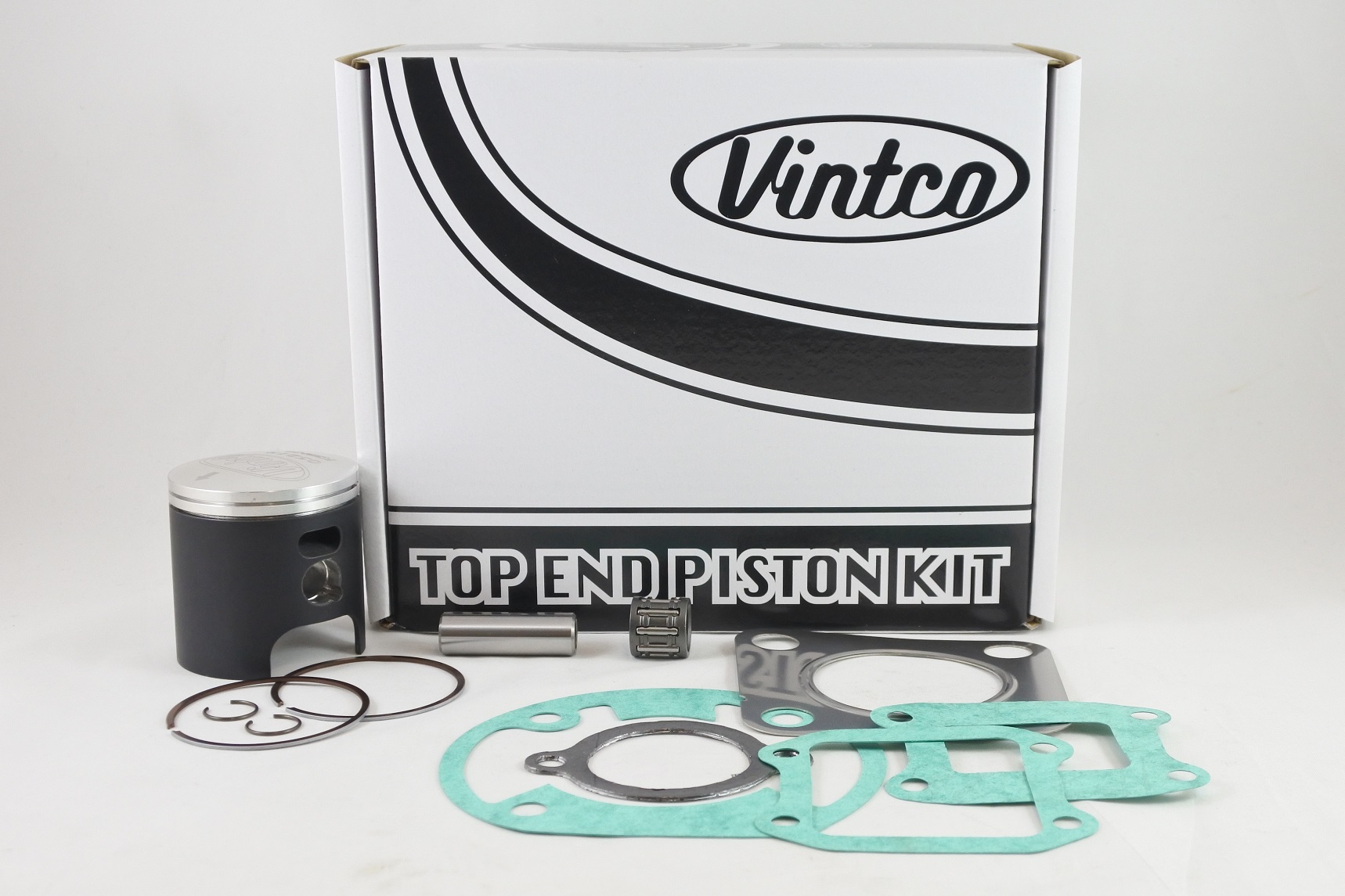

VintCo top end piston kit includes piston, rings, pin and clips, top end bearing, and a full top-end gasket set with head, base, reed and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance. This kit is supplied in a 51.5 mm, +2.0 mm oversize configuration. Features: Complete top end rebuild kit, Includes piston, rings, pin and clips, Includes top end bearing, Includes full top-end gasket kit, Gasket kit includes head gasket, base gasket, reed gaskets and exhaust gasket, MoS2-coated piston for initial running-in, Designed for OEM-equivalent or better fit and performance, Additional size options available. Specifications: VintCo Part Number: KTH10-2.0, Piston type: Forged, Country of manufacture: Germany, Nominal piston size: 51.5 mm, Oversize: +2.0 mm, Piston measurement: 51.45 mm, Clearance: 0.05 mm, Wrist pin bearing size: 12 x 17 x 16 mm. Cross-Reference OEM Part Numbers: Head gasket: 12251-169-000, Reed valve gasket: 14132-169-306, Reed valve gasket: 14133-169-306, Base gasket: 12191-GC4-306, Exhaust gasket: 18291-169-306.
- SKU
- VIN-KTH10-2.0
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top-End Piston Kit
This VintCo top-end piston kit provides the essential components for a complete top-end rebuild. Engineered for modern manufacturing methods, this kit offers OEM-equivalent or superior fit and performance. The kit includes a MoS2-coated piston for efficient initial running-in, along with all necessary parts for a comprehensive rebuild.
Key Features:
- Complete top-end rebuild kit for a hassle-free process.
- Includes a high-quality piston, rings, pin, and clips.
- Comes with a top-end bearing for smooth operation.
- Features a full top-end gasket set, including head, base, reed, and exhaust gaskets.
- MoS2-coated piston designed for optimized initial running-in.
- Manufactured using modern materials and methods for reliable performance.
- Priced to be more economical than purchasing individual components.
- Available in additional sizes for broader application.
Specifications:
- Manufacturer: VintCo
- Piston Type: Forged
- Country of Manufacture: Germany
- Nominal Piston Size: 51.5 mm
- Oversize: +2.0 mm
- Piston Measurement: 51.45 mm
- Clearance: 0.05 mm
- Wrist Pin Bearing Size: 12 x 17 x 16 mm
