17x8 UHD FORGED 6 SPOKE WHEELS, 5/114.3 (5x114.3) UTV SXS MOTORSPORT DRIFT RALLY
17x8 inch UHD forged 6-spoke wheel in black. Features a 5x114.3 bolt pattern (PCD), supporting 12mm and 14mm stud sizes with a 60-degree seat. The offset is +/- 0 with 4+4 backspacing. Ideal for motorsport applications including rallying, drifting, and auto testing. Includes recommended tire sizes for 25-inch diameter (225/45R17, 235/45R17, 245/40R17) and various larger Outer Diameter (OD) options for UTV/SXS applications, ranging from 26-inch to 32-inch OD. Compatible with any vehicle using the 5x114.3 PCD, ensuring proper center bore and backspacing for fitment. Manufacturer: RMC WHEELS.
- SKU
- 83-3734
- Brand
- RMC WHEELS
- Availability
- In Stock (8)
FULL DESCRIPTION

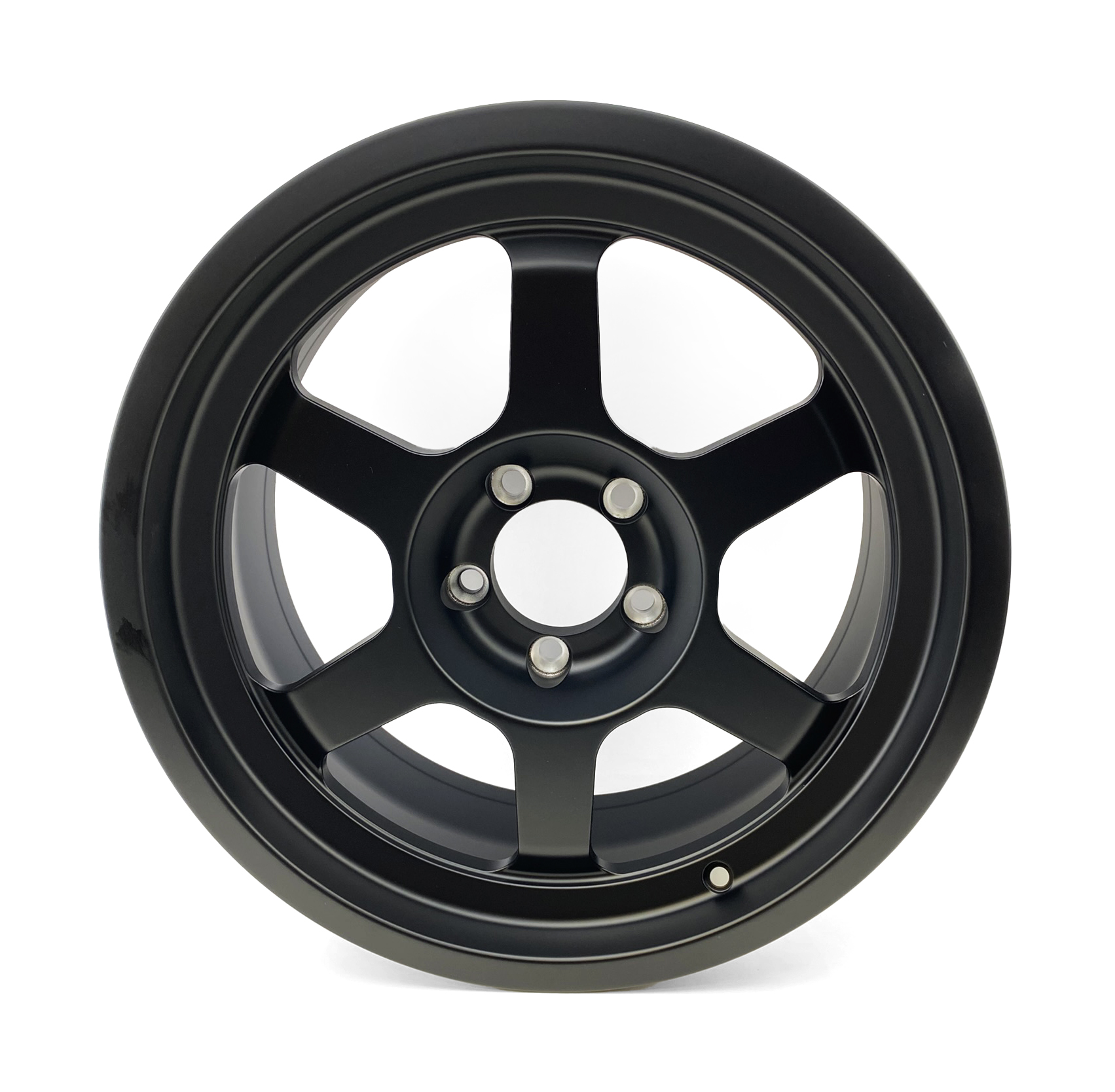

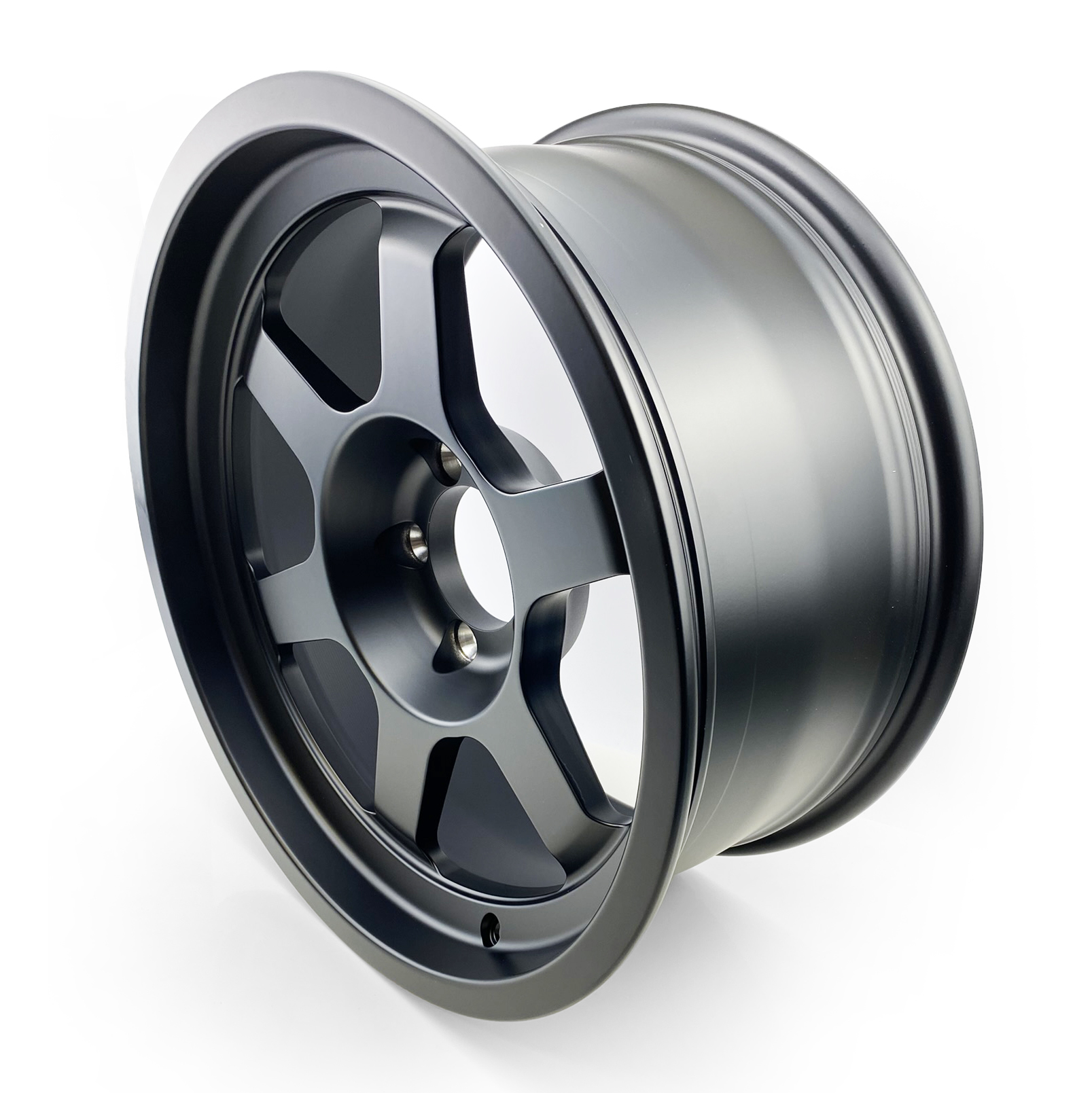

RMC Wheels 17x8 UHD Forged 6 Spoke Wheel
Enhance your vehicle's performance and aesthetics with the RMC Wheels 17x8 UHD Forged 6 Spoke Wheel. Designed for demanding motorsport applications, this wheel offers exceptional durability and a striking black finish.
Key Features:
- Rim Size: 17 inch diameter with an 8 inch width.
- PCD (Bolt Pattern): 5x114.3 (also known as 5/114.3, 5x4.5, 5/4.5) for wide compatibility across many vehicles.
- Stud Size Support: Accommodates both 12mm and 14mm studs with a 60-degree seat design for a secure fit.
- Offset: Features a +/- 0 offset with 4+4 backspacing, promoting balanced handling and performance.
- Color: A sleek and classic black finish.
- Application Focus: Ideal for motorsport disciplines including rallying, drifting, and auto testing where robust performance is crucial.
Performance Tire Recommendations
Optimize your setup with these tire size suggestions based on overall diameter. Please ensure proper clearance for your specific vehicle and driving conditions.
For Vehicles with a 25" Tire Diameter:
- 225/45R17: Offers a balance of grip, comfort, and responsive steering.
- 235/45R17: Provides a wider tread for enhanced handling capabilities.
- 245/40R17: Maximizes contact patch for aggressive grip and performance.
For UTV/SXS Applications with Larger Overall Diameters:
26" Overall Diameter (OD) Tires
- 235/50R17 (26.3" OD): A perfect fit for an 8" wide wheel.
- 225/55R17 (26.7" OD): A slightly narrower option that works well on an 8" width.
- 245/45R17 (25.7" OD): A sporty and common size suitable for an 8" width.
27" Overall Diameter (OD) Tires
- 235/55R17 (27.2" OD): An ideal match for an 8" wide wheel.
- 225/60R17 (27.6" OD): Slightly narrower but fits comfortably on an 8" wheel.
- 255/50R17 (27.0" OD): The maximum recommended width for an 8" wheel.
28" Overall Diameter (OD) Tires
- 235/60R17 (28.1" OD): A balanced fit for an 8" width.
- 245/50R17 (27.7" OD): A wider option that remains compatible with an 8" width.
- 255/55R17 (28.0" OD): The maximum recommended width for an 8" wheel.
29" Overall Diameter (OD) Tires
- 235/65R17 (29.0" OD): Tall and narrow, still suitable for an 8" width.
- 245/60R17 (28.6" OD): Offers a good balance of width and height for an 8" wheel.
- 255/55R17 (28.0" OD): The maximum recommended width for an 8" wheel.
30" Overall Diameter (OD) Tires
- 245/70R17 (30.5" OD): Fits well on 8" wide wheels.
- 265/65R17 (30.6" OD): Slightly wider than ideal but acceptable.
- 235/75R17 (30.9" OD): Tall and narrower, works on an 8" width.
31" Overall Diameter (OD) Tires
- 265/70R17 (31.6" OD): The widest acceptable option for 8" wheels.
- 245/75R17 (31.5" OD): Ideal for an 8" width with a taller profile.
- 255/70R17 (31.1" OD): A balanced fit for an 8" width.
32" Overall Diameter (OD) Tires
- 285/70R17 (32.8" OD): The absolute maximum width for 8" wheels; may require fender clearance modifications.
- 265/75R17 (32.6" OD): An ideal tall size for an 8" wheel.
- 275/70R17 (32.2" OD): Slightly wider but works with proper clearance.
