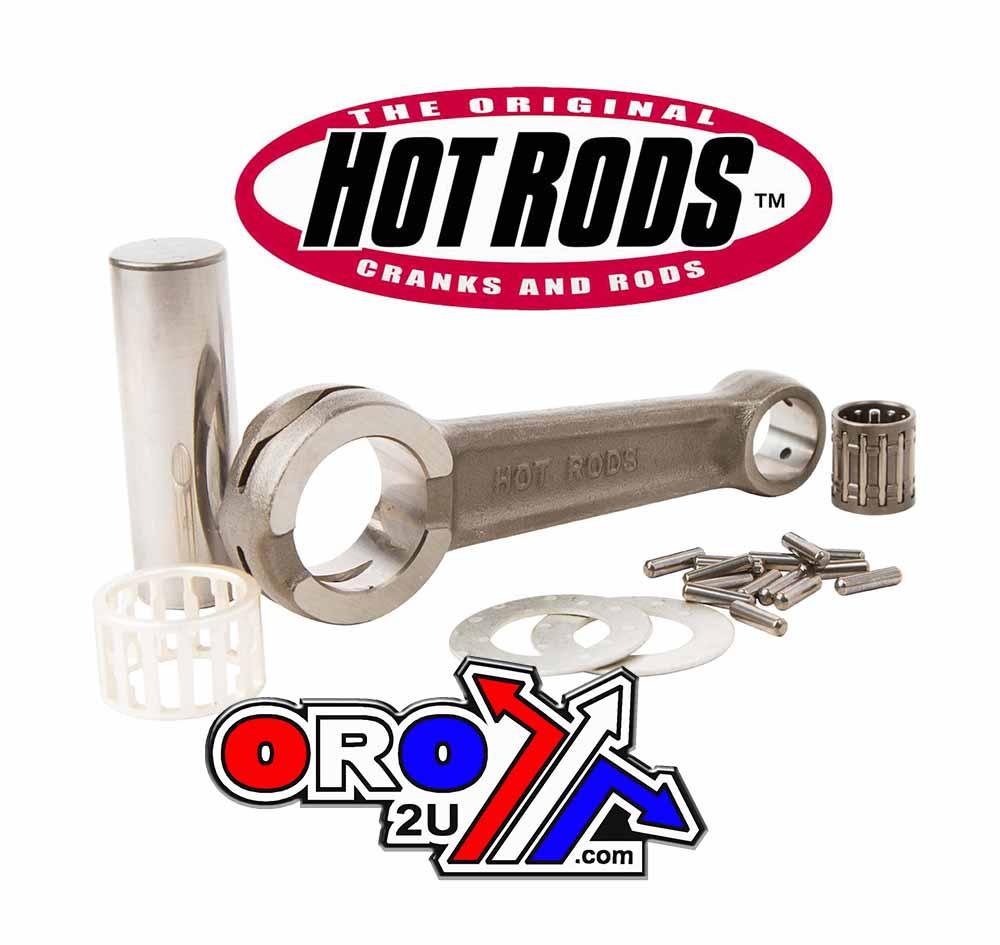

CONNECTING ROD 97-02 KTM60/65, HOTROD 8625
Heavy-duty connecting rod kit from Hot Rods. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and durability. Advanced design with side scalloping and vent slots reduces high-RPM bearing race distortion. Double-forged rods improve grain flow and dimensional consistency. Shot-peened and double-honed for exceptional strength under heavy loads. Small ends are double drilled for improved lubrication and cooling of the wrist pin bearing. Thrust washers and crankpin bearings are silver-coated for added lubricity. Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Centre to Centre: 88.00 mm, Big End Bore: 24.00 mm, Pin Diameter: 18.00 mm, Pin Length: 56.00 mm, Small End Bore: 15.00 mm, Washer Thickness: 1.00 mm. Cross-Reference OEM Part Numbers: KTM: 46030015000. Part Number: 56-958.HR.
- SKU
- 56-958.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for KTM 60SX/65SX
This heavy-duty connecting rod kit from Hot Rods is engineered for durability and reliability, making it an ideal replacement for demanding applications. Manufactured using premium materials and advanced processes, this kit ensures superior performance for your KTM 60SX or 65SX motorcycle.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
- Advanced design incorporates side scalloping and vent slots to minimize high-RPM bearing race distortion.
- Double-forged rods enhance grain flow and ensure consistent dimensions.
- Shot-peened and double-honed surfaces provide outstanding strength under heavy loads.
- Small ends feature double drilling for improved lubrication and cooling of the wrist pin bearing.
- Includes silver-coated thrust washers and crankpin bearings for enhanced lubricity.
- Complete kit provides all necessary components for a full rebuild, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Center to Center Length: 88.00 mm
- Big End Bore Diameter: 24.00 mm
- Crankpin Diameter: 18.00 mm
- Crankpin Length: 56.00 mm
- Small End Bore Diameter: 15.00 mm
- Washer Thickness: 1.00 mm
