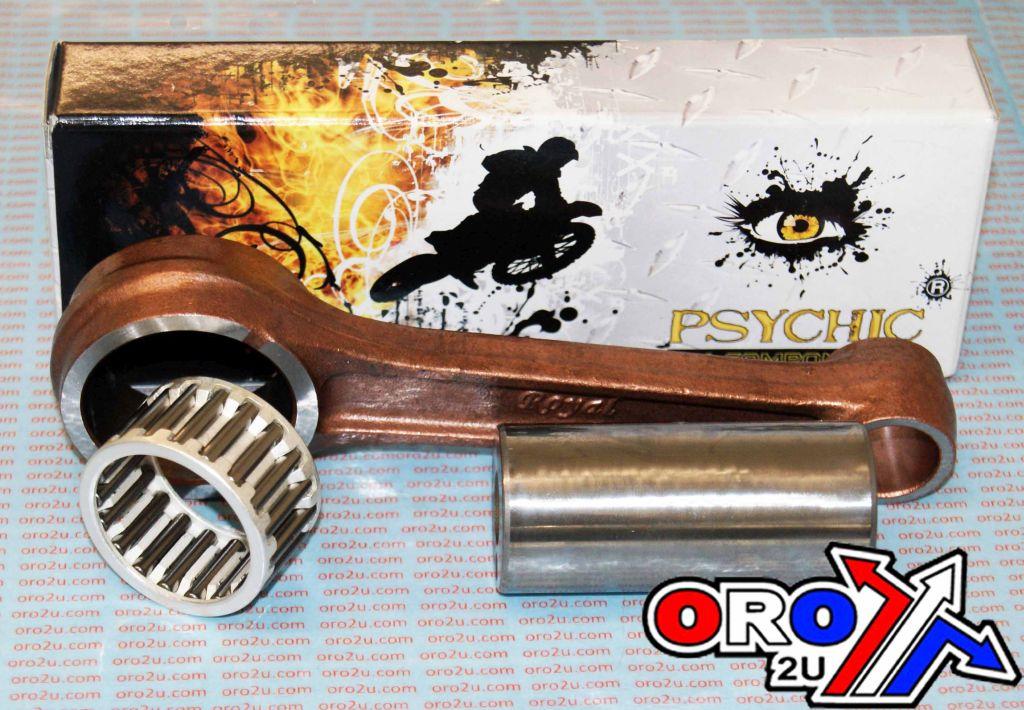

CONNECTING ROD KIT XT500, PSYCHIC MX-09044 YAMAHA
Psychic MX-09044 Connecting Rod Rebuild Kit for Yamaha XT500, SR500, SRX400, and XT400. Features heavy-duty OE replacement connecting rods made from certified Chrome alloy steel for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods utilize the latest caged needle roller bearing designs for high RPM longevity. Thrust washers are manufactured from silver-coated bronze phosphor. Rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers where applicable. Fully compatible with aftermarket and OE crankshafts. Material: SNCM220. Centre to Centre: 145mm. Small End Bearing: None. Small End Bore Ø: 20mm. Small End Width: 24mm. Big End Bearing: 34x42x23.8mm. Big End Bore Ø: 42mm. Big End Width: 24mm. Big End Pin Ø: 34mm. Big End Pin Length: 73.80mm. Washer Thickness: None. Part No. 56-2912.DR.
- SKU
- 56-2912.DR
- Brand
- Psychic
- Availability
- In Stock (2)
FULL DESCRIPTION
Psychic Connecting Rod Rebuild Kit for Yamaha XT500/SR500/SRX400/XT400
This heavy-duty OE replacement connecting rod kit from Psychic is engineered for superior strength and longevity. Crafted from certified chrome alloy steel, it ensures robust performance for your Yamaha motorcycle.
Key Features:
- Constructed from certified chrome alloy steel for exceptional strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Utilizes the latest caged needle roller bearing designs for high RPM longevity.
- Thrust washers are made from bronze phosphor and feature a silver coating.
- Rod assembly is complete and includes the rod, crankpin, crankpin bearing, top end bearing, and thrust washers if required.
- Fully compatible with both aftermarket and OE crankshafts.
- Material: SNCM220
Dimensions:
- Centre to Centre: 145mm
- Small End Bearing: None
- Small End Bore Diameter: 20mm
- Small End Width: 24mm
- Big End Bearing: 34x42x23.8mm
- Big End Bore Diameter: 42mm
- Big End Width: 24mm
- Big End Pin Diameter: 34mm
- Big End Pin Length: 73.80mm
- Washer Thickness: None
