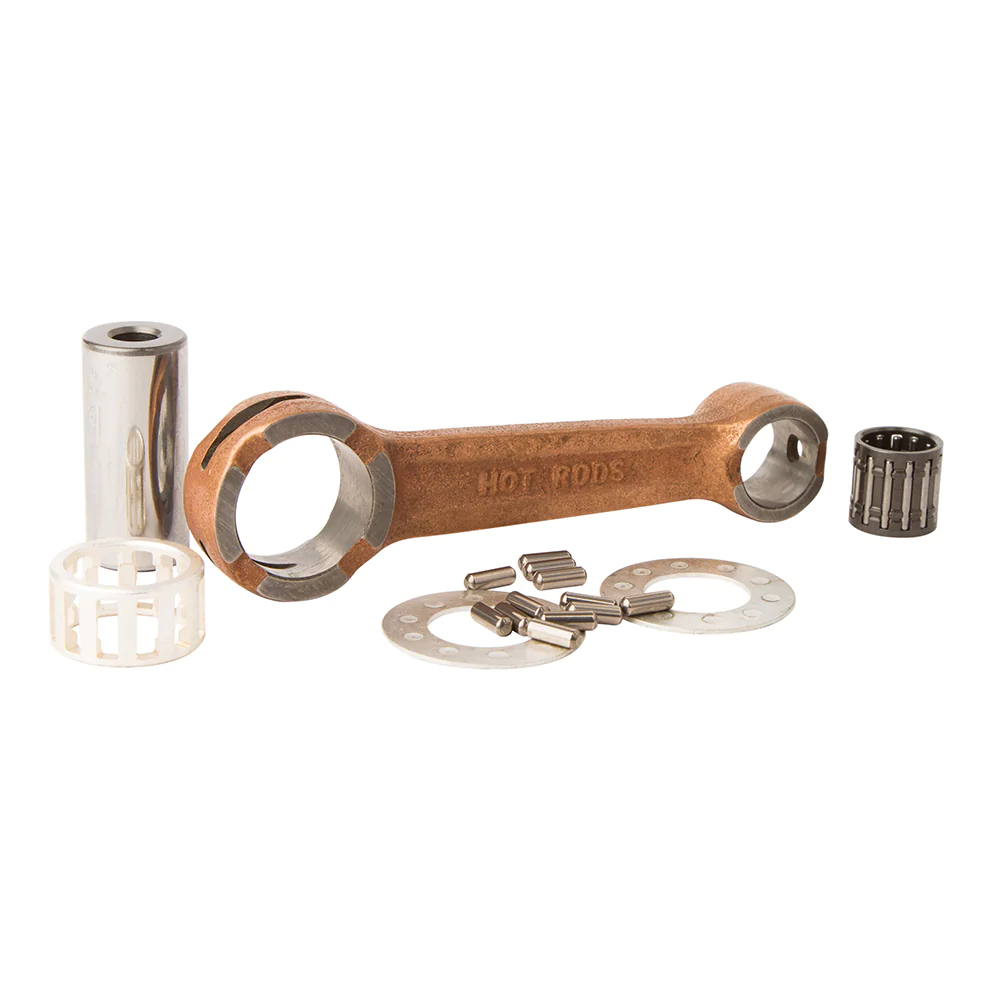

CONNECTING ROD KTM SX50 01-18, HOTROD 8135
Heavy-duty connecting rod kit designed as a direct OE replacement, offering superior strength and durability. Constructed from certified 8620 AISI steel, this kit provides reliable performance for high-rpm applications. Advanced design minimizes bearing race distortion and ensures long-lasting functionality. Fully compatible with Hot Rods and OE crankshafts. Manufactured from certified 8620 AISI steel for exceptional strength and durability. Big end design features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion. Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc. Latest caged needle roller bearing designs for enhanced longevity at high rpm. Thrust washers made from bronze phosphor and silver-coated for improved lubricity. Complete rod assembly includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers. Made in the U.S.A. Technical Specifications: Big End Bore (mm): 22.00 Big End Width (mm): Not specified Center to Center (mm): 85.00 Pin Diameter (mm): 16.00 Pin Length (mm): 36.00 Small End Bore (mm): 15.00 Small End Width (mm): Not specified Washer Thickness (mm): 0.85 Part Number: 8135
- SKU
- 56-869.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION
Hot Rods Heavy-Duty Connecting Rod for KTM SX50
Upgrade your KTM SX50's performance with this heavy-duty connecting rod kit from Hot Rods. Engineered as a direct original equipment replacement, this connecting rod offers superior strength and exceptional durability, making it ideal for high-rpm applications.
Key Features:
- Constructed from certified 8620 AISI steel for unparalleled strength and longevity.
- Features advanced big end design with strategically placed side scalloping and vent slots to minimize bearing race distortion at high engine speeds.
- Crankpins are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for enhanced durability.
- Incorporates the latest caged needle roller bearing designs to ensure extended longevity under high-rpm conditions.
- Thrust washers are made from bronze phosphor and silver-coated to improve lubricity.
- This complete rod assembly includes the connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.
- Proudly made in the U.S.A.
Technical Specifications:
- Big End Bore: 22.00 mm
- Center to Center Length: 85.00 mm
- Pin Diameter: 16.00 mm
- Pin Length: 36.00 mm
- Small End Bore: 15.00 mm
- Washer Thickness: 0.85 mm
