CONNECTING ROD SX-F350 KTM, HOT RODS 8702 77830015144
Heavy-duty connecting rod kit designed for demanding applications. This high-performance OE replacement kit ensures durability and strength. It includes all necessary components for a complete rebuild. Manufactured from certified 8620 AISI steel for superior strength. Uniquely designed big end with side scalloping and vent slots reduces high-RPM bearing race distortion. Crankpins made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc. Caged needle roller bearing design enhances longevity at high RPM. Thrust washers are silver-coated and crafted from bronze phosphor for added durability. Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Fully compatible with Hot Rods and OE crankshafts. Made in the USA. Technical Specifications: Centre to Centre: 102.00 mm, Big End Bore: 35.99 mm, Pin Diameter: 32.00 mm, Pin Length: 60.00 mm, Small End Bore: 18.00 mm. Cross-Reference OEM Part Numbers: KTM: 77830015144. Part Number: 56-946.HR.
- SKU
- 56-946.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION

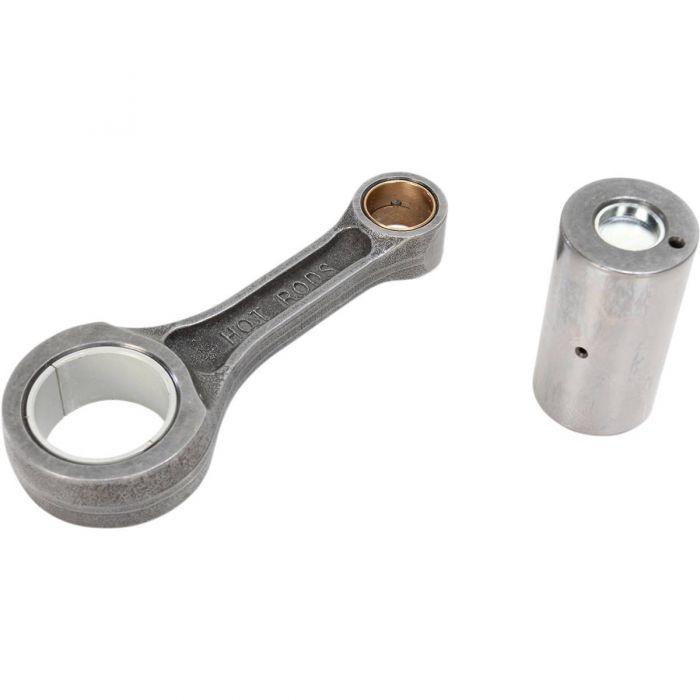

Hot Rods Connecting Rod Kit for KTM 350 SX-F/XC-F
This heavy-duty connecting rod kit from Hot Rods is engineered as a high-performance OE replacement, offering exceptional durability and strength for demanding applications. It is meticulously crafted from premium materials to ensure reliable performance.
Key Features:
- Constructed from certified 8620 AISI steel for superior strength and resilience.
- Features a uniquely designed big end with side scalloping and vent slots to minimize high-RPM bearing race distortion.
- Crankpins are made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced hardness and wear resistance.
- Incorporates a caged needle roller bearing design that significantly enhances longevity at high rotational speeds.
- Thrust washers are silver-coated and made from bronze phosphor, providing increased durability.
- This complete rod assembly includes the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
- Fully compatible with both Hot Rods and original equipment (OE) crankshafts.
- Proudly made in the USA.
Technical Specifications:
- Centre to Centre Measurement: 102.00 mm
- Big End Bore Diameter: 35.99 mm
- Crankpin Diameter: 32.00 mm
- Crankpin Length: 60.00 mm
- Small End Bore Diameter: 18.00 mm
