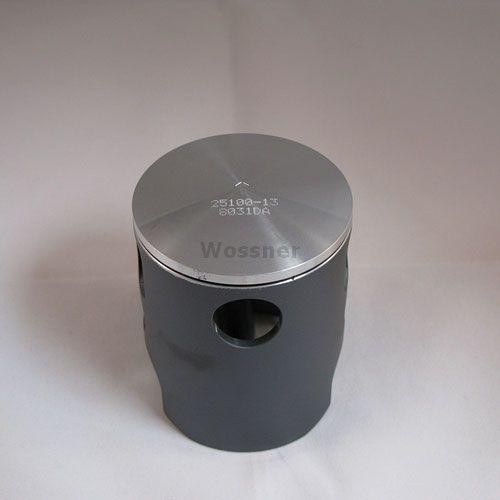

PISTON 73-81 MAICO 250 68.50, FORGED WOSSNER 8031D150 KIT
Wossner 68.50mm +1.50mm forged piston kit for Maico MC 250 and GS 250 models from 1973 to 1981. Bore size 68.50mm (68.43mm). Displacement 245cc. Stroke 52.30mm. Clearance 0.06mm. Compression Ratio 2-stroke. Compression Height 25.00mm. Lock Part Number CW18. Pin Part Number WP033. Ring Set Part Number RSB6850. Manufactured in Germany. Features superior strength and durability, optimized heat transfer for improved combustion efficiency, elliptical design for uniform bearing surface and reduced localized pressure, and precision engineering to prevent piston collapse. Weight 358g.
- SKU
- 56-W140+1.50
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION

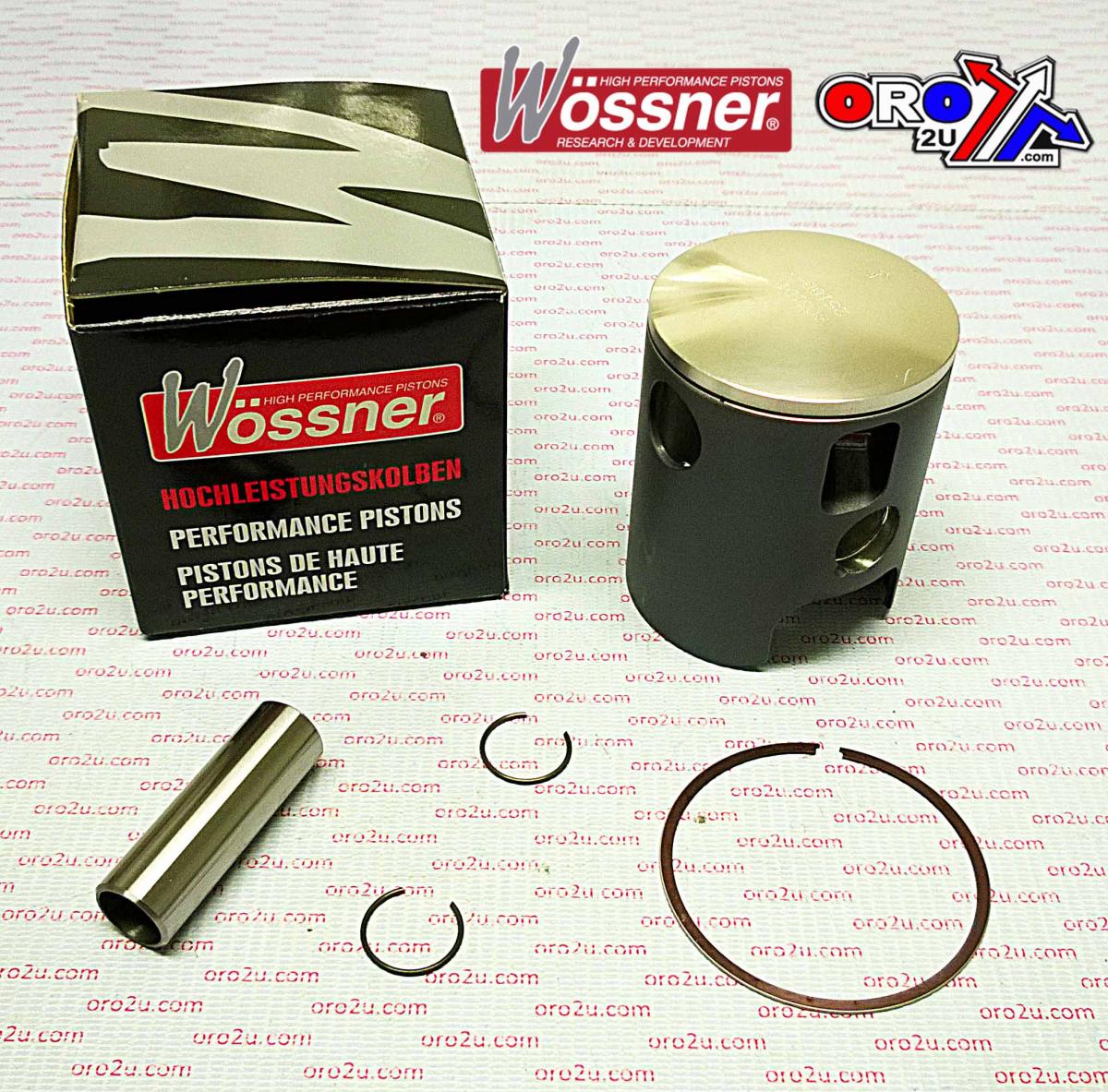

Wossner Forged Piston Kit 68.50mm +1.50mm
Upgrade your motorcycle's performance with this high-quality Wossner forged piston kit. Engineered for strength and precision, this piston is designed to enhance combustion efficiency and ensure uniform heat transfer to the cylinder walls. The advanced elliptical design effectively distributes thrust loads, preventing localized pressure and the risk of piston collapse. Crafted in Germany, this piston exemplifies superior manufacturing standards for reliable and enduring performance.
Key Features
- Wossner forged piston for exceptional strength and durability.
- Optimized for efficient heat transfer and improved combustion.
- Elliptical design ensures uniform bearing surface and reduces localized pressure.
- Precision engineered to prevent piston collapse.
- Manufactured in Germany to rigorous quality standards.
Specifications
- Bore Size: 68.50mm (68.43mm)
- Oversize: +1.50mm
- Displacement: 245cc
- Stroke: 52.30mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke
- Compression Height: 25.00mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6850
