PISTON 73-81 MAICO 250 69.00, FORGED WOSSNER 8031D200 KIT
Wossner 69.00mm forged piston kit with +2.00mm oversize is engineered for strength and precision, ensuring efficient heat transfer and uniform expansion. The elliptical design distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, this piston meets high-quality standards for reliable performance. Specifications include a bore size of 69.00mm (68.93mm), displacement of 245cc, stroke of 52.30mm, clearance of 0.06mm, 2-stroke compression ratio, 25.00mm compression height, lock part number CW18, pin part number WP033, and ring set part number RSB6900.
- SKU
- 56-W140+2.00
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION

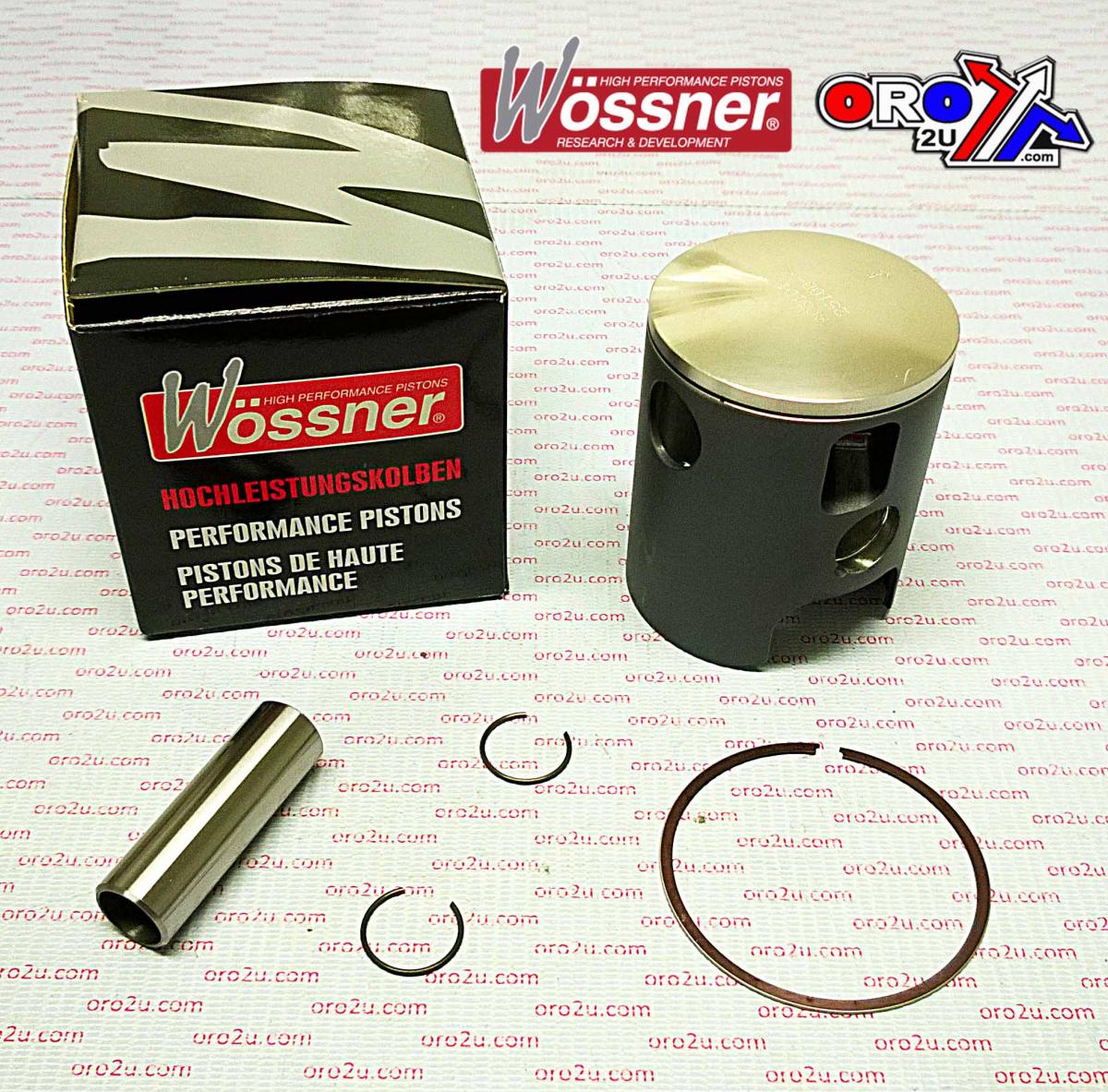

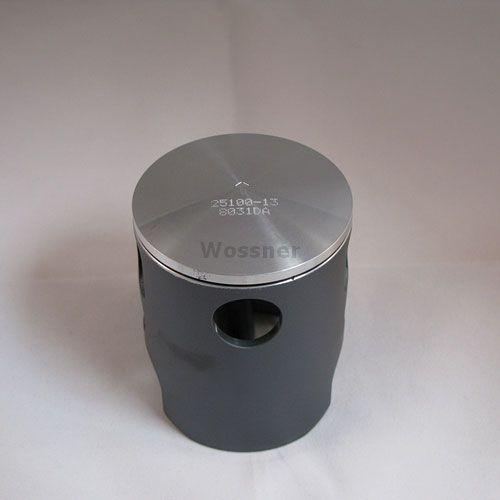

Wossner Forged Piston Kit 69.00mm +2.00mm
Experience enhanced performance and durability with the Wossner Forged Piston Kit. This precision-engineered piston is designed for optimal heat transfer to the cylinder walls, ensuring uniform expansion and preventing localized pressure for improved combustion efficiency. The unique elliptical design effectively distributes thrust loads, minimizing the risk of piston collapse and providing a consistent bearing surface.
Key Features:
- Wossner forged construction for exceptional strength and longevity.
- Engineered for superior heat transfer and uniform cylinder wall expansion.
- Elliptical piston profile for even thrust load distribution and reduced pressure points.
- Precision manufacturing to prevent piston collapse under stress.
- Manufactured in Germany, meeting high-quality standards.
Specifications:
- Bore Size: 69.00mm (68.93mm actual)
- Oversize: +2.00mm
- Displacement: 245cc
- Stroke: 52.30mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke
- Compression Height: 25.00mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6900
