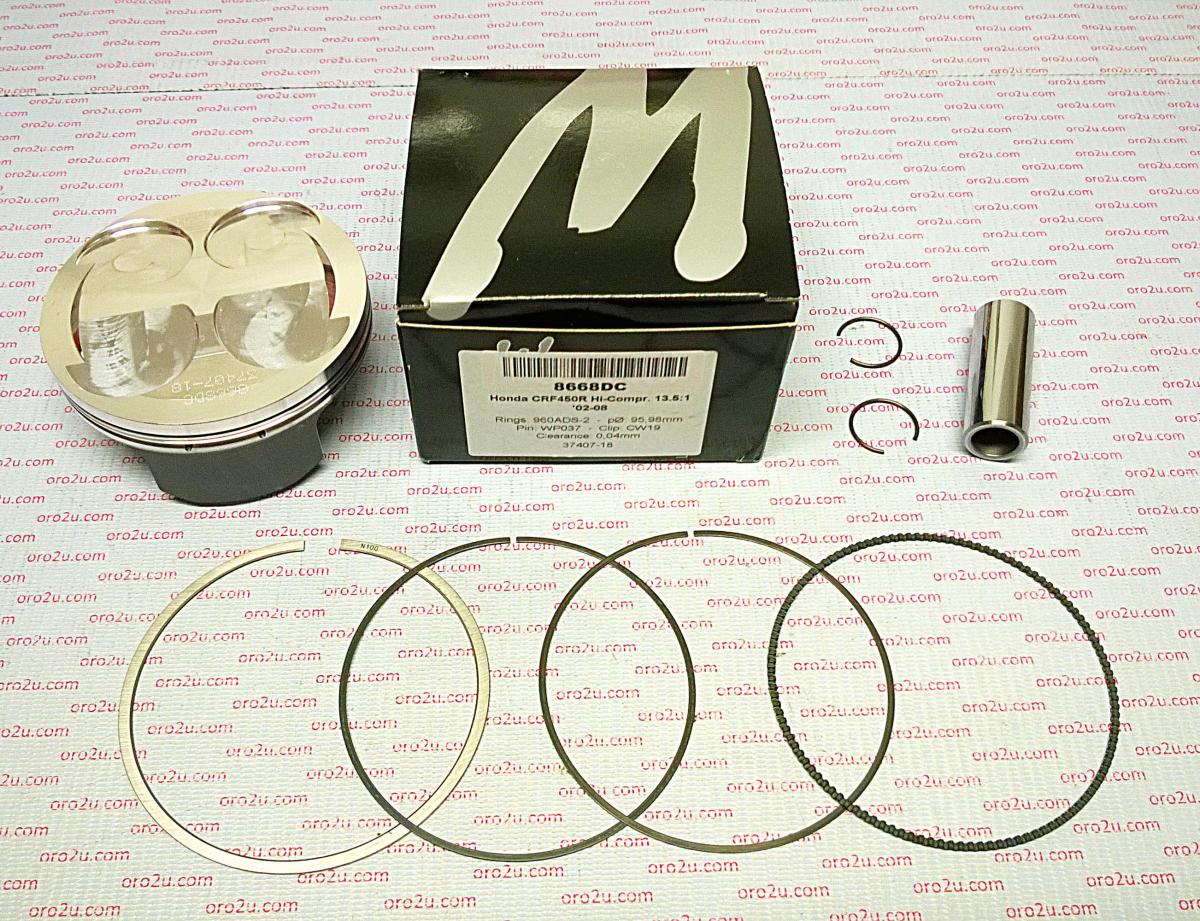

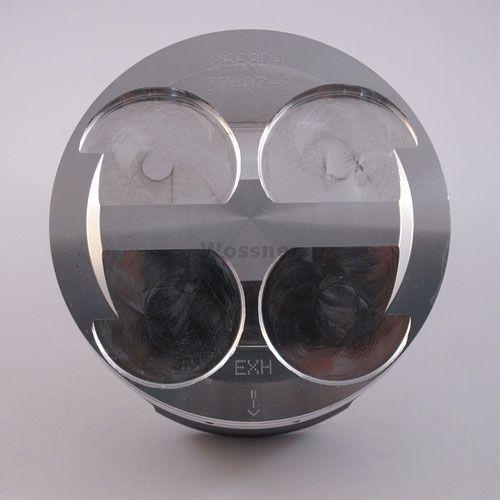

PISTON KIT 02-08 CRF450R HC 96, FORGED WOSSNER 8668DB
Wossner 96.01mm high-compression forged piston kit with a 13.50:1 compression ratio for enhanced engine performance. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Features include forged construction for strength and longevity, optimized heat transfer for cooling, elliptical design for even load distribution, and a two-ring design for improved sealing and reduced friction. Manufactured in Germany to high-quality standards. Bore Size: 96.01mm, Actual Bore Diameter: 95.97mm, Displacement: 449 cm³, Stroke: 62.10mm, Clearance: 0.04mm, Dome Volume: +3.50 cm³, Compression Height: 24.00mm. Includes Gasket Part Number D4006 / D4007, Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 960ADS, and Rod Part Number P4026. Wossner Part Number 8668DB.
- SKU
- 56-W4822.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner High-Compression Forged Piston Kit
Upgrade your engine's performance with this high-compression, forged piston kit from Wossner. Engineered in Germany, this piston is designed for superior strength, durability, and optimized engine function.
The advanced forged construction provides exceptional strength, while the high-compression design significantly boosts engine power. Its elliptical shape ensures uniform bearing surfaces, effectively distributing thrust loads and preventing localized pressure that can lead to piston collapse. This precise design promotes even load distribution for enhanced longevity.
Optimized for efficient heat transfer, this piston helps maintain cooler combustion chamber temperatures, contributing to overall engine efficiency and performance. The two-ring design further enhances sealing capabilities and reduces friction, allowing your engine to operate at its peak.
Key Features:
- High-compression design for increased engine performance
- Forged construction for enhanced strength and longevity
- Optimized heat transfer for efficient cooling
- Elliptical design prevents piston collapse and ensures even load distribution
- Two-ring design for improved sealing and reduced friction
- Manufactured in Germany for high-quality standards
Specifications:
- Bore Size: 96.01mm
- Actual Bore Diameter: 95.97mm
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +3.50 cm³
- Compression Height: 24.00mm
Included Components:
- Gasket Part Number: D4006 / D4007
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 960ADS
- Rod Part Number: P4026
