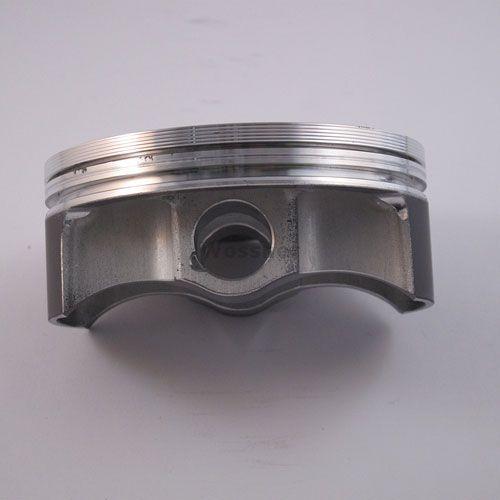

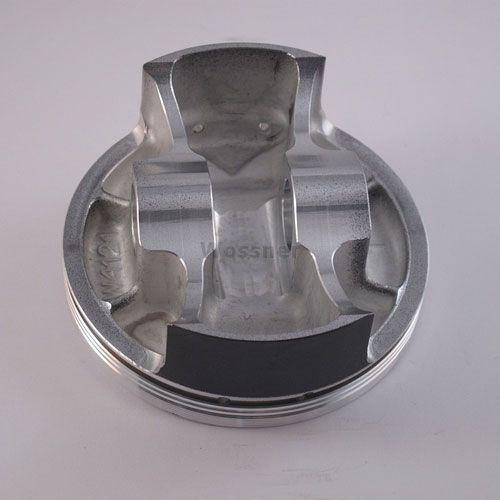

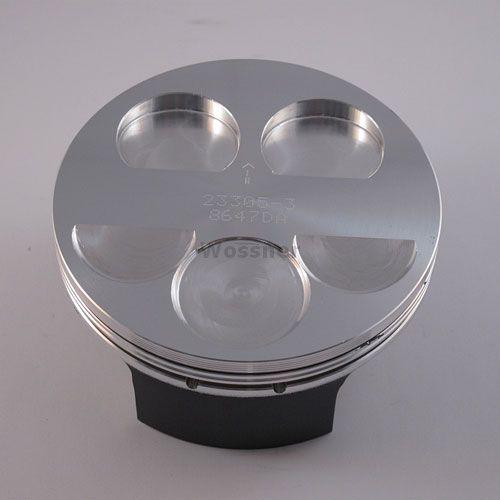

PISTON KIT 05 YZF/WR450F 95 HC, WOSSNER 8647DC
Wossner forged piston kit with high compression for performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Features include a high-compression forged piston, optimized heat transfer, elliptical design, and German manufacturing. Specifications: Bore Size 95.02mm, Actual Bore Diameter 94.97mm, Displacement 449 cm³, Stroke 63.40mm, Clearance 0.05mm, Wossner Compression Ratio 13.50:1, OEM Compression Ratio 12.30:1, Dome Volume -6.30 cm³, Compression Height 23.50mm. Included components: Lock Part Number CW18, Pin Part Number WP053, Ring Set Part Number 950ADS-2, Rod Part Number P4007. Weight 400g.
- SKU
- 56-W202.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner High Compression Forged Piston Kit - 95mm Bore
Upgrade your motorcycle's performance with the Wossner High Compression Forged Piston Kit. Engineered in Germany, this kit is designed for demanding riders seeking enhanced power and efficiency. The advanced forged construction ensures durability and optimal performance under high-stress conditions.
Key Features:
- High-compression forged piston for maximum performance gains.
- Precisely engineered for optimized heat transfer to cylinder walls, promoting efficient combustion and engine longevity.
- Features an innovative elliptical design that maintains a uniform bearing surface under heat expansion.
- This design effectively reduces localized pressure and evenly distributes thrust loads, preventing piston collapse and ensuring consistent operation.
- Manufactured to exacting German quality standards for reliability.
Specifications:
- Bore Size: 95.02mm
- Actual Bore Diameter: 94.97mm
- Displacement: 449 cm³
- Stroke: 63.40mm
- Piston Clearance: 0.05mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.30:1
- Dome Volume: -6.30 cm³
- Compression Height: 23.50mm

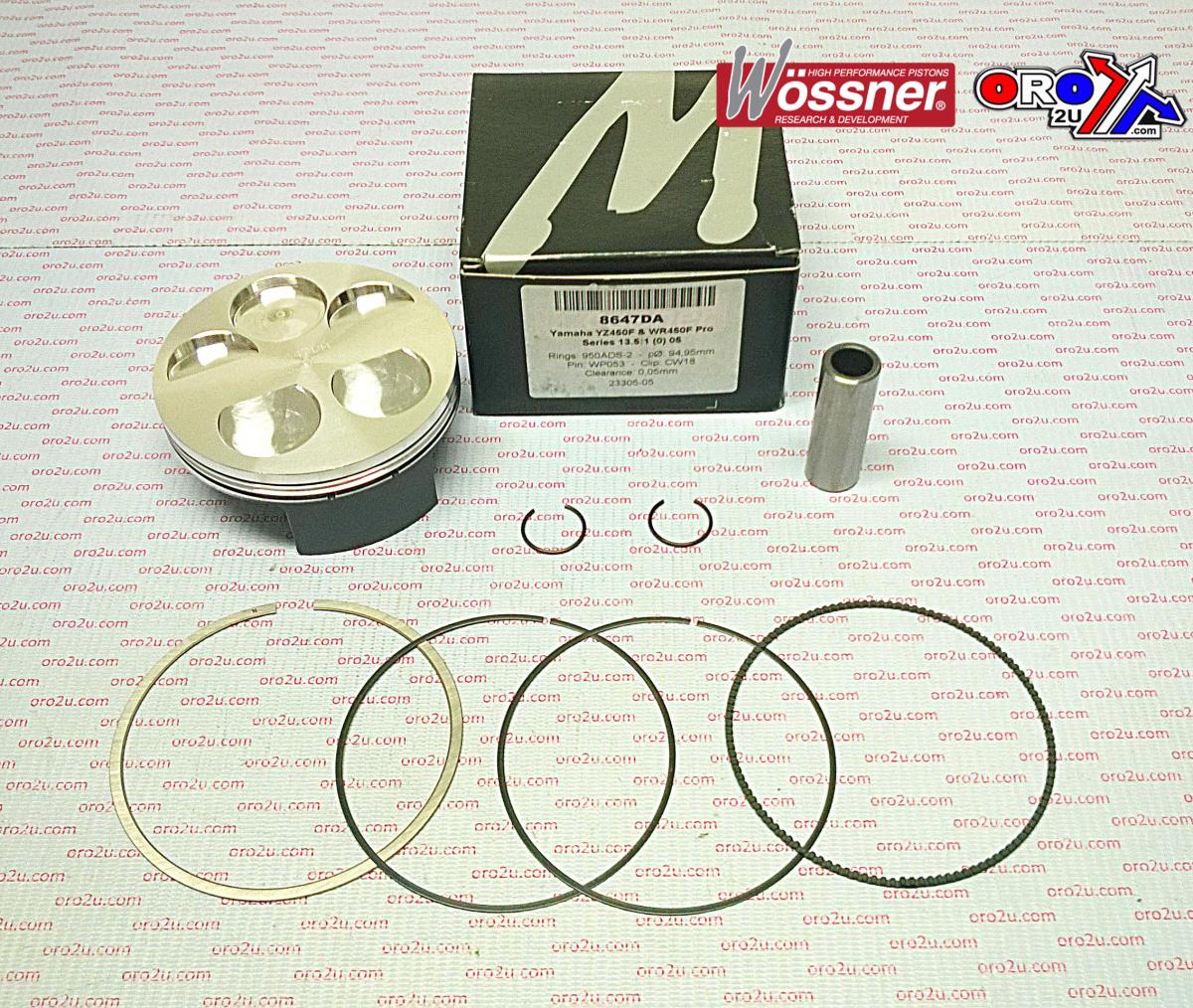

Included Components:
- Lock Part Number: CW18
- Pin Part Number: WP053
- Ring Set Part Number: 950ADS-2
- Rod Part Number: P4007
