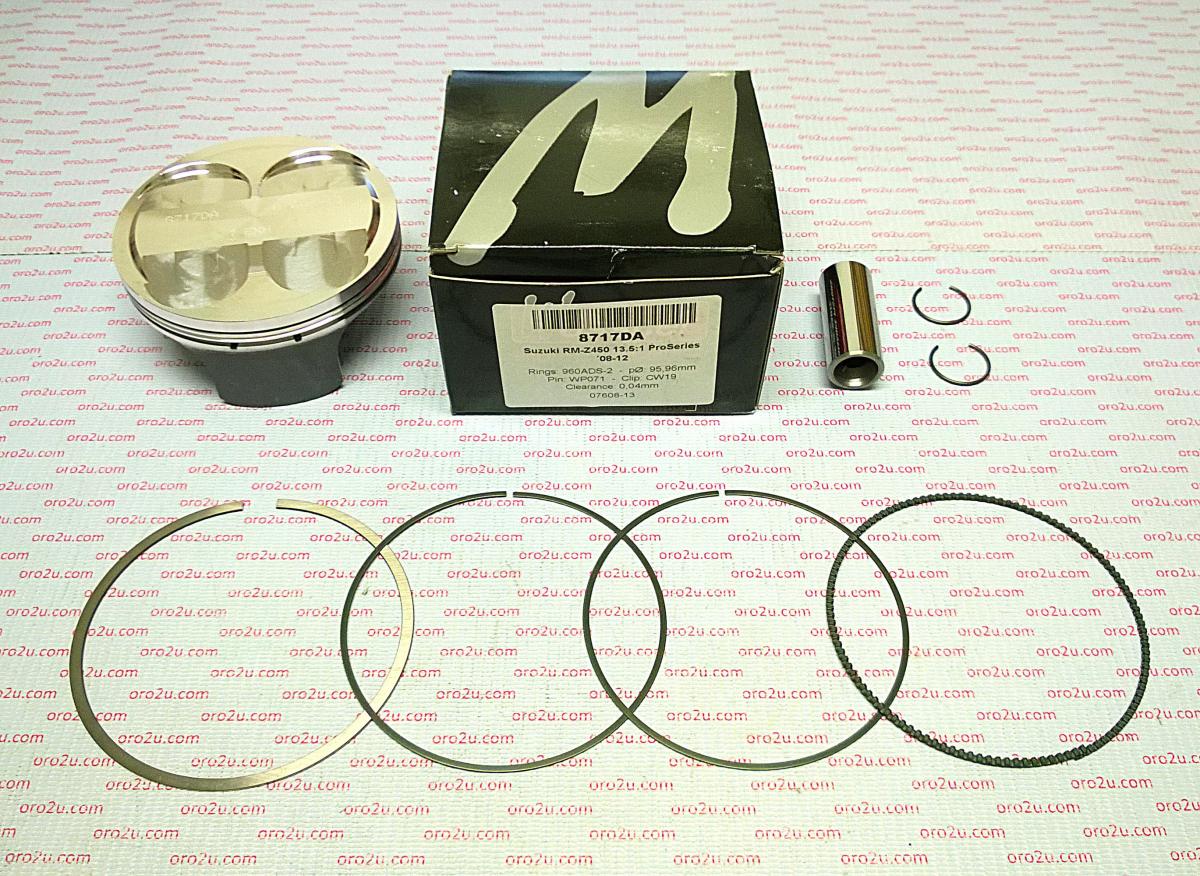

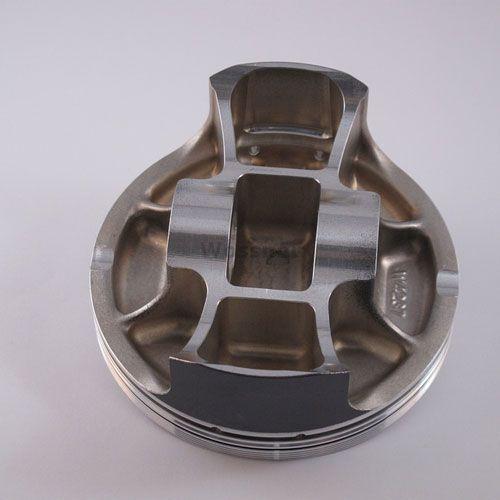

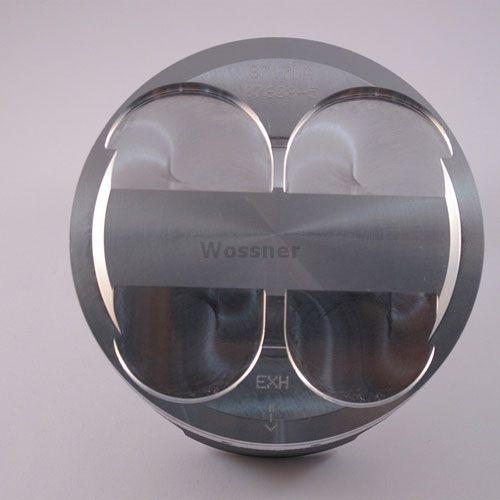

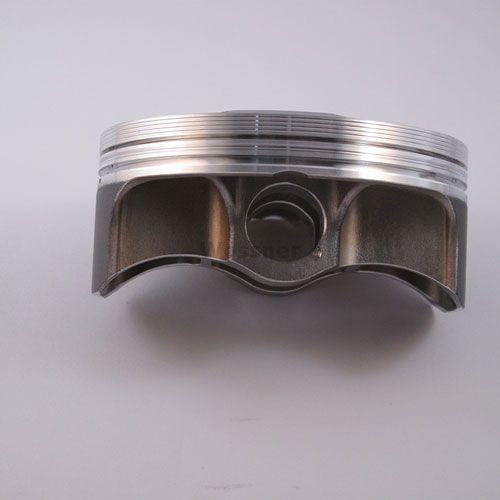

PISTON KIT 08-12 RMZ450 96 HC, FORGED WOSSNER 8717DC
Wossner forged high-compression piston kit with a 96.02mm bore (95.98mm) for RM-Z450. This piston ensures optimal combustion performance with superior strength and heat transfer efficiency. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features include a two-ring design for reduced friction and improved efficiency, optimized heat transfer for enhanced durability, and an elliptical design for uniform bearing surface under heat expansion. Specifications: Bore Size 96.02mm (95.98mm), Compression Ratio 13.5:1, Part Number 8717DC, Lock Part Number CW19, Pin Part Number WP071, Ring Set Part Number 960ADS-2, Rod Part Number P4013, Displacement 449 cm³, Stroke 62.10mm, Clearance 0.04mm, Wossner Compression Ratio 13.2:1, OEM Compression Ratio 12.2:1, Dome Volume +3.40 cm³, Compression Height 23.10mm. Weight 424g.
- SKU
- 56-W307.C.WO
- Brand
- Wossner
- Availability
- In Stock (6)
FULL DESCRIPTION
Wossner High-Compression Forged Piston Kit - 96.02mm Bore
Upgrade your engine's performance with this Wossner forged high-compression piston kit. Engineered for superior strength and optimized combustion, this piston is designed to enhance the power and durability of your motorcycle.
Key Features
- Forged Construction: Provides exceptional strength and resilience under demanding conditions.
- High Compression Ratio: Increases engine power and performance.
- Elliptical Design: Ensures even distribution of thrust loads, preventing localized pressure and piston collapse, even under extreme heat.
- Optimized Heat Transfer: Enhances durability and reliability by efficiently managing engine temperatures.
- Two-Ring Design: Contributes to reduced friction and improved operational efficiency.
- Precision Manufacturing: Made in Germany to exacting standards for superior quality.
Specifications
- Bore Size: 96.02mm (Nominal 95.98mm)
- Compression Ratio: 13.5:1 (Wossner); 13.2:1 (Wossner); 12.2:1 (OEM)
- Dome Volume: +3.40 cm³
- Compression Height: 23.10mm
- Stroke: 62.10mm
- Clearance: 0.04mm
- Displacement: 449 cm³
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4013
