PISTON KIT 09-12 KXF450 HC 96, FORGED WOSSNER 8769DB

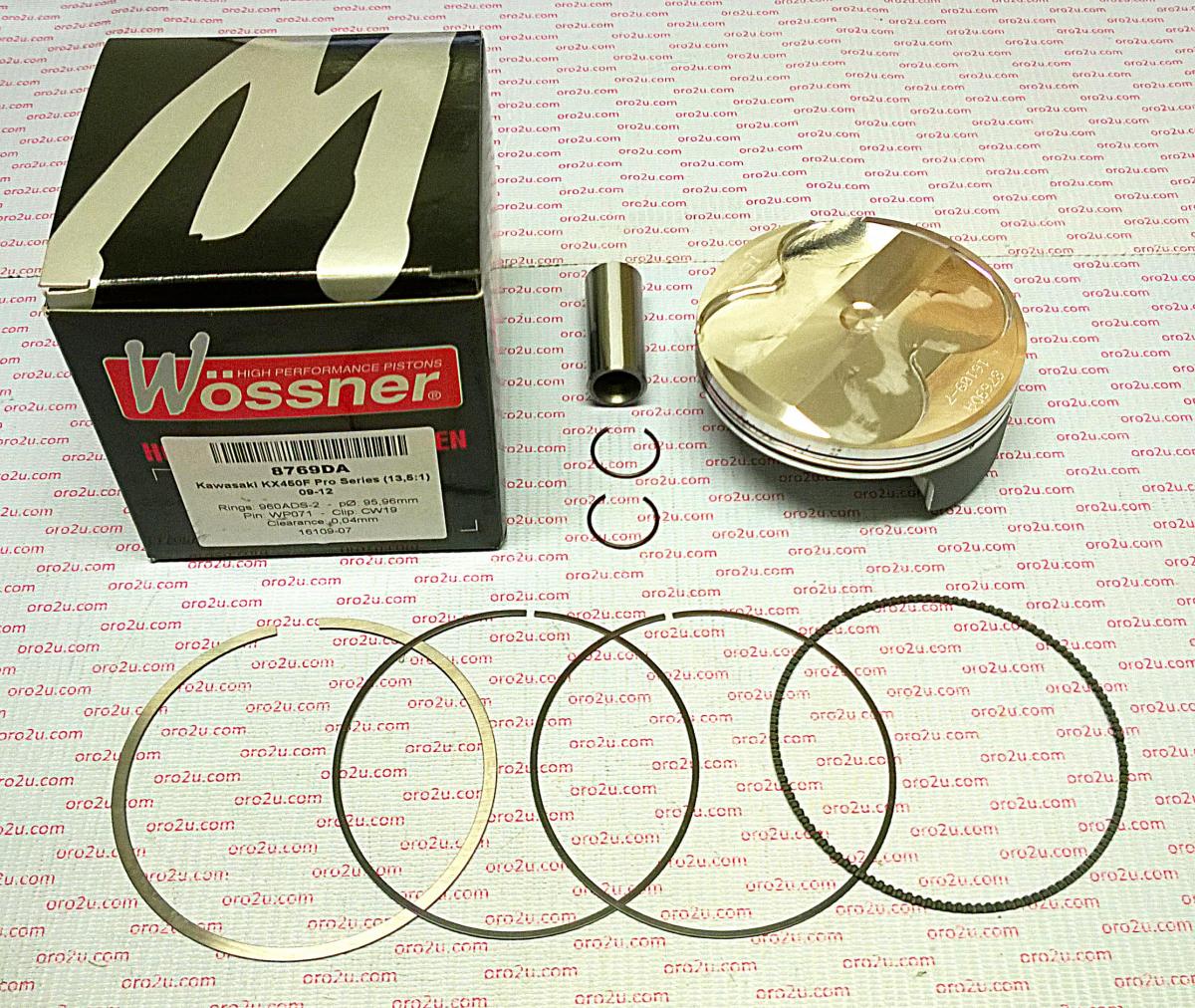

Wossner forged high-compression piston kit with a 96.01mm bore (95.97mm). Features a high-compression forged piston for increased performance and optimized heat transfer for enhanced durability. The elliptical design ensures uniform bearing surface under heat expansion and even thrust load distribution to prevent piston collapse. Manufactured in Germany. Specifications include a bore size of 96.01mm (95.97mm), compression ratio of 13.5:1, part number 8769DB, lock part number CW19, pin part number WP071, ring set part number 960ADS-2, rod part number P4020, displacement of 449 cm³, stroke of 62.10mm, clearance of 0.04mm, OEM compression ratio of 12.5:1, dome volume of +4.20 cm³, and compression height of 23.70mm.
- SKU
- 56-W309.B.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit 96.01mm Bore
Enhance your engine's performance with this Wossner forged high-compression piston kit. Engineered for superior strength and efficient heat transfer, this piston is designed to optimize combustion for increased power and durability. The innovative elliptical design ensures even distribution of thrust loads, effectively preventing localized pressure and piston collapse even under extreme conditions.
Key Features:
- High-compression forged piston for boosted performance
- Optimized heat transfer for improved durability and longevity
- Elliptical piston design for uniform bearing surface during heat expansion
- Even thrust load distribution to prevent piston collapse
- Precision manufactured in Germany
Specifications:
- Bore Size: 96.01mm (actual measurement 95.97mm)
- Compression Ratio: 13.5:1 (compared to OEM 12.5:1)
- Dome Volume: +4.20 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Compression Height: 23.70mm
- Displacement: 449 cm³
- Wossner Part Number: 8769DB
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4020
