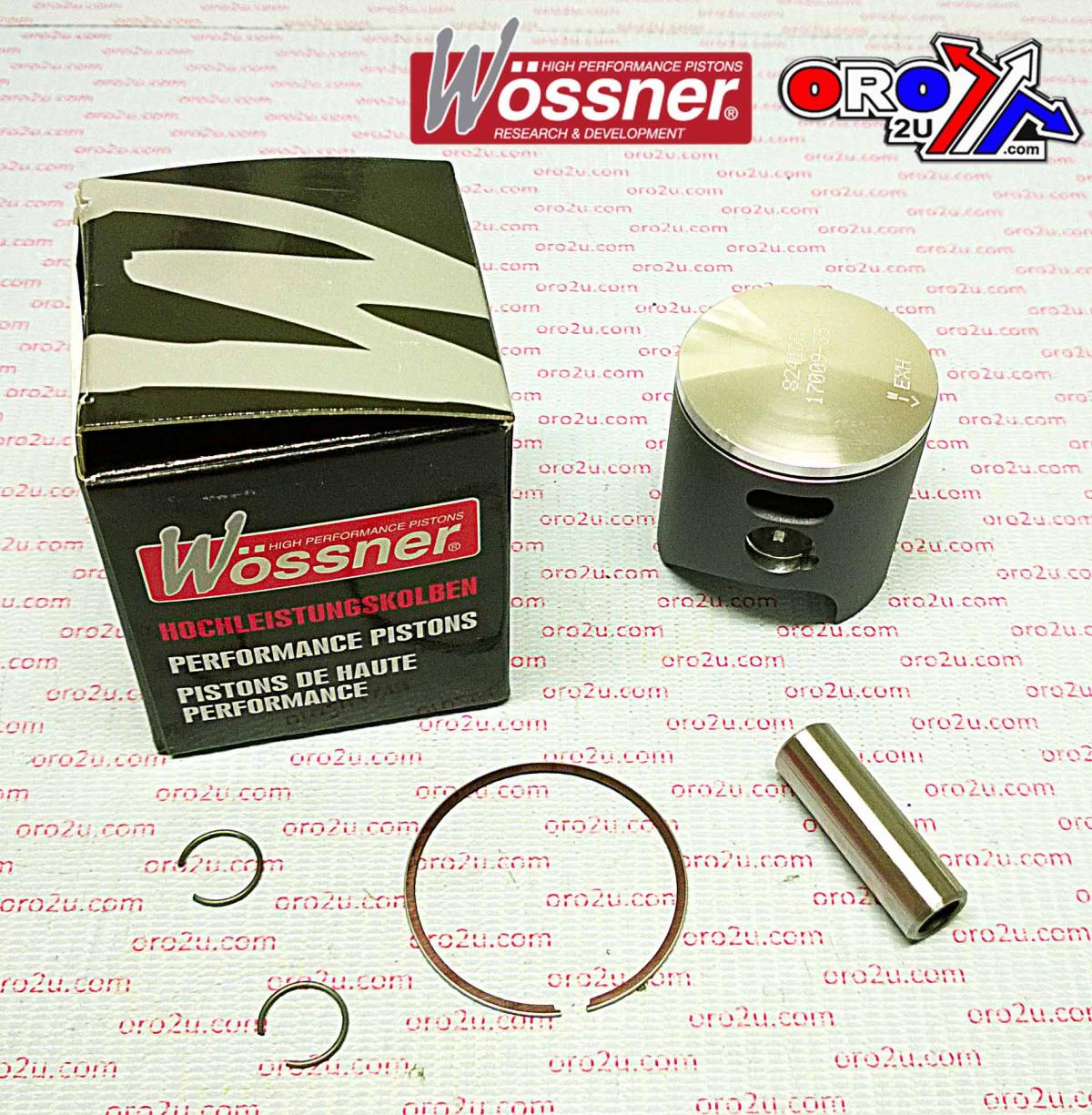

PISTON KIT 09-15 KTM65 SX 45.0, FORGED WOSSNER 8241DD
Wossner forged piston kit with a 45.03mm bore (44.99mm) for KTM SX65. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features forged piston for increased strength and durability, optimized heat transfer for improved performance, elliptical design ensures uniform bearing surface under heat expansion, even thrust load distribution to prevent piston collapse, and manufactured in Germany. Specifications include bore size 45.03mm (44.99mm), part number 8241DD, lock part number CW12, pin part number WP091, ring set part number RSB4500, displacement 63 cm³, stroke 40.80mm, clearance 0.04mm, compression ratio 2-stroke, and compression height 21.60mm.
- SKU
- 56-W313.D.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner 8241DD Forged Piston Kit 45.03mm for KTM 65 SX
Upgrade your KTM 65 SX with the Wossner 8241DD forged piston kit, engineered for superior performance and durability. This high-quality piston features a 45.03mm bore and is meticulously crafted in Germany to deliver exceptional strength and heat transfer efficiency. The advanced elliptical design ensures even distribution of thrust loads, preventing localized pressure and mitigating the risk of piston collapse under extreme operating conditions.
Key Features:
- Forged piston construction for enhanced strength and longevity.
- Optimized heat transfer capabilities for improved engine performance.
- Elliptical piston design promotes uniform bearing surface during thermal expansion.
- Even thrust load distribution reduces stress and prevents piston collapse.
- Manufactured to exacting standards in Germany.
Specifications:
- Bore Size: 45.03mm (measured at 44.99mm)
- Piston Part Number: 8241DD
- Lock Ring Part Number: CW12
- Wrist Pin Part Number: WP091
- Ring Set Part Number: RSB4500
- Engine Displacement: 63 cm³
- Stroke: 40.80mm
- Piston Clearance: 0.04mm
- Compression Type: 2-stroke
- Compression Height: 21.60mm
