PISTON KIT 12-18 CRF150R 66.00, WOSSNER 8862DC HC
Wossner forged piston kit for high-performance applications. Features forged piston construction for enhanced strength and durability, elliptical design for uniform bearing surface under heat expansion, optimized heat dissipation, and prevention of localised pressure and piston collapse. Manufactured in Germany. Specifications include a 66.02mm bore size, 65.97mm actual piston size, 149 cm³ displacement, 43.80mm stroke, 0.05mm piston clearance, 12.20:1 Wossner compression ratio, 111.70:1 OEM compression ratio, -0.80 cm³ dome volume, 20.60mm compression height, CW14 lock part number, WP058 pin part number, and 660XKS ring set part number.
- SKU
- 56-W921.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

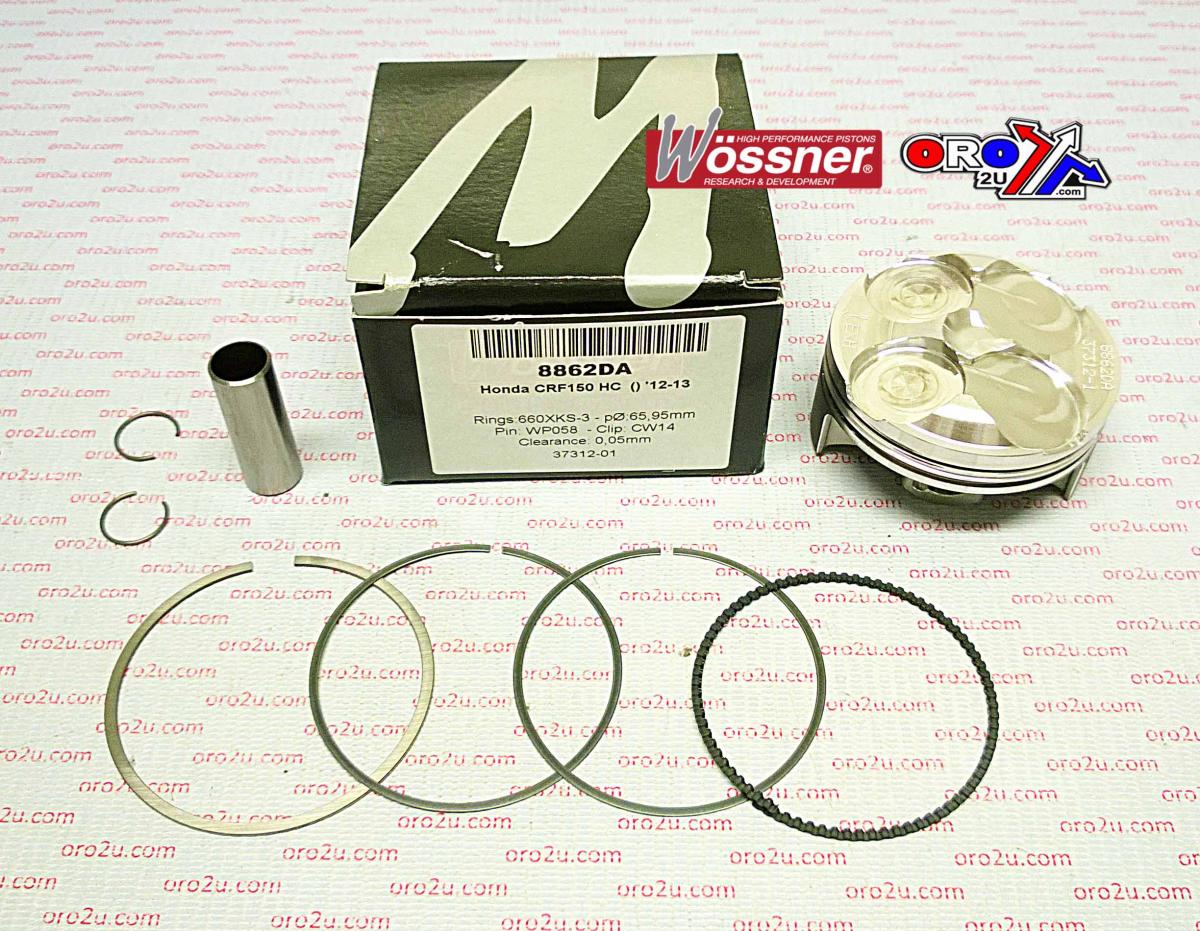

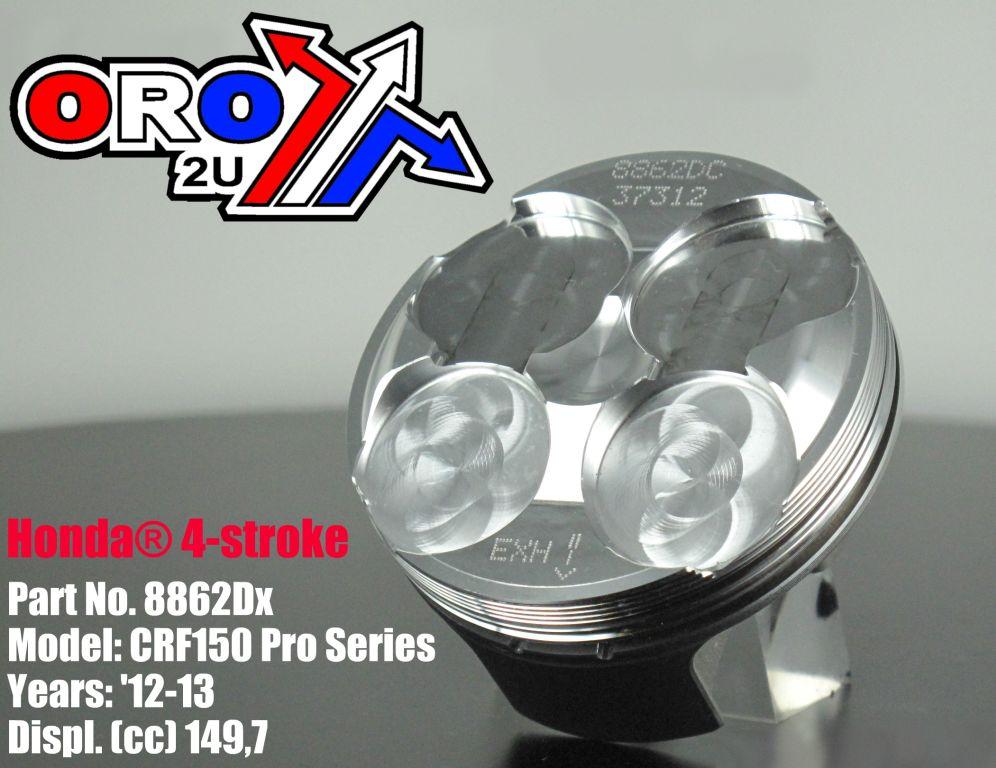

Wossner Forged Piston Kit for Honda CRF150R
Enhance your motorcycle's performance with this high-quality Wossner forged piston kit. Engineered for demanding use, this piston is designed for durability and optimal heat management, ensuring consistent power output under stress.
Key Features
- Forged Construction: Provides superior strength and longevity compared to cast pistons.
- Elliptical Design: Ensures an even bearing surface during thermal expansion for reduced wear.
- Optimised Heat Dissipation: Efficiently transfers heat from the combustion chamber to the cylinder walls, preventing overheating.
- Pressure Distribution: Designed to prevent localized pressure points and piston collapse, maintaining integrity.
- German Manufacturing: Built with precision and quality from Germany.
Specifications
- Bore Size: 66.02mm
- Actual Piston Size: 65.97mm
- Display Displacement: 149 cm³
- Stroke: 43.80mm
- Piston Clearance: 0.05mm
- Wossner Compression Ratio: 12.20:1
- OEM Compression Ratio: 111.70:1
- Dome Volume: -0.80 cm³
- Compression Height: 20.60mm
- Lock Part Number: CW14
- Pin Part Number: WP058
- Ring Set Part Number: 660XKS
