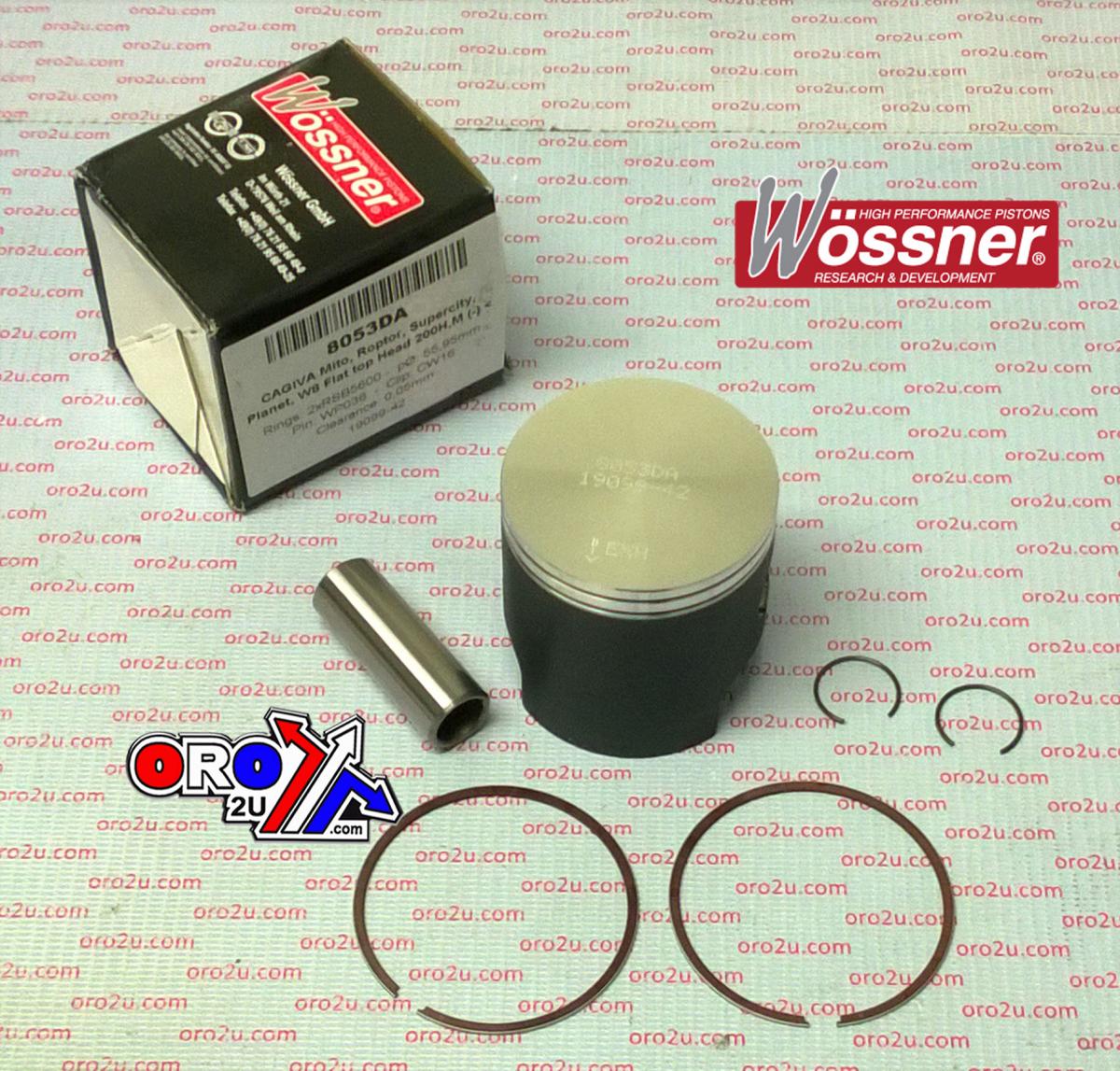

PISTON KIT 125 MITO 93-8 56mm, CAGIVA 8053DA WOSSNER
Wossner forged piston kit, standard size replacement for Cagiva 125cc two-stroke models including Mito, Raptor, Supercity, Planet, W8, and Head 200H,M from 2000 to 2012. Features forged piston construction for high strength and reliability, elliptical design for consistent bearing surface during heat expansion, promotes efficient heat transfer, and minimises piston collapse risk. Manufactured in Germany. Bore Size: 56.00mm. Display Displacement: 124 cm³. Stroke: 50.60mm. Piston Clearance: 0.05mm. Wossner Compression Ratio: 2-stroke. OEM Compression Ratio: 2-stroke. Dome Volume: Flat. Compression Height: 25.00mm. Lock Part Number: CW16. Pin Part Number: WP036. Ring Set Part Number: RDB5600. OEM Part Numbers Cross-Reference: 56-W940+00A.WO.
- SKU
- 56-W940+00A.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit 56mm
This Wossner forged piston kit is a standard-size replacement designed for 125cc two-stroke engines. Built to deliver durability and performance, it is ideal for high-revving small-capacity engines.
Key Features
- Forged piston construction ensures high strength and reliability.
- Elliptical design provides a consistent bearing surface during heat expansion.
- Promotes efficient heat transfer from the combustion chamber to the cylinder walls.
- Even distribution of thrust loads minimizes piston collapse risk.
- Manufactured in Germany.
Specifications
- Bore Size: 56.00mm
- Stroke: 50.60mm
- Piston Clearance: 0.05mm
- Dome Volume: Flat
- Compression Height: 25.00mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RDB5600
