PISTON KIT 125 MITO 93-8 56mm, CAGIVA 8053DB WOSSNER

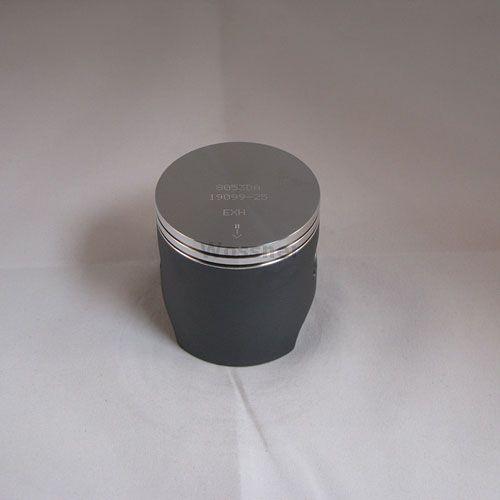

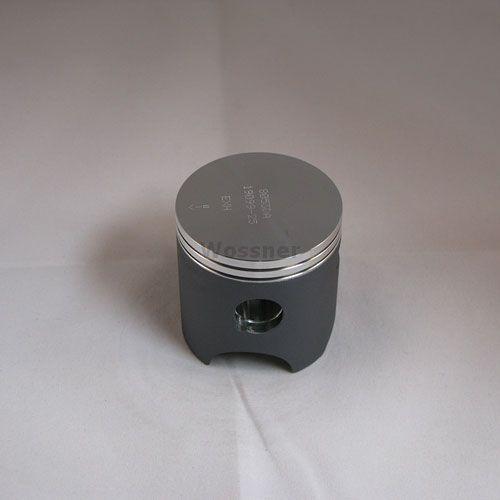

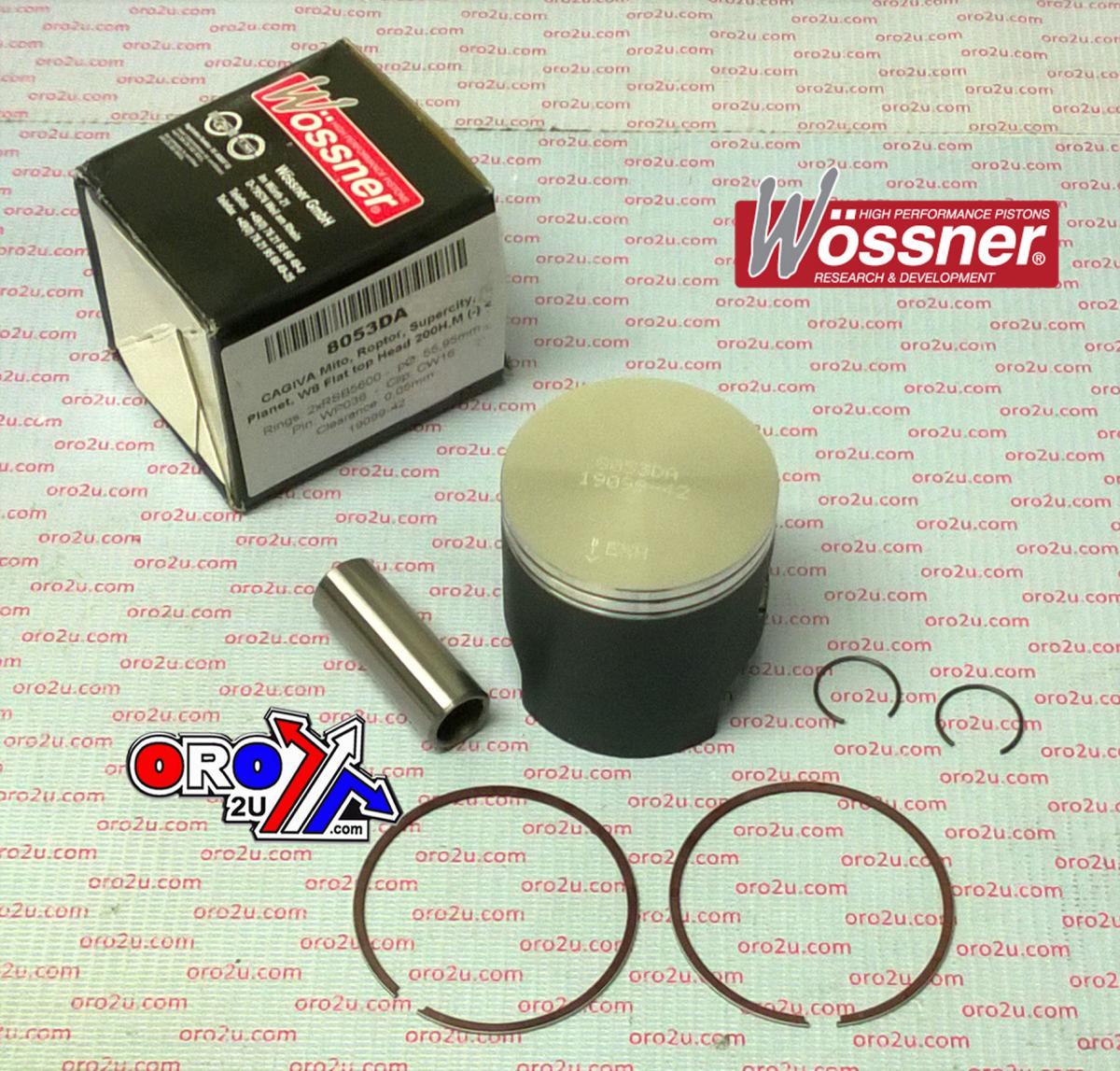

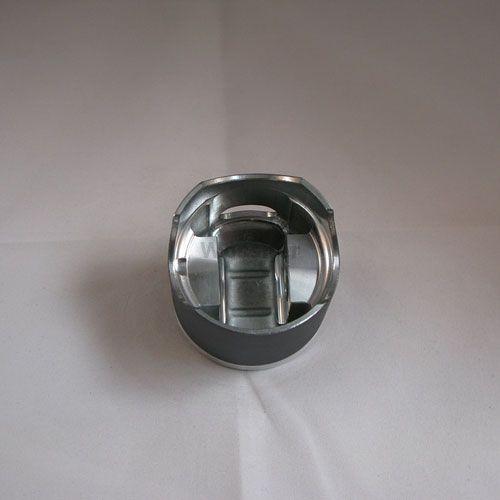

Wossner forged piston kit 56mm bore size, actual piston size 55.96mm. This is a +0.01mm oversize replacement for 125cc two-stroke engines. Features a forged piston design for maximum strength and resistance to wear. The elliptical profile ensures a uniform bearing surface during thermal expansion. Optimized for efficient combustion heat transfer to cylinder walls and reduces localised pressure and risk of piston collapse. Manufactured in Germany. Display displacement 124 cm³, stroke 50.60mm, piston clearance 0.05mm. Compression ratio 2-stroke, dome volume flat, compression height 25.00mm. Lock part number CW16, pin part number WP036, ring set part number 2 x RSB5600. OEM Part Number cross-reference: 56-W940+00B.WO.
- SKU
- 56-W940+00B.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit 56mm - Enhanced Performance for Your Motorcycle
Upgrade your motorcycle's engine performance and durability with this Wossner forged piston kit. Engineered for precision and strength, this kit is designed as a 56mm replacement for various 125cc two-stroke engines, offering a 0.01mm oversize bore for optimized performance and a reliable fit.
Key Features:
- Forged Piston Design: Provides maximum strength and superior resistance to wear, ensuring longevity.
- Elliptical Profile: Guarantees a uniform bearing surface during thermal expansion for consistent engine operation.
- Optimized Combustion: Designed for efficient heat transfer to the cylinder walls, reducing localized pressure and the risk of piston collapse.
- High-Quality Manufacturing: Precision-engineered and manufactured in Germany for exceptional quality and reliability.
Specifications:
- Bore Size: 56.00mm
- Actual Piston Size: 55.96mm
- Displacement: 124 cm³
- Stroke: 50.60mm
- Piston Clearance: 0.05mm
- Dome Volume: Flat
- Compression Height: 25.00mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: 2 x RSB5600
