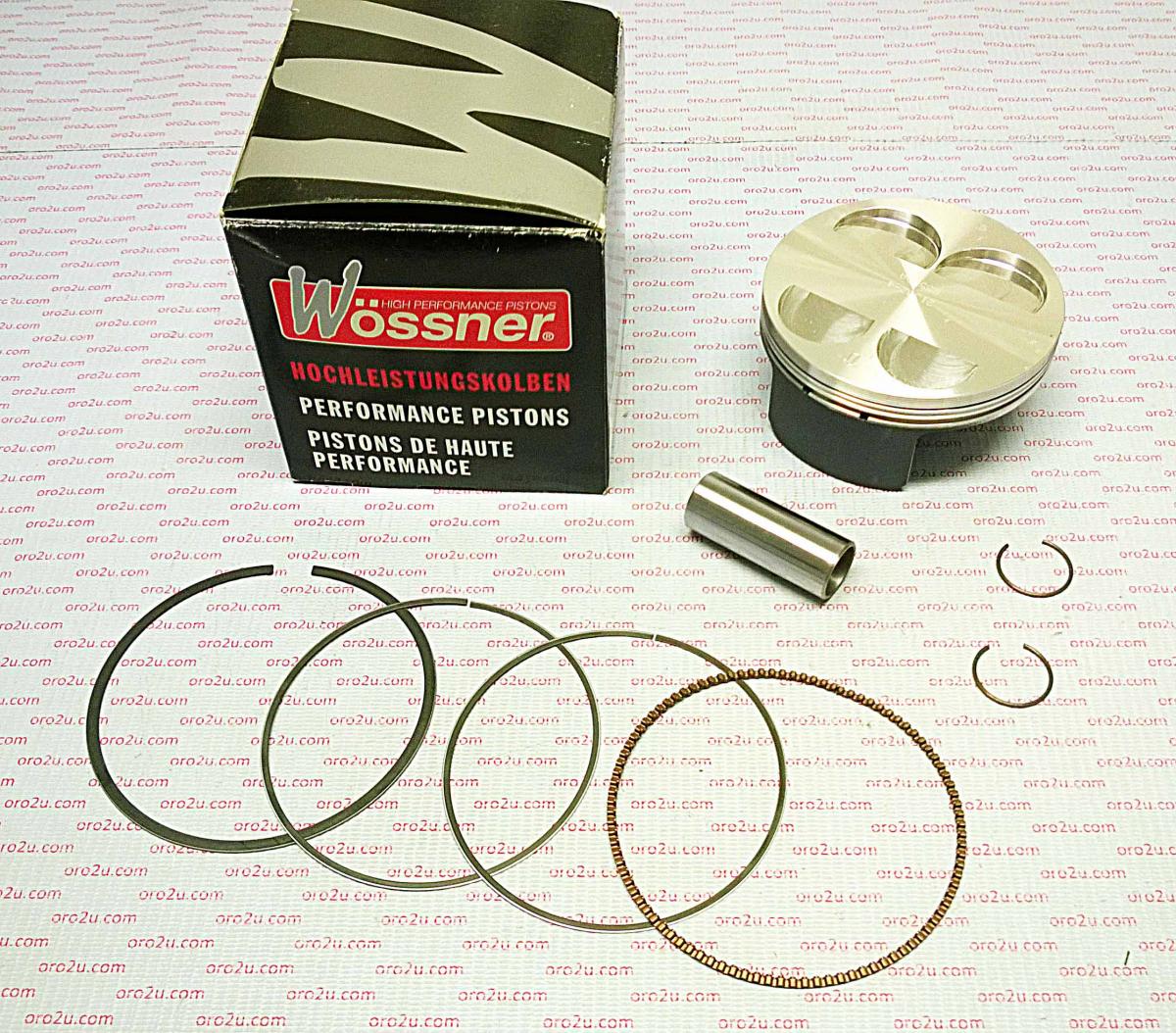

PISTON KIT 2002 450 HC 97.00, WOSSNER 8556DA HUSQVARNA
Wossner forged piston kit with 97.00 mm piston size and 449 cm³ displacement. Features a high compression design for increased efficiency, forged construction for enhanced durability, and an elliptical design that prevents localized pressure and piston collapse. Optimized heat transfer from the combustion chamber to cylinder walls and engineered for uniform bearing surface under heat expansion. Bore: 96.94 mm, Stroke: 60.80 mm, Clearance: 0.06 mm, Wossner Compression Ratio: OEM, OEM Compression Ratio: 12.00:1, Dome Volume: -5.10 cm³, Compression Height: 24.50 mm. Includes lock CW20, pin WP038, and ring set 970XSY. Manufactured in Germany.
- SKU
- 56-W018.A
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner High Compression Piston Kit
Upgrade your engine's performance with this Wossner forged piston kit. Engineered in Germany for superior strength and high compression, this kit is designed to optimize heat transfer from the combustion chamber to the cylinder walls, ensuring efficient operation and enhanced power output.
The unique elliptical design of the piston plays a crucial role in its performance. It ensures a uniform bearing surface even under the extreme heat expansion experienced during operation. This intelligent design minimizes localized pressure points and distributes thrust loads evenly across the piston skirt. The result is a significant reduction in the risk of piston collapse and a longer-lasting, more reliable engine component.
Key Features:
- Forged construction for exceptional durability and strength.
- Optimized heat transfer capabilities for improved engine efficiency.
- Elliptical design to prevent localized pressure and potential piston collapse.
- High compression design for increased power and performance.
Specifications:
- Bore: 96.94 mm
- Piston Size: 97.00 mm
- Displacement: 449 cm³
- Stroke: 60.80 mm
- Clearance: 0.06 mm
- Dome Volume: -5.10 cm³
- Compression Height: 24.50 mm
Included Components:
- Lock: CW20
- Pin: WP038
- Ring Set: 970XSY
