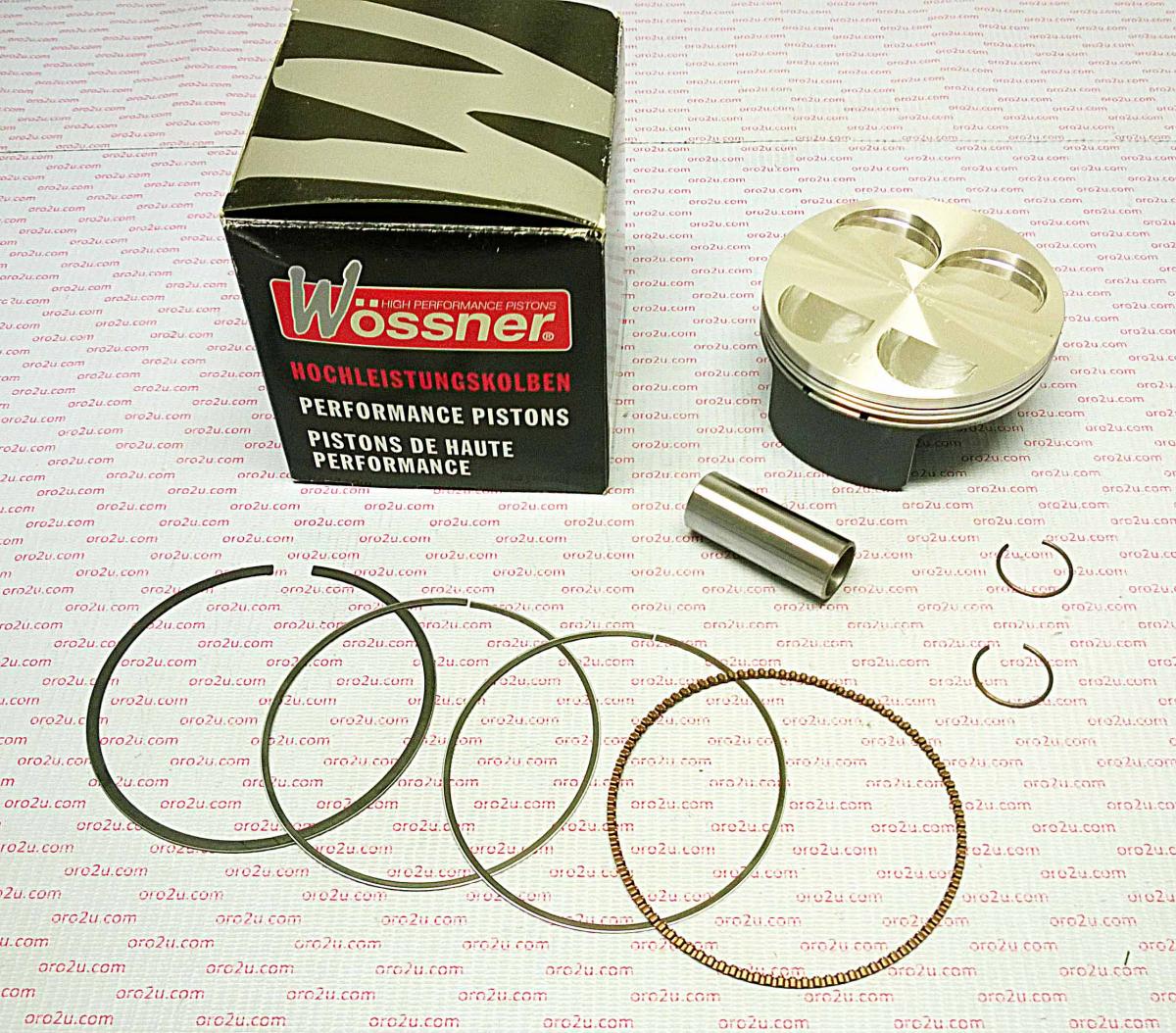

PISTON KIT 2002 450 HC 97.00, WOSSNER 8556DB HUSQVARNA
Wossner forged piston kit with a high compression design for superior strength and performance. Engineered for optimal heat transfer, it features an elliptical design to ensure a uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany, this piston kit has a bore of 96.95 mm, a piston size of 97.01 mm, a displacement of 449 cm³, and a stroke of 60.80 mm. It includes a clearance of 0.06 mm and a compression height of 24.50 mm. The Wossner compression ratio is OEM, while the OEM compression ratio is 12.00:1. The dome volume is -5.10 cm³. This kit includes lock CW20, pin WP038, and ring set 970XSY.
- SKU
- 56-W018.B
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit High Compression 97.00mm
This Wossner forged piston kit is engineered for superior strength and high compression performance. It is designed to optimize heat transfer from the combustion chamber to the cylinder walls, ensuring efficient operation. The unique elliptical design of the piston provides a uniform bearing surface even under heat expansion, effectively reducing localized pressure and distributing thrust loads evenly. This advanced design helps prevent piston collapse and ensures consistent performance.
Key Features:
- Forged construction for exceptional durability and strength.
- Optimized heat transfer characteristics for improved engine efficiency.
- Elliptical design to prevent localized pressure and potential piston collapse.
- High compression design contributes to increased engine power and responsiveness.
Specifications:
- Bore: 96.95 mm
- Piston Size: 97.01 mm
- Displacement: 449 cm³
- Stroke: 60.80 mm
- Clearance: 0.06 mm
- Compression Height: 24.50 mm
- Dome Volume: -5.10 cm³
Included Components:
- Lock: CW20
- Pin: WP038
- Ring Set: 970XSY
