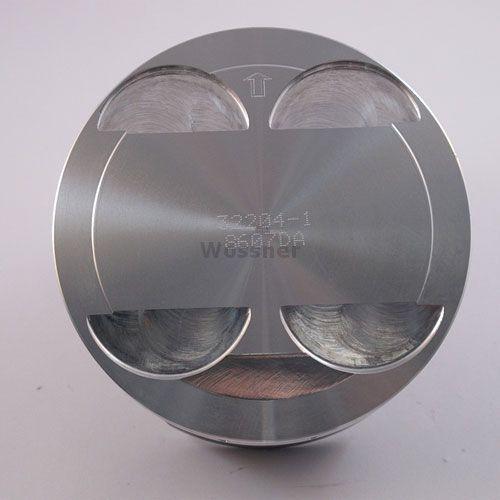

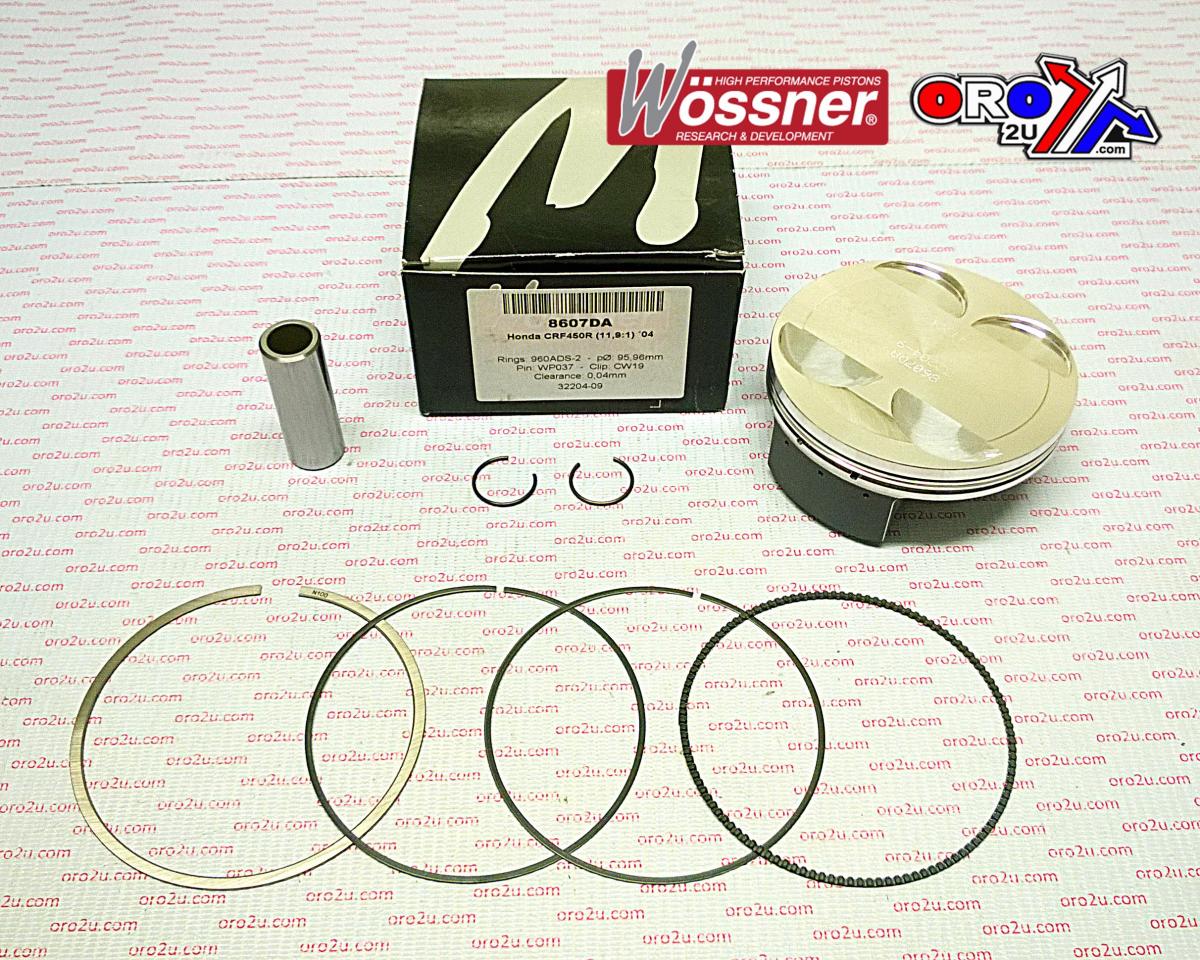

PISTON KIT 2004 CRF450 96mm, FORGED WOSSNER KIT 8607DB
Wossner forged piston kit with a 96.01mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Features a forged piston for superior strength and design, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface and even thrust load distribution. Manufactured in Germany. Specifications include a bore of 96.01mm (+0.01mm oversize), standard size piston (PN# 8607DB), lock part number CW19, pin part number WP037, ring set part number 960ADS-2, rod part number P4026, displacement of 449 cm³, stroke of 62.10mm, clearance of 0.04mm, Wossner compression ratio OEM, OEM compression ratio 11.90:1, dome volume of -1.70 cm³, and compression height of 24.00mm.
- SKU
- 56-W182.B
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit 96mm
Upgrade your engine's performance and durability with this Wossner forged piston kit. Engineered with precision in Germany, this kit is designed for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion. This advanced design reduces localized pressure and prevents piston collapse, ensuring reliable performance under demanding conditions.
Key Features:
- Forged Piston: Provides superior strength and a more robust design compared to cast pistons.
- Optimized Heat Transfer: Promotes efficient heat transfer to the cylinder walls, aiding in temperature regulation.
- Elliptical Design: Ensures a uniform bearing surface and even thrust load distribution, minimizing wear.
- Precision Manufacturing: Made in Germany to exacting standards for quality and longevity.
Specifications:
- Bore Size: 96.01mm (0.01mm oversize)
- Standard Size Piston Part Number: 8607DB
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4026
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 11.90:1
- Dome Volume: -1.70 cm³
- Compression Height: 24.00mm
