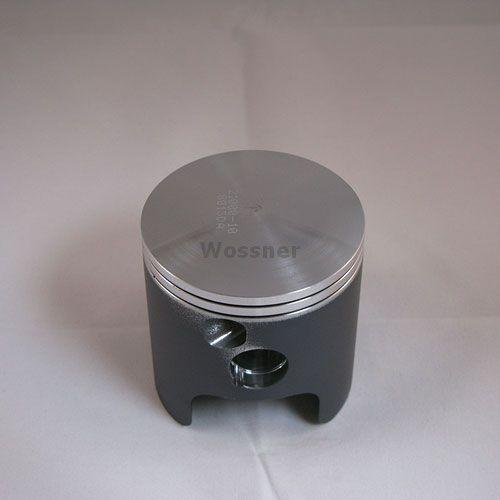

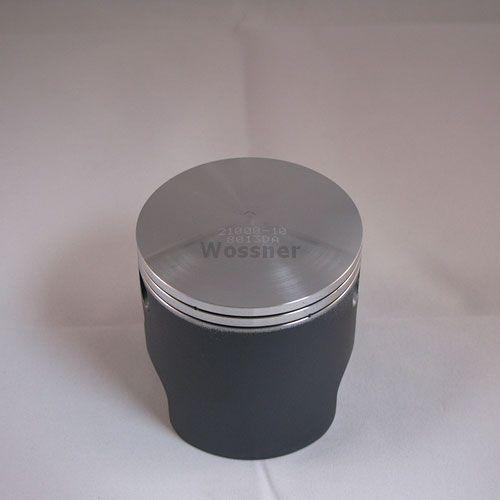

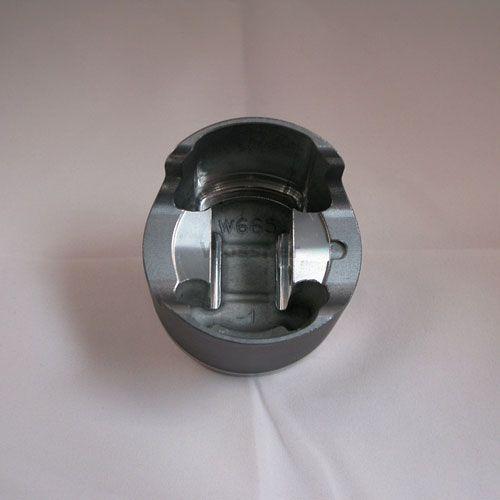

PISTON KIT 71-89 TS125 56.50, FORGED WOSSNER 8146D050

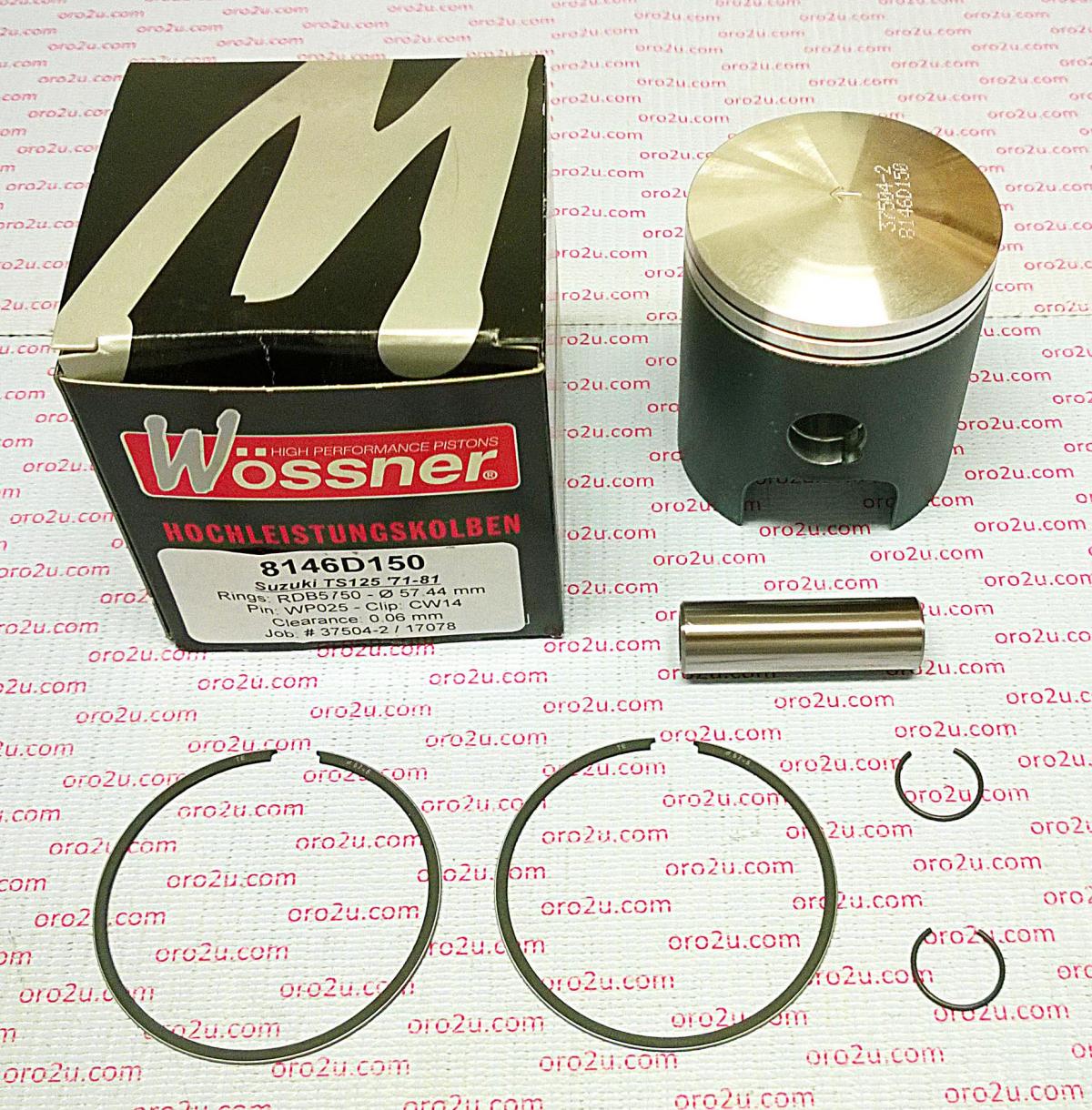

Wossner forged piston kit with a 56.50mm bore and 56.44mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications: Bore 56.50mm, Diameter 56.44mm, Display (cm³) 125, Stroke (mm) 50.00, Clearance (mm) 0.06, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Compression Height (mm) 29.00. Cross-reference OEM Part Numbers: Wossner Piston Suzuki TS125 (PN# 8146D050), Lock P/N: CW14, Pin P/N: WP025, Ring Set P/N: RSB5650 x 2.
- SKU
- 56-W257.050.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit 56.50mm - Superior Strength and Performance
Upgrade your motorcycle's engine with this high-performance Wossner forged piston kit. Engineered for durability and optimal power output, this piston is designed to withstand the demands of high-performance riding.
Key Features:
- Forged Construction: Provides superior strength and resistance to extreme temperatures and pressures compared to cast pistons.
- Optimized Heat Transfer: Designed for efficient heat dissipation, promoting consistent engine performance and longevity.
- Elliptical Piston Design: Ensures a uniform bearing surface under thermal expansion, reducing localized stress and evenly distributing thrust loads to prevent piston collapse.
- German Engineering: Manufactured in Germany, ensuring precision and quality craftsmanship.
Specifications:
- Bore Size: 56.50mm
- Piston Diameter: 56.44mm
- Displacement: 125cm³
- Stroke: 50.00mm
- Piston to Cylinder Clearance: 0.06mm
- Compression Height: 29.00mm
- Designed for 2-Stroke engines
This Wossner piston kit is a direct replacement, offering a significant upgrade in strength and reliability for your engine.
