PISTON KIT 73-78 CR125 56.50, FORGED WOSSNER 8151D050
Wossner forged piston kit with a 56.50mm bore, designed for increased durability and enhanced combustion chamber heat transfer. This piston features an elliptical design for even load distribution, reducing localized pressure and preventing collapse. Manufactured in Germany for high performance and reliability. Specifications include bore size: 56.50mm, standard bore: 56.44mm, displacement: 123 cm³, stroke: 64.40mm, clearance: 0.06mm, compression ratio: 2-Stroke, and compression height: 32.00mm. Piston part number: 8151D050.
- SKU
- 56-W339+0.50.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner Forged Piston Kit 56.50mm for Honda CR125/MT125 (1973-1978)
Enhance the performance and durability of your motorcycle with this Wossner forged piston kit. Precision engineered for strength and reliability, this piston is designed to improve combustion efficiency and withstand demanding riding conditions.
Key Features:
- Forged Construction: Offers superior strength and durability compared to cast pistons.
- Oversized Design: Includes a +0.50mm bore size for increased engine displacement and potential power gains.
- Elliptical Shape: Engineered with an elliptical design to ensure even load distribution across the piston's surface, preventing localized pressure points and reducing the risk of collapse.
- Optimized Heat Transfer: Features a design that promotes efficient heat transfer to the cylinder walls, aiding in temperature management.
- High-Quality Manufacturing: Made in Germany, ensuring exceptional craftsmanship and adherence to stringent quality standards.
Specifications:
- Bore Size: 56.50mm
- Standard Bore: 56.44mm
- Displacement: 123 cm³
- Stroke: 64.40mm
- Clearance: 0.06mm
- Compression Type: 2-Stroke
- Compression Height: 32.00mm

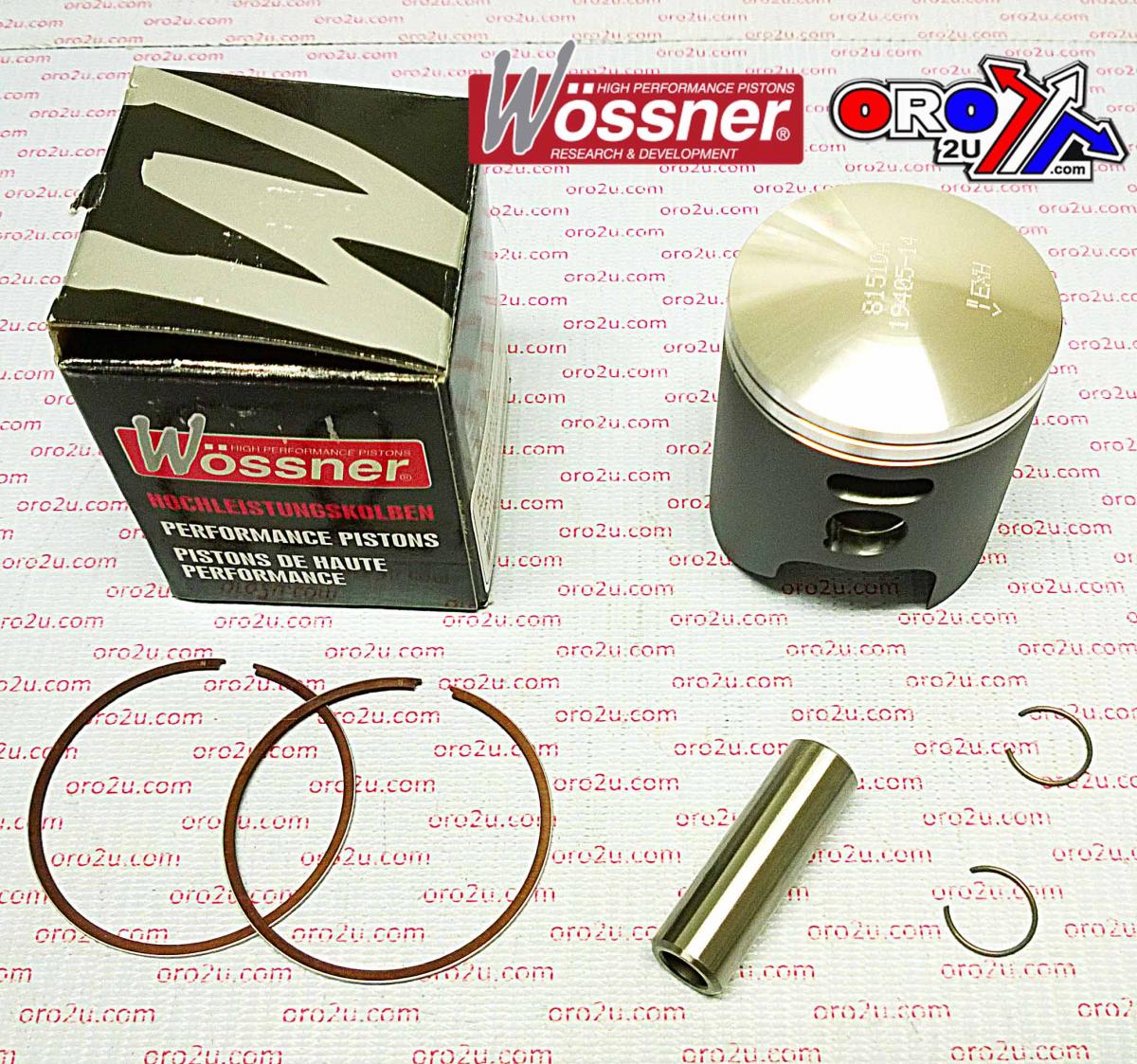

Component Part Numbers:
- Piston: 8151D050
- Ring Set: RSB5650 (x2)
- Clip: CW14 / Set
- Pin: WP025
