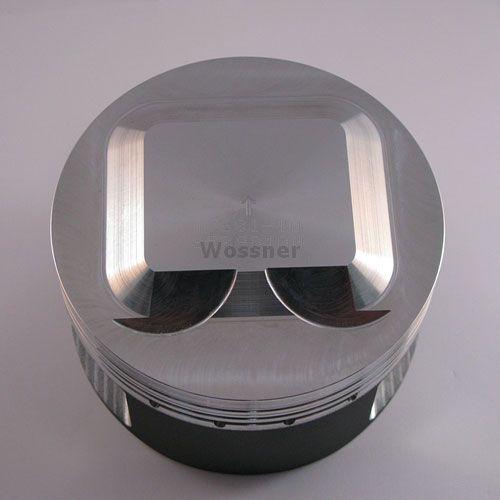

PISTON KIT 84-87 KLR600 98.00, FORGED WOSSNER 8509D200
Wossner forged piston kit with an 84-87 KLR600 98.00mm bore. This piston is designed for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany, it features a forged piston for superior strength and design, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface and even thrust load distribution. Bore: 98.00mm (+2.00mm oversize). Standard size piston (PN# 8509D200). Lock Part Number: CW23. Pin Part Number: WP008. Ring Set Part Number: 980XSY. Displacement: 564 cm³. Stroke: 62.10mm. Clearance: 0.05mm. Wossner Compression Ratio: OEM. OEM Compression Ratio: 12.80:1. Dome Volume: +0.90 cm³. Compression Height: 23.70mm. Theoretical Weight: 259.00g.
- SKU
- 56-W172+2.00
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - 98.00mm Bore
Upgrade your engine's performance and durability with this Wossner forged piston kit. Specifically engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, this piston is designed to reduce localized pressure and prevent piston collapse. Manufactured in Germany to exacting standards, Wossner pistons offer superior strength and precision.
Key Features:
- Forged piston construction for enhanced strength and a refined design.
- Engineered for improved heat transfer to cylinder walls for consistent operating temperatures.
- Features an elliptical design to ensure a uniform bearing surface and even thrust load distribution.
- Precision manufactured in Germany for exceptional quality and longevity.
Specifications:
- Bore Size: 98.00mm (2.00mm oversize)
- Standard Size Piston Part Number: 8509D200
- Lock Part Number: CW23
- Pin Part Number: WP008
- Ring Set Part Number: 980XSY
- Displacement: 564 cm³
- Stroke: 62.10mm
- Clearance: 0.05mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 12.80:1
- Dome Volume: +0.90 cm³
- Compression Height: 23.70mm
- Theoretical Weight: 259.00g
