PISTON KIT 86-87 RM80 48.00, WOSSNER 8227D050 SUZUKI MX

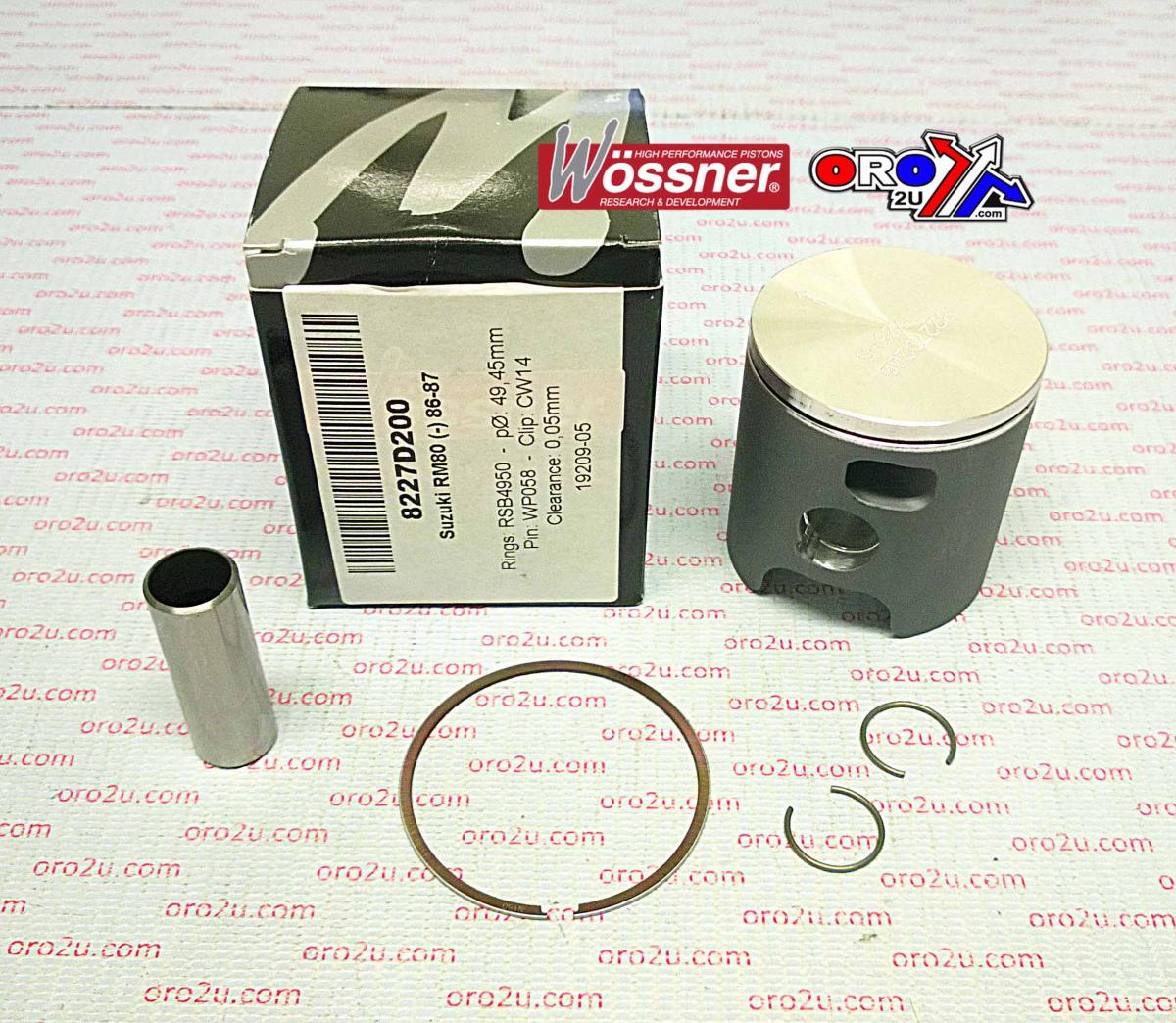

Wossner piston kit featuring a 48mm bore size (47.95mm actual) and designed for Suzuki RM80 models from 1986 to 1987. Forged in Germany, Wossner pistons are engineered for superior strength and thermal efficiency with an elliptical design that promotes even thrust load distribution and prevents localized pressure. Features forged construction for enhanced strength, elliptical design for even bearing surface under thermal expansion, and improved heat transfer. Specifications include 48mm bore size (47.95mm actual), 80 cm³ displacement, 46.80 mm stroke, 0.05 mm clearance, 27.00 mm compression height, and 2-stroke compression ratio (Wossner and OEM). Cross-reference OEM part numbers include Piston Kit 8227D050, Lock CW14, Pin WP058, Ring Set RSB4800. Part No. 56-W542+050.WO.
- SKU
- 56-W542+050.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner 48mm Piston Kit for Suzuki RM80 (1986-1987)
This Wossner piston kit features a 48mm bore size (47.95mm actual) and is engineered for superior strength and thermal efficiency. Forged in Germany, Wossner pistons utilize an elliptical design that promotes even thrust load distribution and prevents localized pressure, significantly reducing the risk of piston collapse during operation. This design also improves heat transfer from the combustion chamber to the cylinder walls.
Key Features:
- Forged construction for enhanced strength and durability.
- Elliptical piston design ensures even bearing surface under thermal expansion for optimal performance.
- Improved heat transfer from the combustion chamber to the cylinder walls for better thermal management.
- Designed and manufactured in Germany to exacting standards.
Specifications:
- Bore Size: 48mm (actual 47.95mm)
- Displacement: 80 cm³
- Stroke: 46.80 mm
- Piston Clearance: 0.05 mm
- Compression Height: 27.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
