PISTON KIT 87-05 KSF250 74.00, FORGE WOSSNER 8596DA ATV
Wossner 8596DA forged piston kit with a 74.00 mm bore size. This piston offers superior strength and heat transfer efficiency, manufactured in Germany. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse. Designed for 4-stroke engines. Specifications include an actual bore of 74.44 mm, stroke of 58.00 mm, clearance of 0.06 mm, compression height of 26.50 mm, dome volume of -0.40 cm³, and a compression ratio of 11.00:1 (OEM). Displacement is 249 cm³. Cross-reference OEM part numbers include Wossner 8596DA, Lock CW18, Pin WP031, and Ring Set 740XDS. Weight is 330 grams.
- SKU
- 56-W4418.WO.A
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KSF250 Mojave
Upgrade your Kawasaki KSF250 Mojave (Pro Series) with this high-performance Wossner forged piston kit. Engineered in Germany, this piston kit is designed for superior strength, durability, and efficient heat transfer, contributing to enhanced engine performance. The advanced elliptical design ensures even load distribution across the piston's surface, minimizing localized pressure points and preventing piston collapse for extended engine life.
Key Features
- Forged Construction: Provides exceptional strength and durability for demanding applications.
- Optimized Heat Transfer: Promotes efficient cooling and improved performance.
- Elliptical Design: Creates a uniform bearing surface, reducing wear and preventing piston collapse.
- 4-Stroke Engine Compatibility: Specifically designed for 4-stroke engine configurations.
Specifications
- Bore Size: 74.00 mm
- Actual Bore: 74.44 mm
- Stroke: 58.00 mm
- Clearance: 0.06 mm
- Compression Height: 26.50 mm
- Dome Volume: -0.40 cm³
- Compression Ratio: 11.00:1 (OEM)
- Displacement: 249 cm³
- Manufacturing Origin: Germany

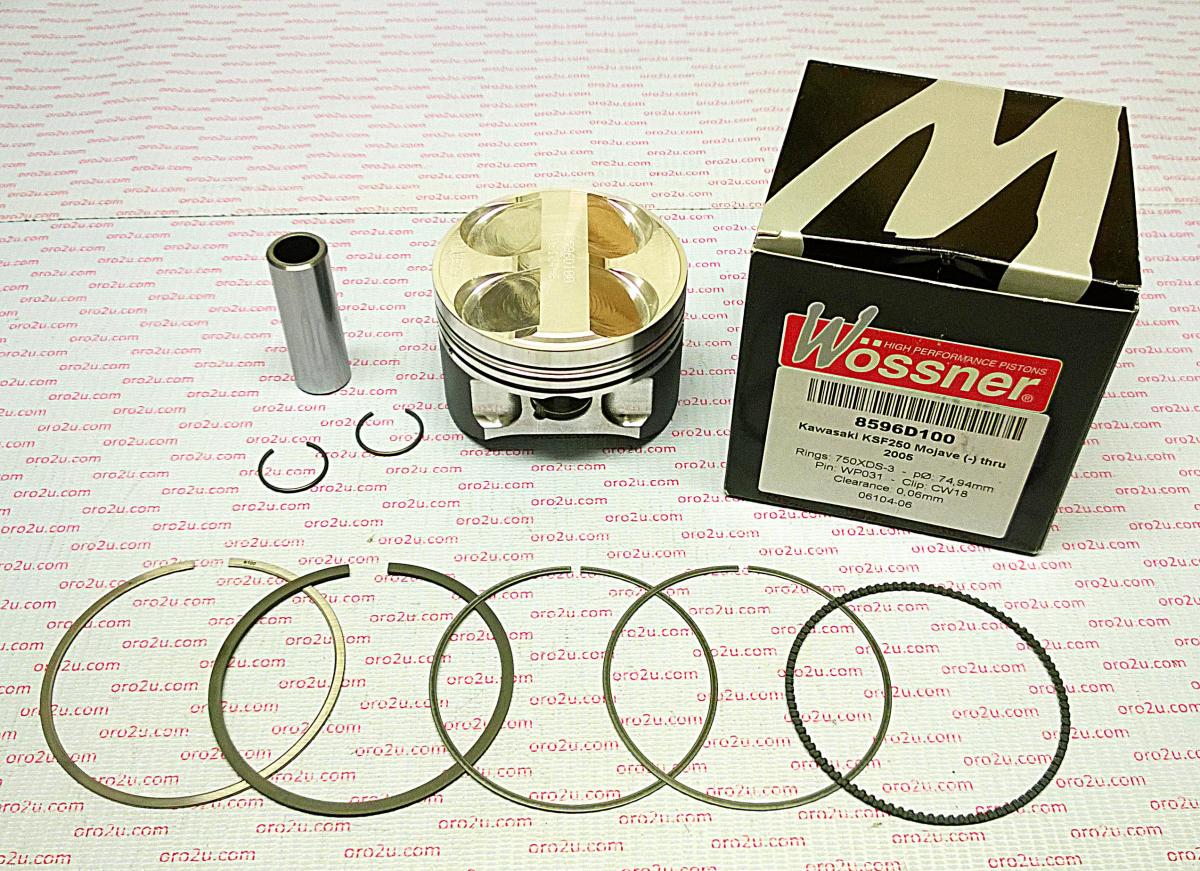

Component Part Numbers
- Wossner Part Number: 8596DA
- Lock Ring Part Number: CW18
- Pin Part Number: WP031
- Ring Set Part Number: 740XDS
