PISTON KIT 87-90 510cc 91.50, WOSSNER 8511DC HUSQVARNA

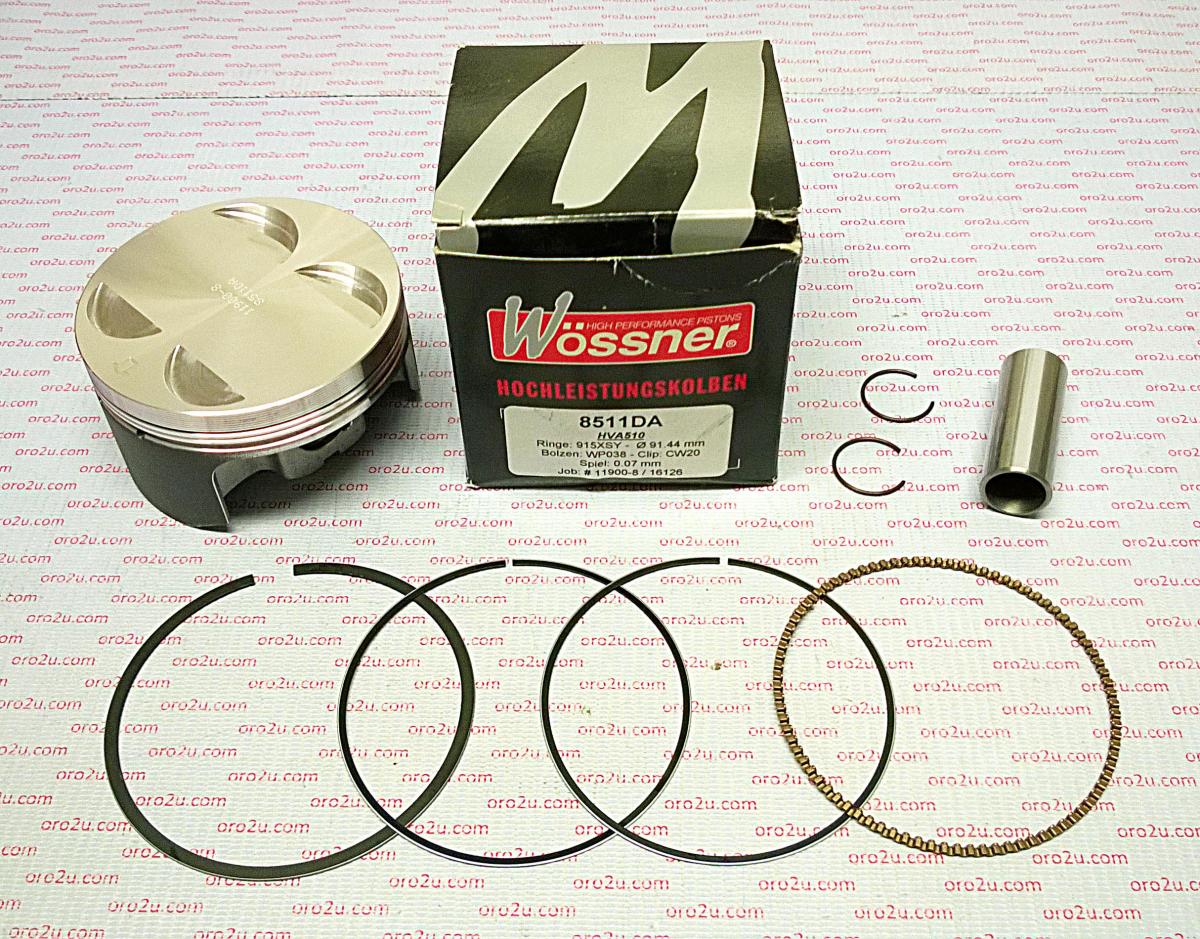

Wossner 91.50mm forged piston kit for Husqvarna TC 510, TE 510, and WRE 510 models from 1987 to 1990. This piston ensures efficient heat transfer for uniform expansion and reduced localized pressure. Its elliptical design distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, it meets high-quality standards for reliable performance. Bore Size: 91.50mm (91.46mm), Oversize: +0.02mm, Displacement: 503cc, Stroke: 60.80mm, Clearance: 0.06mm, Compression Ratio: OEM (11.40:1), Dome Volume: +1.90cm³, Compression Height: 24.50mm. Lock Part Number: CW20, Pin Part Number: WP038, Ring Set Part Number: 915XSY.
- SKU
- 56-W105.C
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

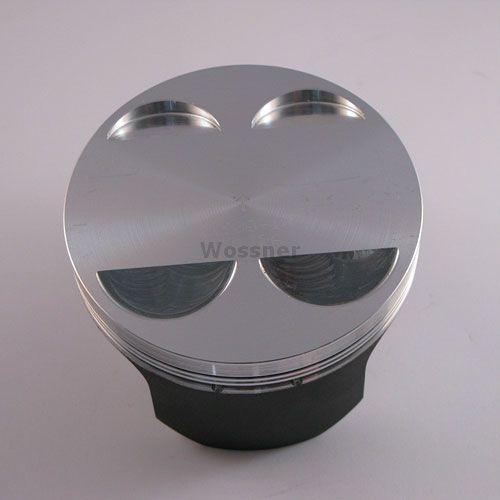

Wossner 91.50mm Forged Piston Kit
Enhance your engine's performance with this Wossner forged piston kit. Engineered for superior strength and durability, this precision-crafted piston is designed to optimize heat transfer to the cylinder walls, promoting uniform expansion and reducing localized pressure for consistent performance. The intelligent elliptical design ensures an even bearing surface, effectively distributing thrust loads and preventing piston collapse. Manufactured in Germany to exacting standards, this piston kit offers reliable and robust performance for your motorcycle.
Key Features:
- Wossner forged piston for exceptional strength and longevity.
- Optimized heat transfer for improved combustion efficiency.
- Elliptical design for uniform bearing and reduced localized pressure.
- Precision engineered to prevent piston collapse.
- High-quality German manufacturing.
Specifications:
- Bore Size: 91.50mm (91.46mm)
- Oversize: +0.02mm
- Displacement: 503cc
- Stroke: 60.80mm
- Clearance: 0.06mm
- Compression Ratio: OEM (11.40:1)
- Dome Volume: +1.90cm³
- Compression Height: 24.50mm
- Lock Part Number: CW20
- Pin Part Number: WP038
- Ring Set Part Number: 915XSY
