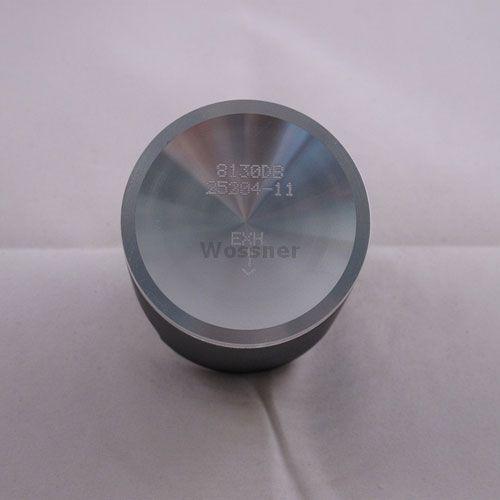

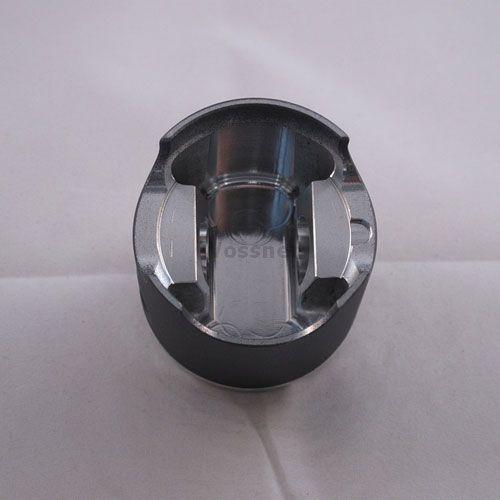

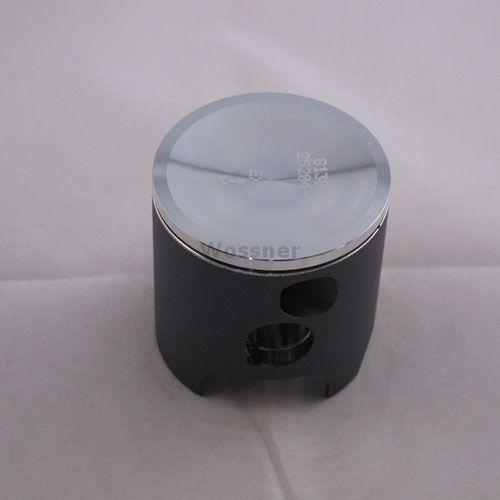

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
Wossner forged piston kit with a bore size of 56.01mm and actual bore diameter of 55.95mm. This kit is designed for durability and high performance, engineered for optimal heat transfer to cylinder walls for efficient combustion. The elliptical design prevents piston collapse by providing a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads. Manufactured in Germany, this 2-stroke piston kit includes lock part number CW16, pin part number WP036, ring set part number RSB5600, and rod part number P2033. Specifications include a displacement of 125 cm³, stroke of 50.60mm, clearance of 0.06mm, and compression height of 29.50mm. Theoretical weight is not specified.
- SKU
- 56-W208.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner 56.00mm Forged Piston Kit for High Performance
This Wossner forged piston kit is engineered for exceptional durability and superior high-performance output in your vehicle. It is meticulously designed to promote optimal heat transfer directly to the cylinder walls, ensuring more efficient combustion cycles. The advanced elliptical piston design creates a uniform bearing surface, even under extreme heat expansion. This innovative feature minimizes localized pressure points and evenly distributes thrust loads, effectively preventing piston collapse for extended component life. Crafted with precision in Germany, this piston kit adheres to the highest quality manufacturing standards.
Key Features:
- Forged Construction: Provides enhanced strength and significantly improved durability.
- Optimized Heat Transfer: Designed for efficient combustion and consistent engine performance.
- Elliptical Piston Design: Prevents piston collapse by ensuring uniform surface contact and load distribution.
- German Manufacturing: Built to rigorous quality standards for reliability.
Specifications:
- Piston Bore Size: 56.01mm
- Actual Bore Diameter: 55.95mm
- Displacement: 125 cm³
- Stroke: 50.60mm
- Clearance: 0.06mm
- Compression Height: 29.50mm

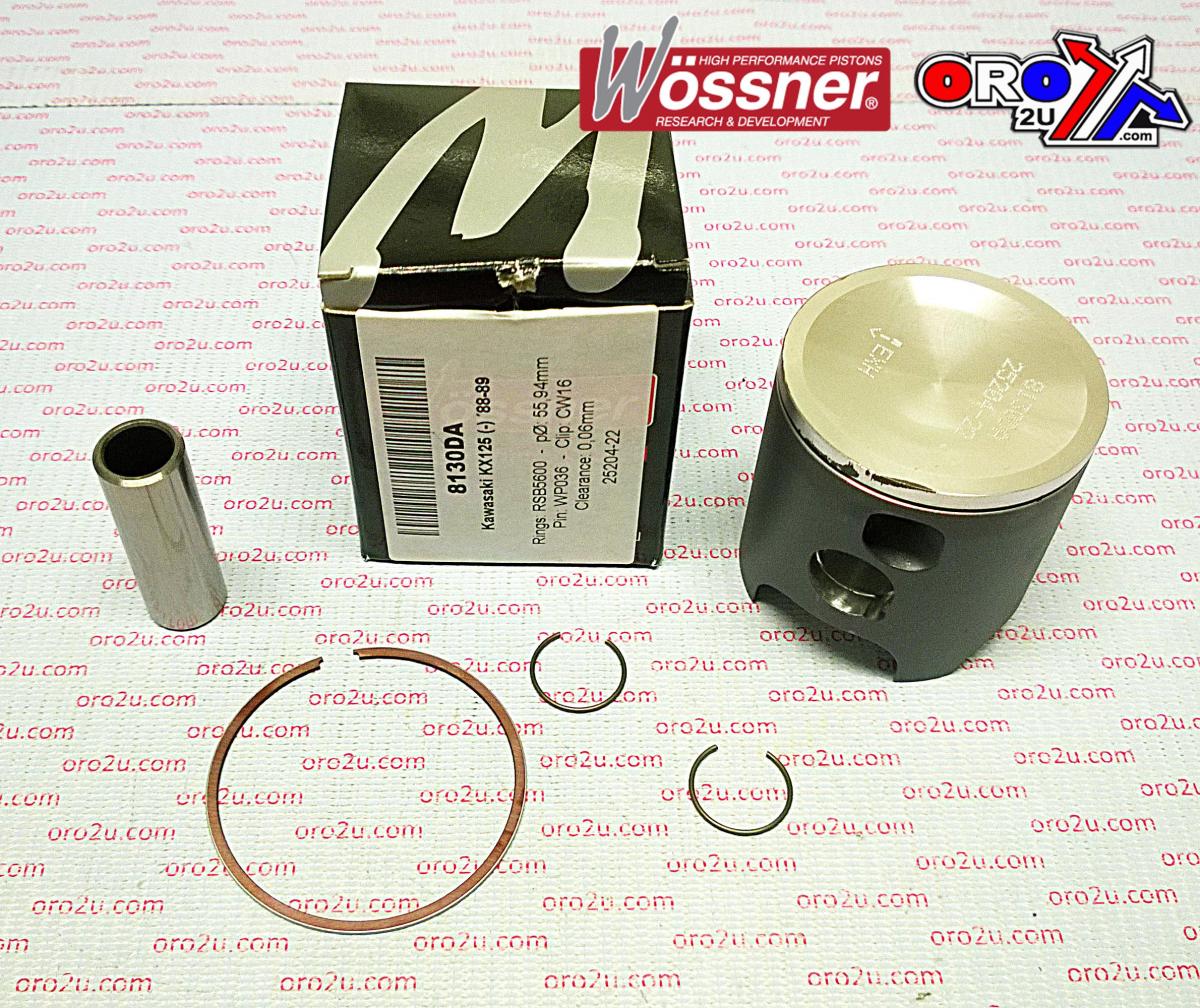

Included Components:
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5600
- Rod Part Number: P2033
