PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
Wossner forged piston kit. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Features: forged piston for enhanced strength and durability, optimized heat transfer for efficient combustion, elliptical design to prevent piston collapse, manufactured in Germany. Specifications: Bore Size 56.50mm, Actual Bore Diameter 56.44mm, Displacement 125 cm³, Stroke 50.60mm, Clearance 0.06mm, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Compression Height 29.50mm. Included Components: Lock Part Number CW16, Pin Part Number WP036, Ring Set Part Number RSB5650.
- SKU
- 56-W208_050.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit 56.50mm
This Wossner forged piston kit is engineered for superior durability and high-performance operation. Its advanced design promotes optimal heat transfer to the cylinder walls, contributing to efficient combustion and consistent engine performance.
The piston features an elliptical design that ensures a uniform bearing surface, even under extreme heat expansion. This design effectively reduces localized pressure and evenly distributes thrust loads, preventing piston collapse and ensuring longevity.
Key Features:
- Forged piston construction for enhanced strength and resilience.
- Engineered for optimized heat transfer, leading to efficient combustion.
- Elliptical piston design to prevent collapse under thermal stress.
- Manufactured to high-quality standards in Germany.
Specifications:
- Bore Size: 56.50mm
- Actual Bore Diameter: 56.44mm
- Stroke: 50.60mm
- Clearance: 0.06mm
- Compression Height: 29.50mm

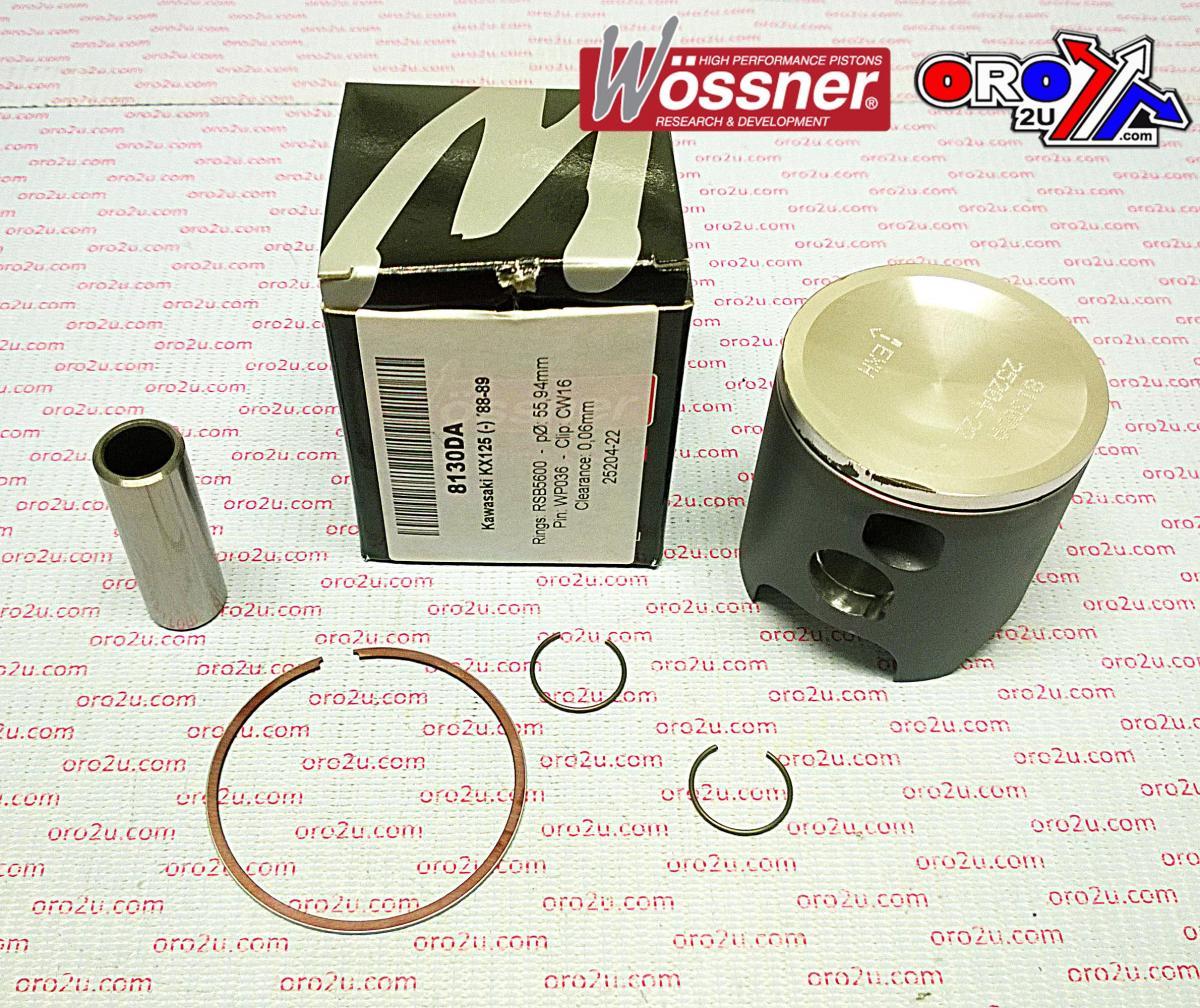

Included Components:
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5650
