PISTON KIT 89-95 RM250 67.50, WOSSNER 8022D050 SUZUKI MX
The Wossner 8022D050 piston features a 67.50mm bore (67.44mm actual size) and is forged in Germany for superior strength and durability. This piston is optimized to enhance heat transfer to the cylinder walls, and its elliptical structure helps maintain uniform bearing surfaces during thermal expansion, preventing localized pressure points. Specifications include a part number of 56-W642_050.WO, lock part number CW18, pin part number WP033, ring set part number RDB6700, displacement of 246 cm³, stroke of 70.80mm, clearance of 0.06mm, and compression height of 37.00mm.
- SKU
- 56-W642_050.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

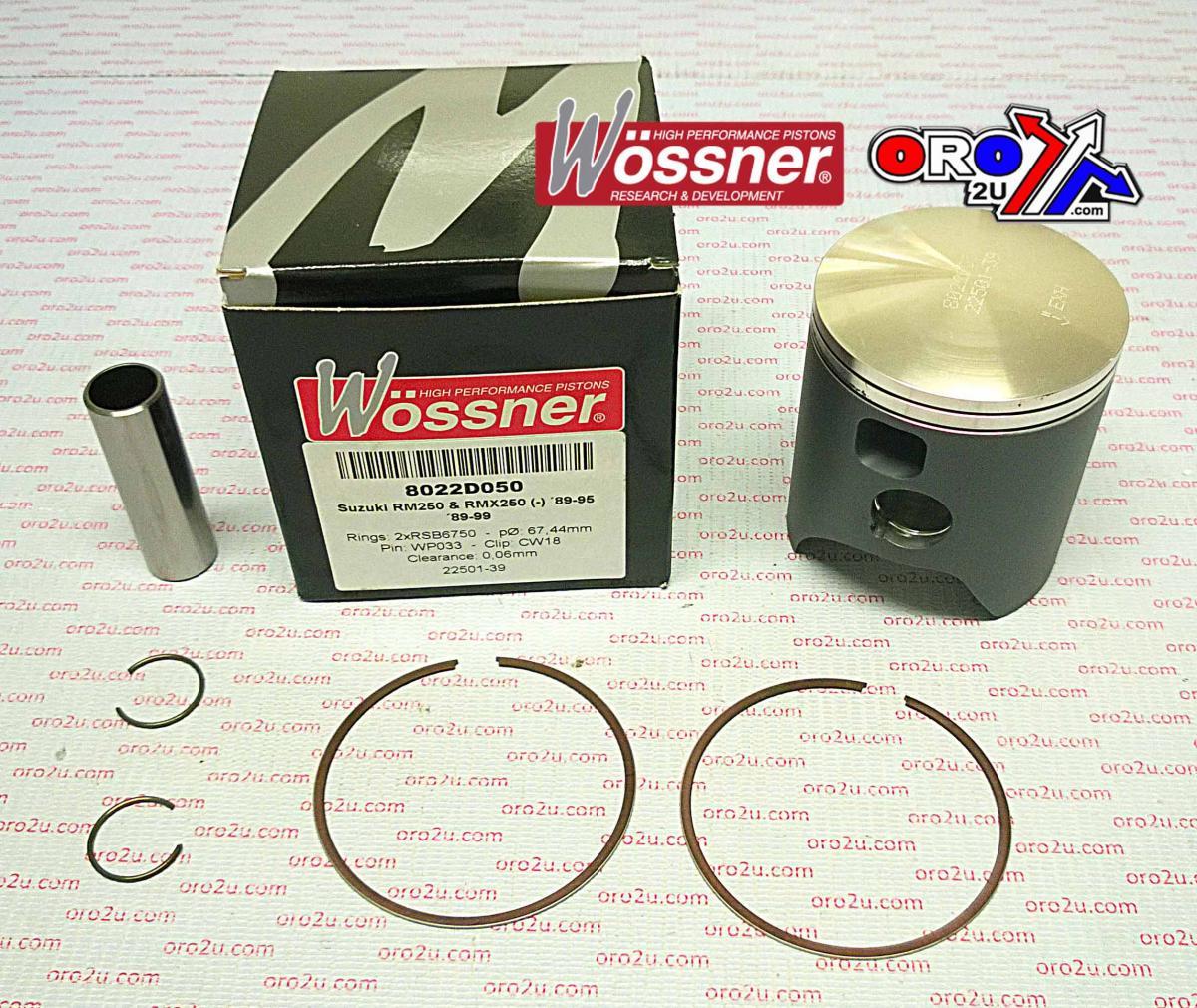

Wossner 8022D050 Piston Kit
The Wossner 8022D050 piston kit is engineered for high performance and exceptional strength, featuring a 67.50mm bore (actual size 67.44mm). This German-forged piston is designed to optimize heat transfer to the cylinder walls. Its specialized elliptical structure ensures uniform bearing surfaces during thermal expansion, effectively preventing localized pressure points and potential piston collapse, crucial for demanding motorcycle applications.
Key Features:
- Forged construction for superior strength and durability.
- Optimized design for efficient heat transfer to cylinder walls.
- Elliptical shape for uniform load distribution under heat expansion.
- Manufactured in Germany.
Specifications:
- Bore: 67.50mm (actual size 67.44mm)
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RDB6700
- Displacement: 246 cm³
- Stroke: 70.80mm
- Clearance: 0.06mm
- Compression Height: 37.00mm
