PISTON KIT 94-00 KTM125 56.25, WOSSNER 8029D200 FORGED
Wossner 56.25mm forged piston kit for KTM 125cc two-stroke models. Features include forged piston construction for strength and reliability, optimal heat transfer design, and an elliptical shape to prevent localized stress and piston collapse during heat expansion. Manufactured in Germany. Specifications: Bore size 56.19 mm, actual piston size 56.19 mm, 125cc displacement, 54.10mm stroke, 0.06mm clearance, 2-stroke compression ratio, 28.00mm compression height. Included components: Piston Wossner PN# 8029D200, Lock PN# CW15, Pin PN# WP032, Ring Set PN# RSB5625, Rod PN# P2056.
- SKU
- 56-W740_200.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION

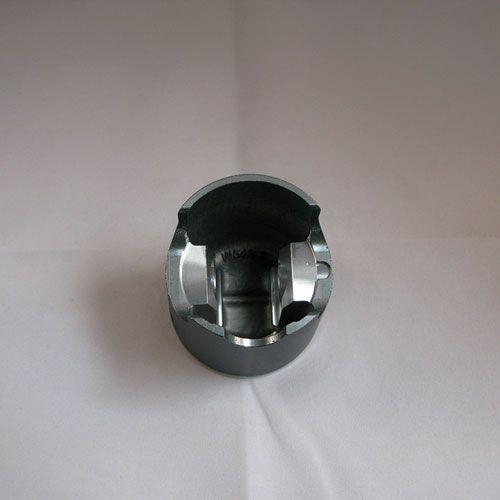

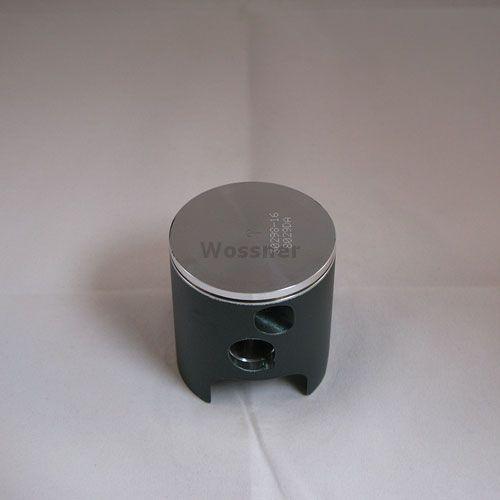

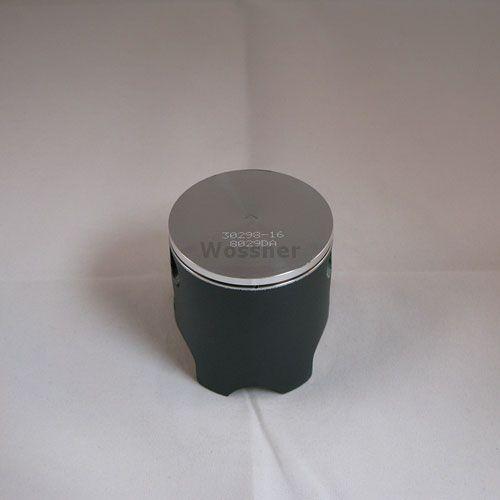

Wossner Forged Piston Kit for KTM 125cc
Upgrade your KTM 125cc engine with this high-performance Wossner forged piston kit. Engineered for durability and optimal performance, this kit features precision-forged construction and is designed to enhance heat dissipation for demanding applications.
Key Features:
- Forged piston construction ensures maximum strength and engine reliability.
- Designed for superior heat transfer from the combustion chamber to the cylinder walls.
- Elliptical piston design promotes uniform bearing surface during heat expansion, preventing localized stress and piston collapse.
- Manufactured in Germany to exacting standards for precision and quality.
Specifications:
- Bore size: 56.19 mm
- Actual piston size: 56.19 mm
- Engine displacement: 125cc
- Stroke: 54.10 mm
- Clearance: 0.06 mm
- Compression ratio: 2-stroke (Wossner and OEM compatible)
- Compression height: 28.00 mm

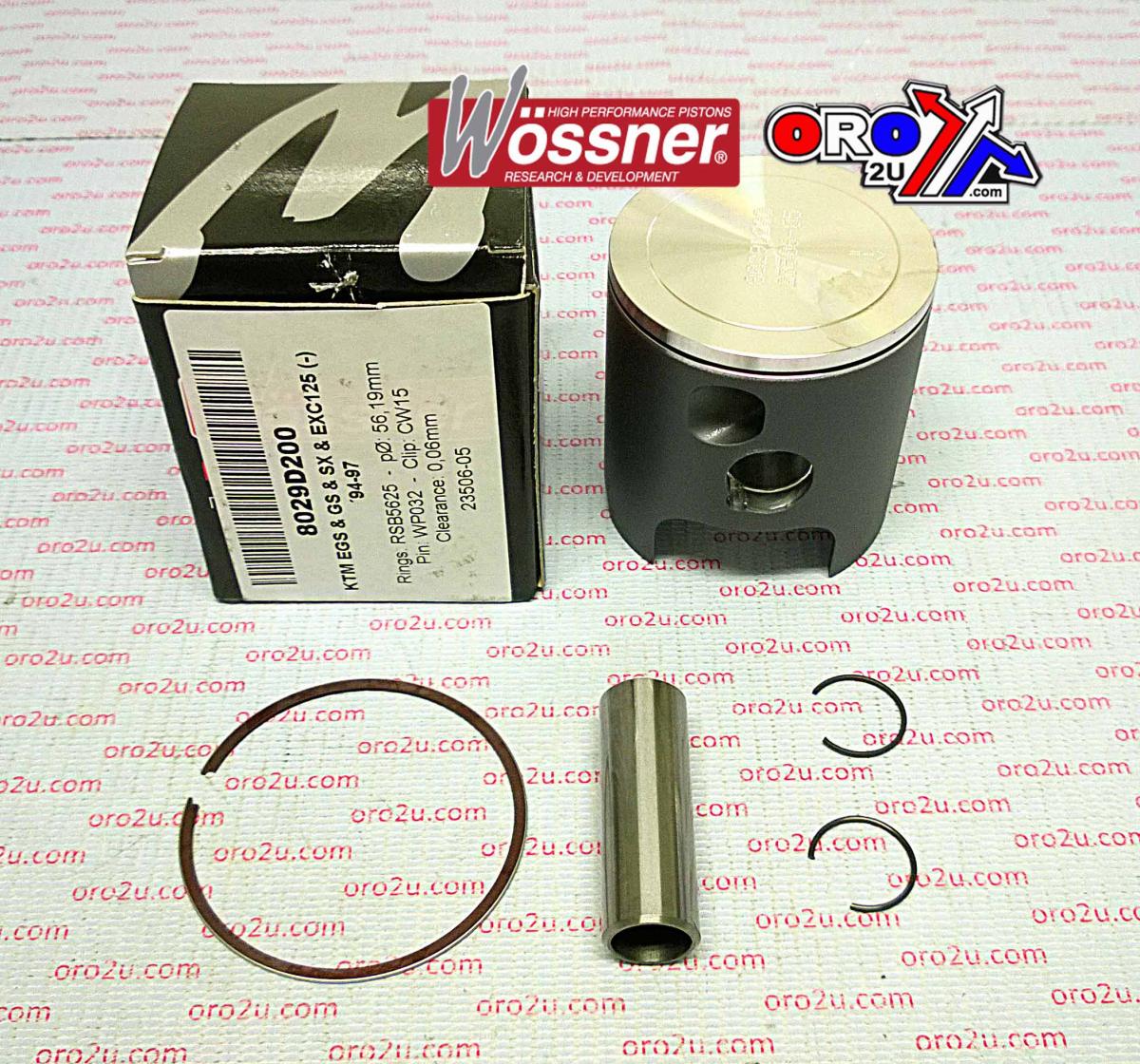

Included Components:
- Piston: Wossner PN# 8029D200
- Lock: PN# CW15
- Pin: PN# WP032
- Ring Set: PN# RSB5625
- Rod: PN# P2056
