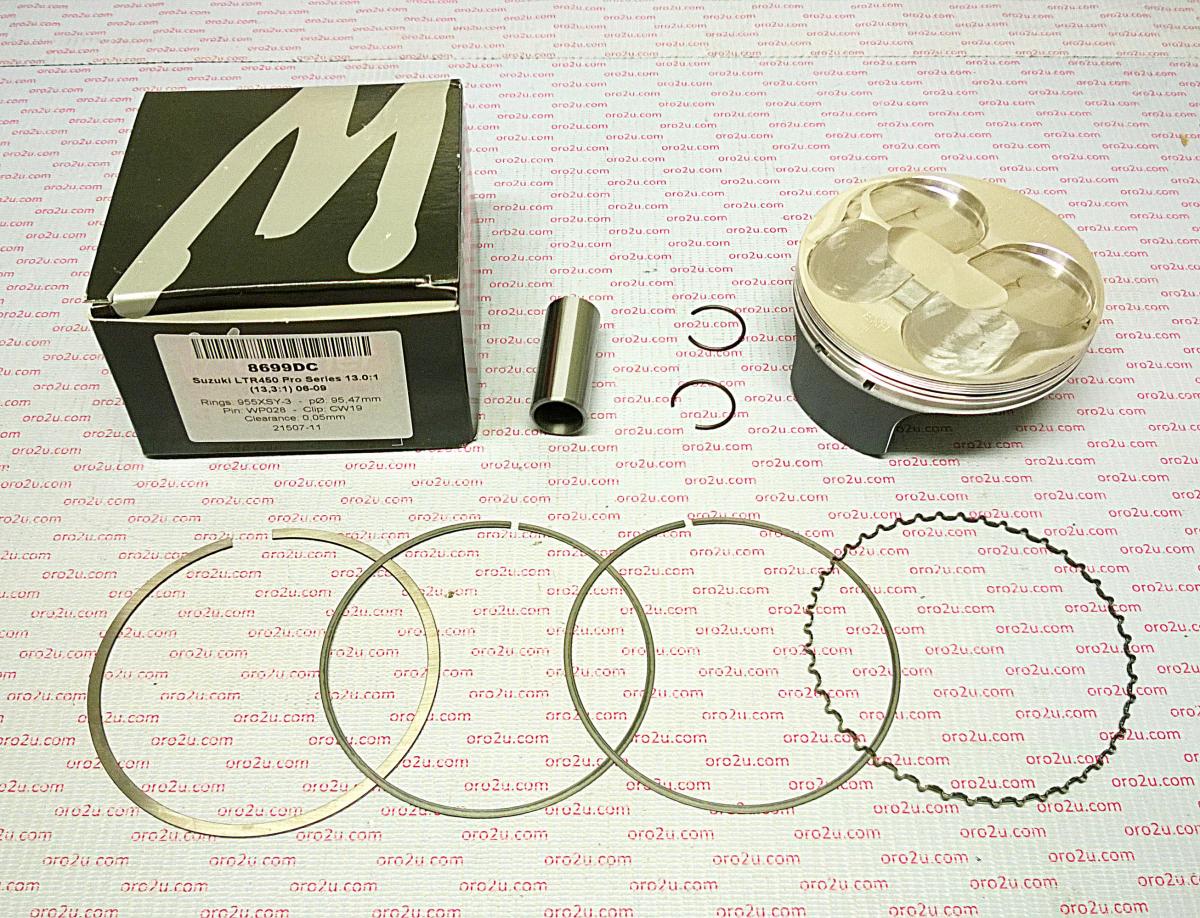

PISTON KIT LTR450 HC 100mm, WOSSNER 8699D450 13.3:1 COMP, SUZUKI
Wossner 8699D450 forged piston kit with a 100.00mm bore is designed for high-compression applications. Precision-crafted in Germany, this piston is built for enhanced strength, efficient heat transfer, and reliable performance. Its elliptical design ensures even load distribution during heat expansion, minimizing localized pressure and preventing piston failure. Features include a high-compression forged piston for durability and increased engine output, optimized for effective heat transfer to cylinder walls, and an elliptical design that promotes uniform pressure distribution during expansion, reducing localized stress and risk of piston collapse. Manufactured in Germany. Specifications: Bore 100.00 mm, Actual Bore Diameter 99.95 mm, Display 450 cm³, Hub Stroke 62.80 mm, Clearance 0.05 mm, Compression Height 24.50 mm, Dome Volume +2.30 cm³, Wossner Compression Ratio 13.30:1, OEM Compression Ratio 11.70:1. Cross-Reference OEM Part Numbers: Piston 8699D450, Lock CW19, Pin WP037, Ring Set 1000XSY, Rod P4011. Part No. 56-W4912.WO_450.
- SKU
- 56-W4912.WO_450
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged High Compression Piston Kit LTR450 100mm 13.3:1
Enhance your engine's performance and durability with the Wossner 8699D450 forged piston kit. Precision-engineered in Germany, this high-compression piston is designed for demanding applications, offering superior strength and efficient heat transfer.
The innovative elliptical design ensures uniform pressure distribution, even as the piston heats and expands. This intelligent design minimizes localized stress, significantly reducing the risk of piston failure and promoting reliable engine operation.
Key Features:
- High-compression forged piston for increased engine output and robust durability.
- Optimized for effective heat transfer to cylinder walls, aiding in temperature management.
- Elliptical design promotes uniform pressure distribution during expansion for consistent performance.
- Reduces localized stress and minimizes the risk of piston collapse.
- Manufactured with German engineering precision.
Specifications:
- Bore: 100.00 mm
- Actual Bore Diameter: 99.95 mm
- Display: 450 cm³
- Hub Stroke: 62.80 mm
- Clearance: 0.05 mm
- Compression Height: 24.50 mm
- Dome Volume: +2.30 cm³
- Wossner Compression Ratio: 13.30:1
- OEM Compression Ratio: 11.70:1
