PISTON KIT XR200 ATC200 80-02, WOSSNER 8813D200 67.50
Wossner forged piston kit with part number 8813D200. Bore size 67.50 mm, actual bore 67.46 mm, stroke 57.80 mm, clearance 0.04 mm, compression height 25.50 mm, dome volume +1.40 cm³, compression ratio 10.00:1 (OEM), displacement 195 cm³. Features forged construction for enhanced durability and strength, optimized heat transfer for improved performance, and an elliptical design for uniform bearing surface and reduced wear. Designed for 4-stroke engines. Manufactured in Germany. Includes lock P/N CW15, pin P/N WP011, and ring set P/N 675XKS.
- SKU
- 56-W4156_2.0.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit for 4-Stroke Engines
Upgrade your motorcycle's performance and durability with this Wossner forged piston kit. Expertly manufactured in Germany, this piston is engineered for superior strength and efficient heat transfer, crucial for demanding 4-stroke applications. Its advanced elliptical design ensures uniform load distribution across the piston's surface, effectively reducing localized pressure points and preventing premature wear or collapse.
Key Features:
- Forged Construction: Provides exceptional strength and durability for extended engine life and higher performance potential.
- Optimized Heat Transfer: Promotes efficient cooling, leading to improved performance and reliability under various operating conditions.
- Elliptical Design: Creates a uniform bearing surface, minimizing wear and ensuring consistent piston operation.
- Designed for 4-Stroke Engines: Specifically engineered to meet the demands of 4-stroke powerplants.
Specifications:
- Bore Size: 67.50 mm
- Actual Bore: 67.46 mm
- Stroke: 57.80 mm
- Clearance: 0.04 mm
- Compression Height: 25.50 mm
- Dome Volume: +1.40 cm³
- Compression Ratio (OEM): 10.00:1
- Displacement: 195 cm³
- Manufacturing Origin: Germany

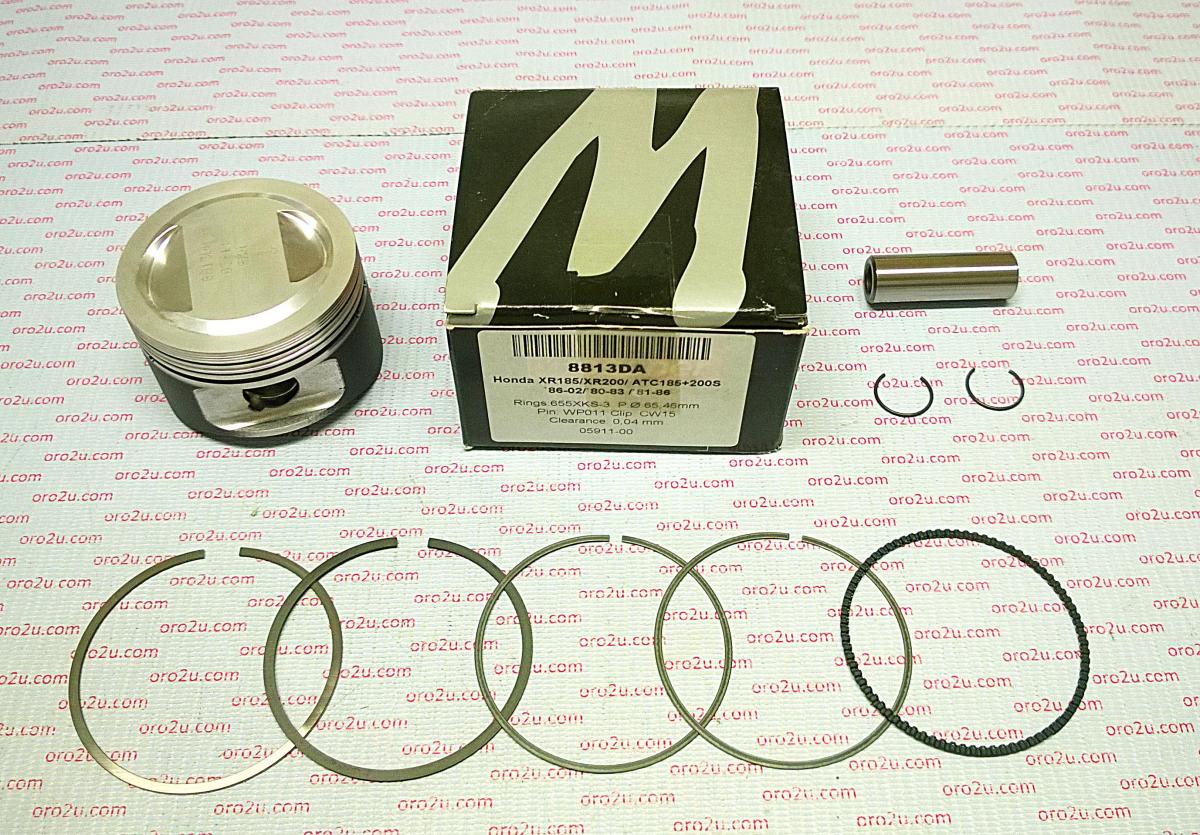

Component Information:
- Wossner Part Number: 8813D200
- Lock Ring Part Number: CW15
- Piston Pin Part Number: WP011
- Ring Set Part Number: 675XKS
