PISTON KIT XR400 TRX400 86.00, FORGED WOSSNER 8604D100
Wossner forged piston kit with an 86mm bore. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse. Features forged construction for superior strength and durability, optimized heat transfer to cylinder walls, elliptical design for uniform bearing surface under heat expansion, and increased compression ratio for improved engine performance. Specifications: Bore 86mm (85.94mm actual), Displacement 397 cm³, Stroke 70.00mm, Clearance 0.06mm, Wossner Compression Ratio 11.00:1, OEM Compression Ratio 10.00:1, Dome Volume +3.20 cm³, Compression Height 26.20mm. Cross-reference OEM Part Numbers: Wossner Piston 8604D100, Lock CW20, Pin WP052, Ring Set 860XSY, Rod P4021.
- SKU
- 56-W4606+100.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner 86mm Forged Piston Kit for Honda XR400 and TRX400
Upgrade your motorcycle or ATV's performance with this high-quality Wossner forged piston kit. Engineered for superior strength, durability, and heat transfer, this piston is manufactured in Germany to exacting standards. The advanced elliptical design ensures uniform bearing surface distribution, even under extreme operating temperatures, minimizing localized pressure and preventing piston failure. Experience a noticeable increase in engine performance due to the enhanced compression ratio.
Key Features:
- Forged construction for exceptional strength and longevity
- Optimized heat transfer for efficient cooling
- Elliptical piston design for consistent bearing surface under load
- Increased compression ratio for improved power output
- Premium German engineering and manufacturing
Specifications:
- Bore Size: 86.00mm (85.94mm actual)
- Displacement: 397 cm³
- Stroke: 70.00mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: 11.00:1
- OEM Compression Ratio: 10.00:1
- Dome Volume: +3.20 cm³
- Compression Height: 26.20mm

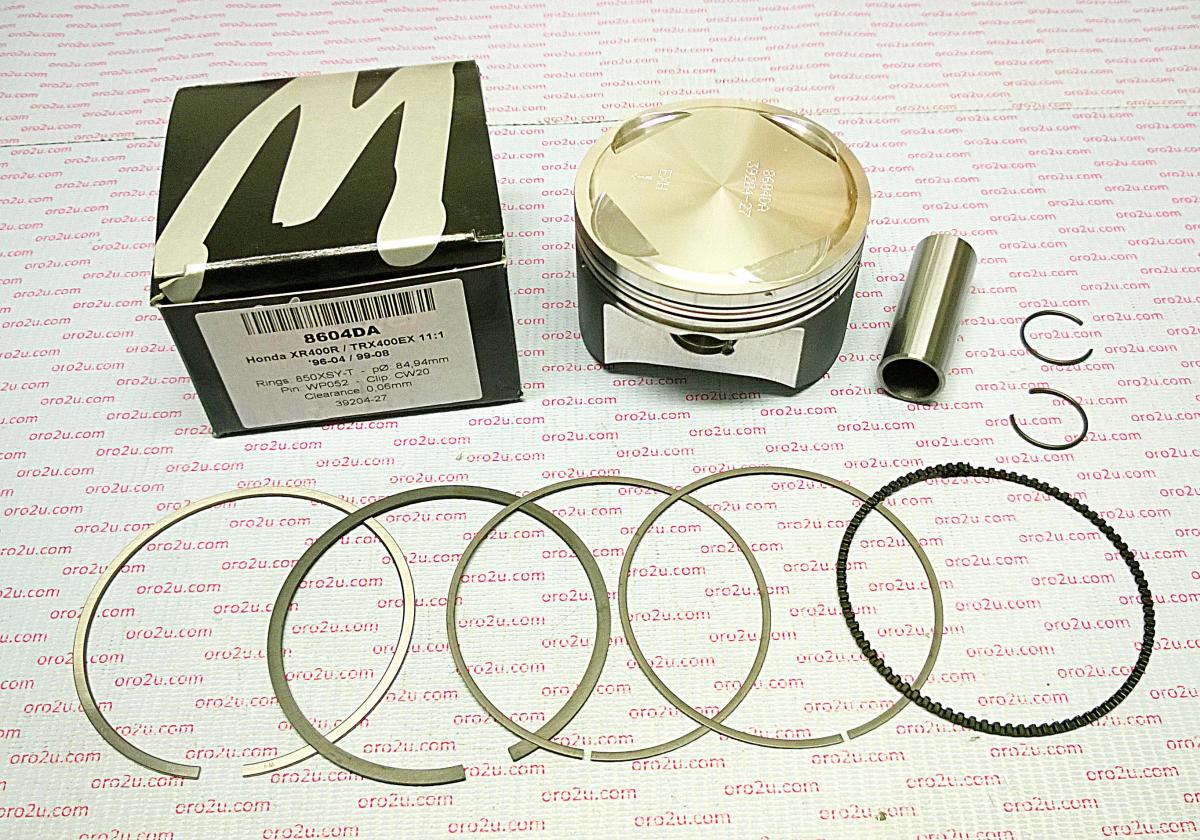

Included Components:
- Wossner Piston: 8604D100
- Lock: CW20
- Pin: WP052
- Ring Set: 860XSY
- Rod: P4021
