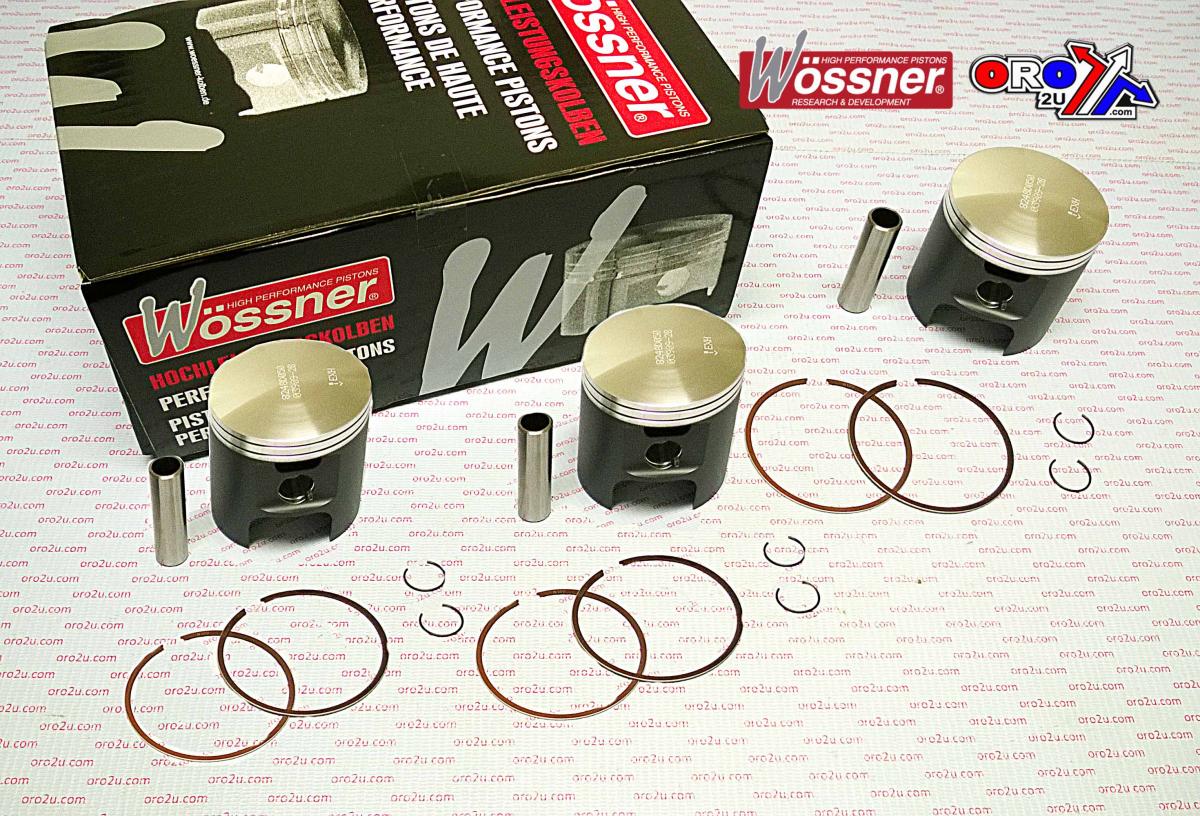

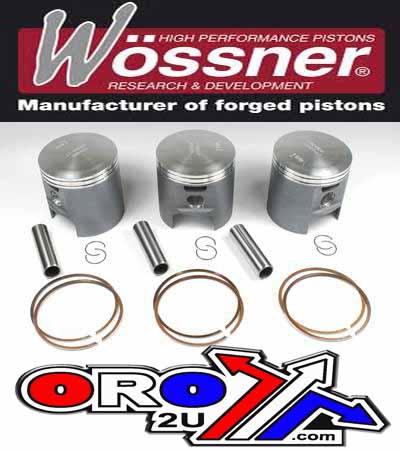

PISTON KIT/3 750 TRIPLE 71.50, WOSSNER K8248D050-3 1972-75
Wossner K8248D050-3 piston kit is a +0.50mm oversize forged piston set with a 71.50mm bore for Kawasaki 750cc triple-cylinder two-stroke motorcycles. This kit features high-performance forged pistons with PTFE-coated skirts, an elliptical design for uniform heat expansion and load distribution, and is engineered for optimal combustion chamber heat transfer. Made from 4032 T6 alloy for precise piston-to-bore tolerance, it includes piston pins, clips, and rings. Specifications include a measured bore of 71.43mm, 747 cm³ displacement, 63.00mm stroke, 0.07mm clearance, 32.00mm compression height, and a 2-stroke compression ratio. The kit contains three pistons and is made in Germany. Cross-reference OEM part numbers include Clip CW16, Piston Pin WP027, and Ring Set RSB7150.
- SKU
- 56-W9868.050.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - 71.50mm Oversize for 750cc Triple Cylinder Engines
Elevate the performance and longevity of your motorcycle's engine with the Wossner K8248D050-3 Piston Kit. This high-performance, forged piston set is meticulously engineered to provide superior durability and efficient thermal management. Precision manufactured in Germany, this kit is designed as a +0.50mm oversize replacement, ensuring a perfect fit and optimal performance for specific 750cc triple-cylinder two-stroke engines.
Key Features:
- Forged high-performance pistons featuring PTFE-coated skirts for reduced friction.
- Elliptical piston design promotes uniform heat expansion and optimal load distribution.
- Engineered for enhanced combustion chamber heat transfer to the cylinder walls.
- Constructed from durable 4032 T6 alloy, allowing for precise piston-to-bore tolerances.
- Comprehensive kit includes three pistons, piston pins, clips, and piston rings for a complete installation.
Specifications:
- Bore Size: 71.50mm (+0.50mm oversize)
- Measured Bore: 71.43mm
- Displacement: 747 cm³
- Stroke: 63.00mm
- Clearance: 0.07mm
- Compression Height: 32.00mm
- Quantity: 3 pistons per kit
- Manufacturing Origin: Germany
